SKU: 26757
Part Number: 6.25inch 720x1560 LCD
Brand: Waveshare
Korisne informacije:

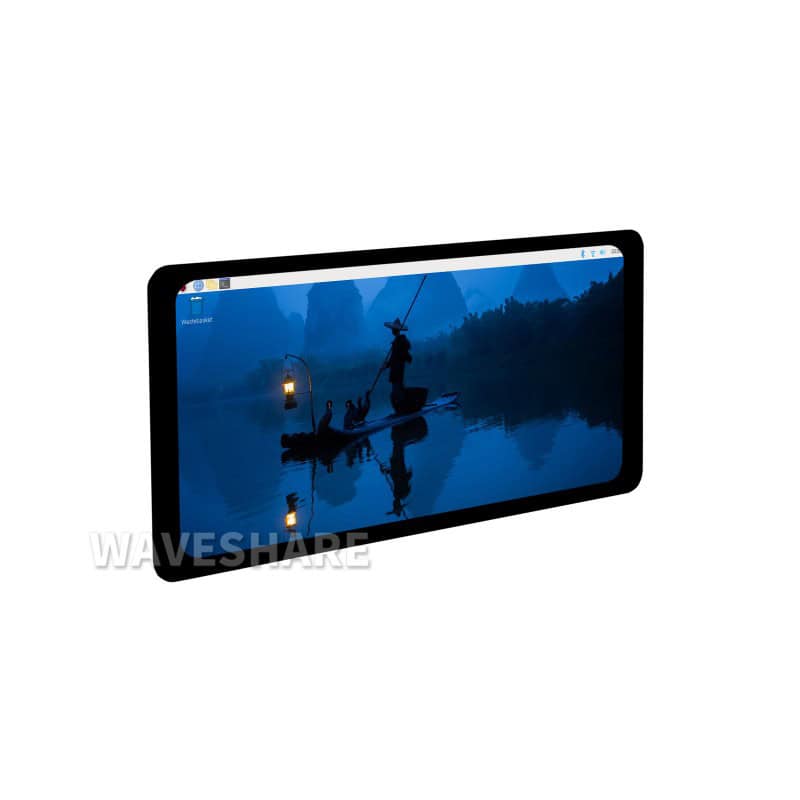

www.waveshare.com/wiki/6.25inch_720x1560_LCD 6.25inch Capacitive Touch Display, 720×1560, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS Panel, 5-Point Touch
6.25″ Capacitive Touch Display High Resolution | Multi-Point Touch | Full Color
The display orientation is portrait by default, 720×1560 resolution (H×V). Change the software config for landscape display. Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series Board
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Series Board
Working With PC
for reference only, the above controller boards or host are NOT included IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 5-Point Touch
- up to 5-Point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports Backlight Adjustment Via Software

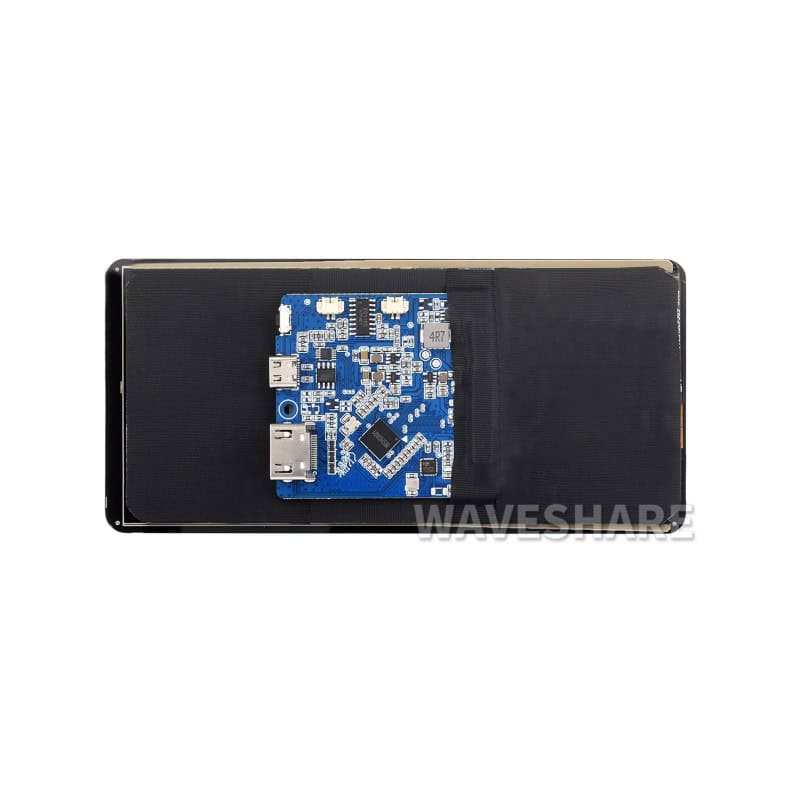

Interface Introduction
Dimensions
PACKAGE CONTENT
Weight: 0.21 kg
- 6.25inch 720x1560 LCD ×1
- Capacitive touch pen ×1
- HDMI to Micro HDMI adapter ×1
- USB-A to Type-C cable ~1m ×1
- HDMI flat cable ~1m ×1
