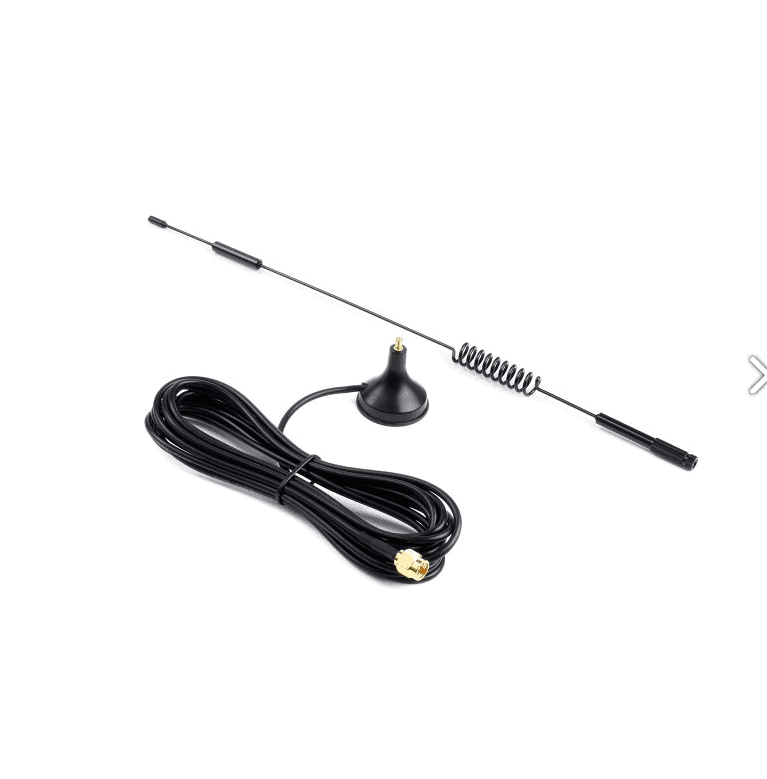

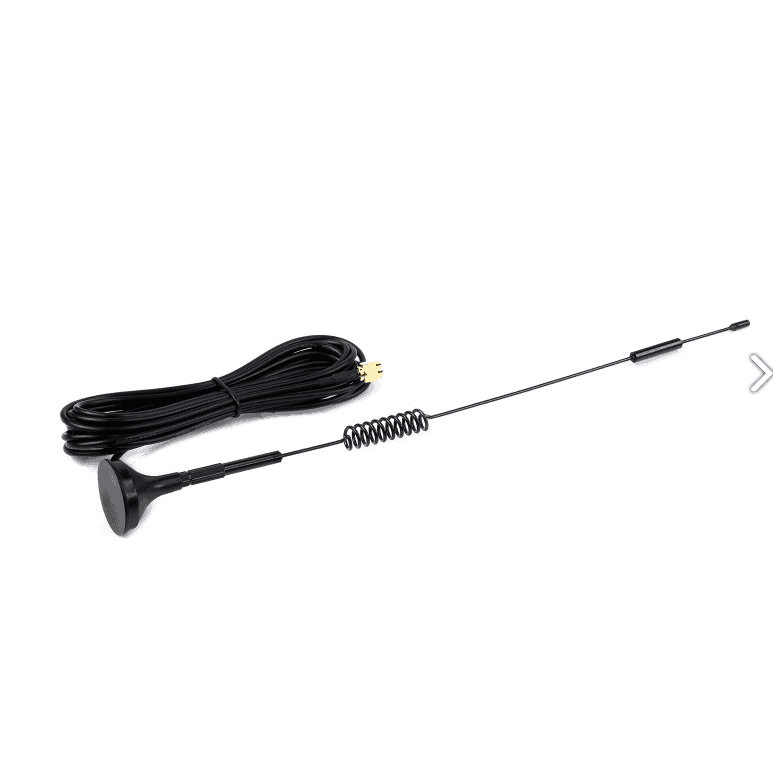

4G/3G/2G/LPWA Outdoor Antenna
4G/3G/2G/LPWA Outdoor Antenna
4G/3G/2G/LPWA Outdoor Antenna

4G/3G/2G/LPWA Outdoor Antenna

Šifra: w21371
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
349,00 RSD
Cena sa PDV
u korpu

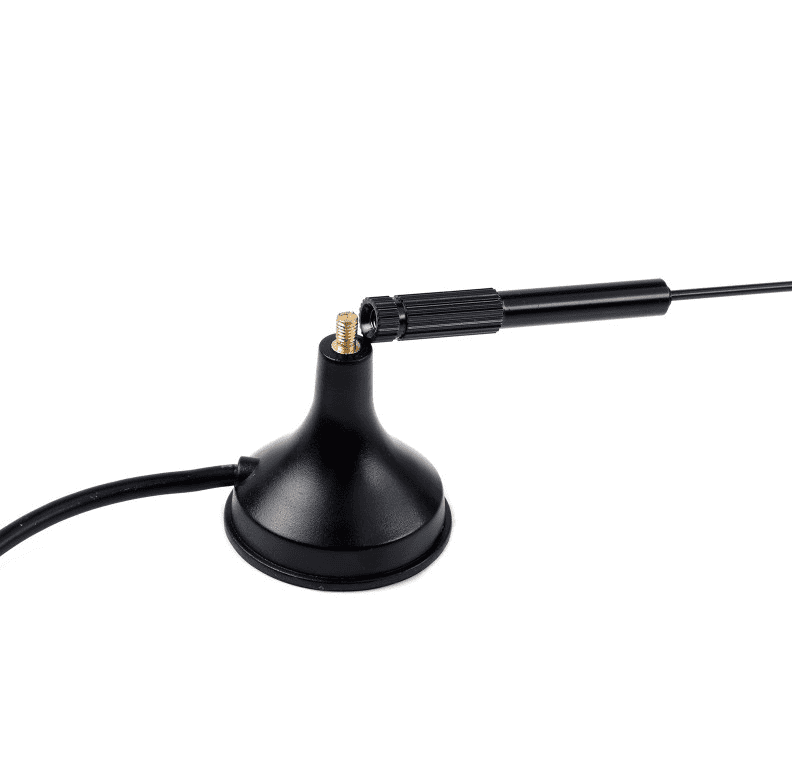

Support, High Gain, With Magnetic Base




Specifications














































NETWORK SUPPORT 4G/3G/2G/LPWA GAIN 12DBI
FREQUENCY RANGE 700~2700 MHz CONNECTOR SMA inner pin
BAND WIDTH 2300 MHz INPUT POWER 10W MAX
OUTPUT IMPEDANCE 50Ω ANTENNA HEIGHT 32 cm
VSWR ≤ 1.5 CABLE LENGTH ~3m
POLARISATION Vertical COLOR Black
WATERPROOF IP65 OPERATING TEMP. -40℃ ~ +85℃


Design Details


4G Antenna Connection Example

Working With SIM7600G-H 4G DTU



for reference ONLY, the SIM7600G-H 4G DTU is not included.

Outline Dimensions



PACKAGE CONTENT



Weight: 0.056 kg


  1. 4G/3G/2G/LPWA Outdoor Antenna x1




Masa po jedinici mere:0.057 Kg / Kom
Kategorija:mrežna oprema
Brend:Waveshare
Naziv:4G/3G/2G/LPWA Outdoor Antenna
Šifra:w21371
Uvoznik:MALINA 314 doo, Beograd
Telefon:061-640-2013
