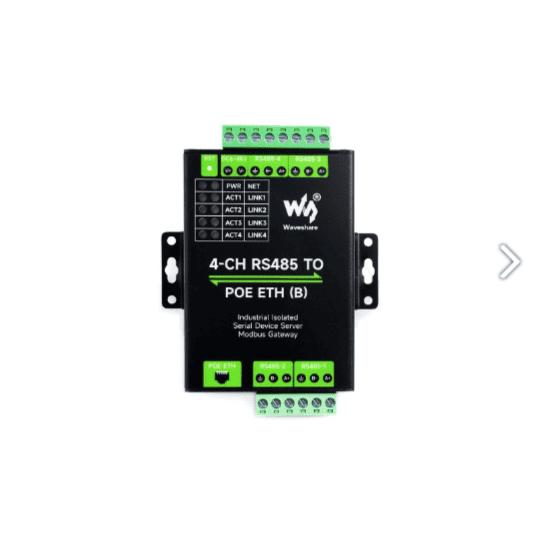

| 4-CH RS485 TO POE ETH (B) | ||
|---|---|---|
| 4-Ch RS485 + PoE network port + Electrical isolation | ||
| Product Type | Serial server, Modbus Gateway, MQTT Gateway | |
| Basic Function | Bi-directional transparent data transmission between RS485 and Ethernet | |
| Communication interface | RS485 port × 4, Ethernet port × 1 | |
| Power supply | DC 6 ~ 45V screw terminal, or PoE port | |
| Isolation Protection | Power isolation, Signal isolation | |
| COMMUNICATION | ||
| Ethernet | RJ45 with PoE support, IEEE 802.3af compliant | |
| 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection | ||
| Serial port | Isolated RS485 (the 4 channels can receive and transmit independently at the same time) | |
| SERIAL SPECIFICATION | ||
| Baudrate | 300 ~ 115200 bps | |
| Parity bit | none, odd, even, mark, space | |
| Data bit | 5 ~ 9 bits | |
| Flow control | N/A | |
| SOFTWARE | ||
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | |
| Configuration | host, web browser, device management functions library | |
| Communication method | TCP/IP direct communication, VCOM | |
| Operating mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast | |
| OTHERS | ||
| Operating temperature | -40℃ ~ 85℃ | |
| Humidity range | 5% ~ 95% relative humidity | |
| Dimensions | L × W × H: 91.0 × 64.5 × 24.2 mm | |
Bi-Directional Transparent Data Transmission Between 4-Ch RS485 And Ethernet
Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal For Power Supply, DC 6~45V Wide Voltage Range Input
Industrial Rail-Mount Design, Support Wall-Mount And Rail-Mount Installation, Compact Size, Easy Installation, Cost-Effective
Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software
Supports TCP Server / TCP Client / UDP Multicast / UDP Mode
* Note: This module is 4-channel, and each channel supports the above functions separately
More Flexible Conversion Between Different Protocols
Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices
Easy For Cloud Communication And Device Identification
Getting Network Time Info For Serial Output Or Data Upload
Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address
Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance

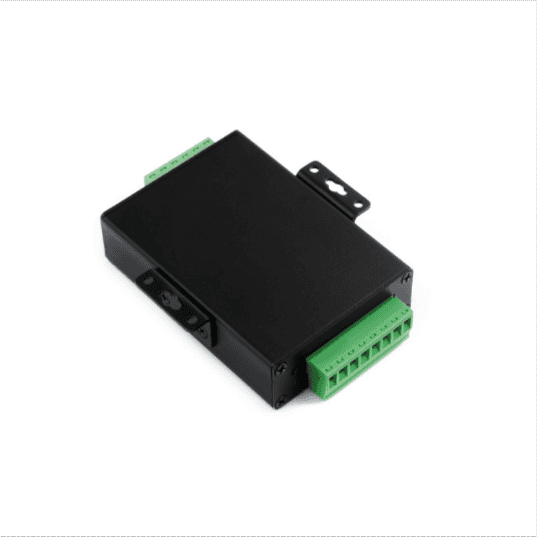

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashion And Good Hand Feeling
* for reference only, please refer to the Package Content for detailed part list
