SKU: 19907
Part Number: Pico-ResTouch-LCD-3.5
Korisne informacije:

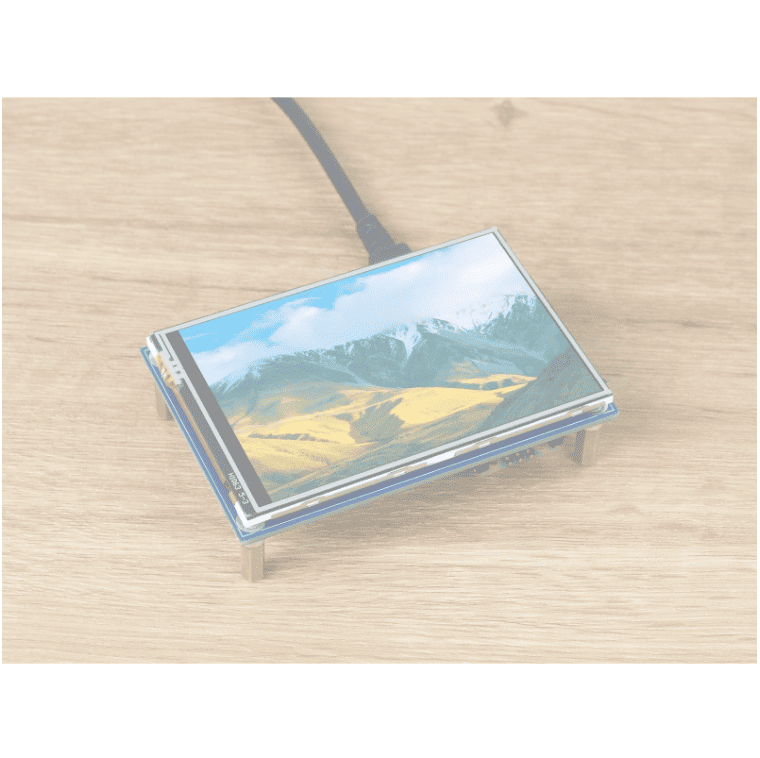

Pico-ResTouch-LCD-3.5 3.5inch Touch Display Module For Raspberry Pi Pico, 65K Colors, 480×320 Pixels, SPI Interface
3.5" Touch Display Module For Pico Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
5V |
RESOLUTION |
480×320 pixels |
COMMUNICATION INTERFACE |
SPI |
DISPLAY SIZE |
73.44 × 48.96 mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.153 × 0.153 mm |
DRIVER |
ILI9488 |
DIMENSIONS |
86.00 × 57.20 mm |
TOUCH CONTROLLER |
XPT2046 |
|
|

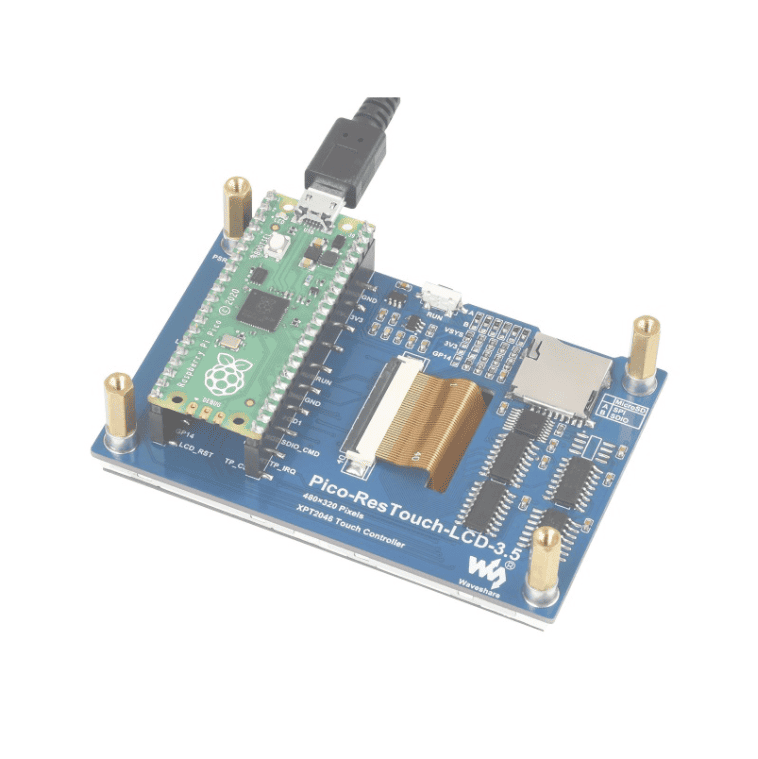

Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

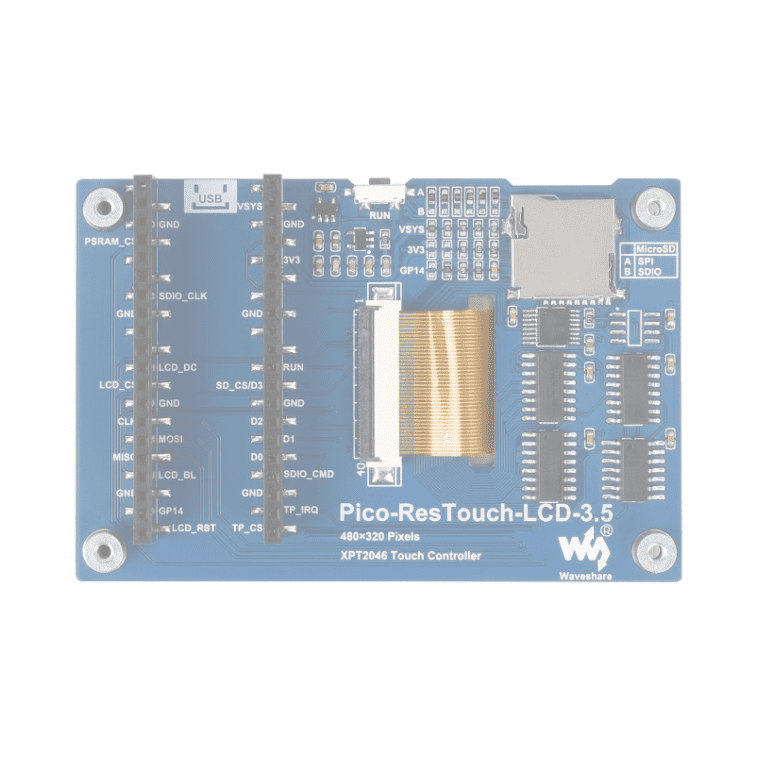

Raspberry Pi Pico is NOT included. What's On Board
- Rapsberry Pi Pico header
- CAT6219
LCD backlight power chip
- RT9193-33
3.3V linear voltage regulator
- Pico reset button
- MicroSD card slot
- XPT2046
resistive touch controller
- 74HC4040
counter chip, for clock frequency division
- 74HC04D
inverter chip
- 74HC4094
serial data to parallel data converter
Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.065 kg
- Pico-ResTouch-LCD-3.5 x1
- Standoffs pack x1
