SKU: 27478

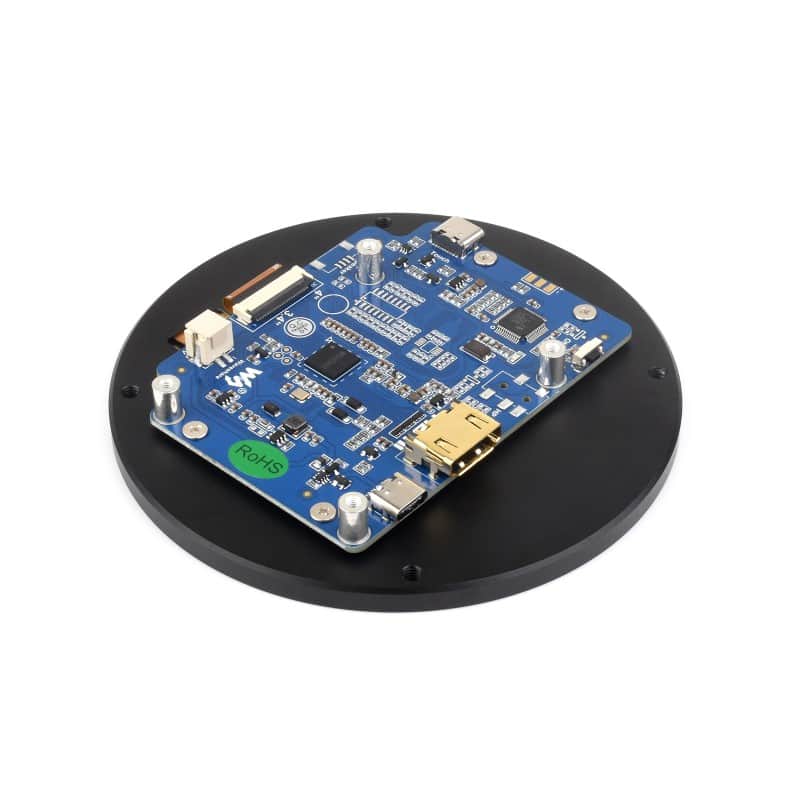

Part Number: 3.4inch 800x800 LCD
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/4inch_800x800_LCD 3.4inch HDMI Round Touch Display, 800 × 800, IPS, 10-Point Touch, Round LCD, Optical Bonding Toughened Glass Panel
3.4″ Round Touch Display High Resolution | Multi-Touch | Full Color
Device & System Support
Raspberry Pi Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano Supports Ubuntu, single point touch, driver free
PC Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With Mini PC
for reference only, the Raspberry Pi boards and the hosts above are NOT included. IPS Display Panel Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof

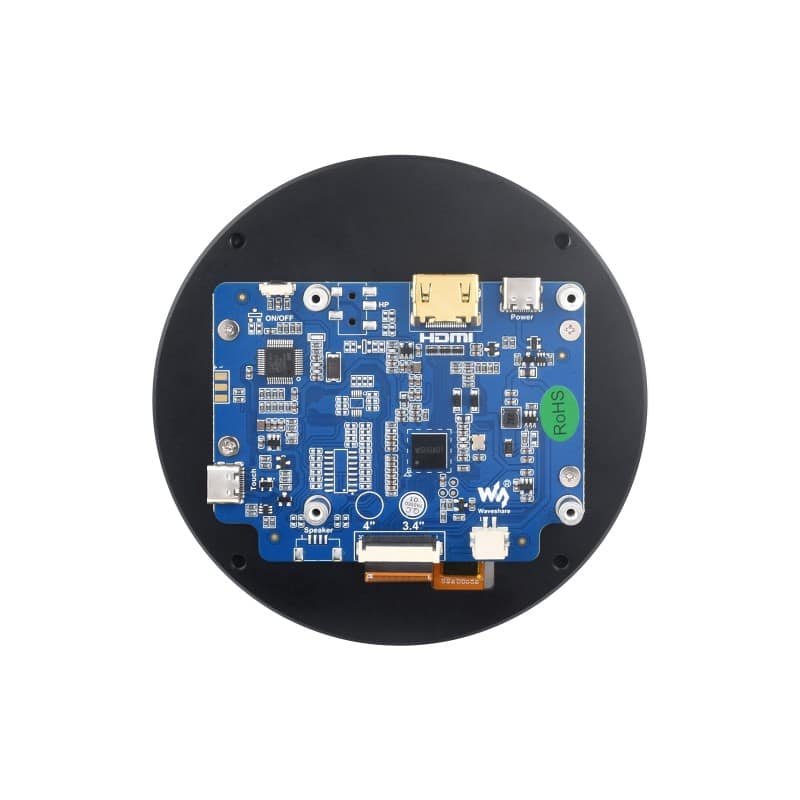

Interface Introduction
Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Industrial Equipments Product Show
Dimensions
Package content: Weight: 0.381 kg
- 3.4inch 800x800 LCD ×1
- Silver capacitive touch pen ×1
- USB-A to USB-C cable ~1m ×1
- HDMI flat cable ~1m ×1
- USB to Type-C adapter (C) ×1
- USB to Type-C adapter (B) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
