SKU: 27660
Part Number: 21.5inch FHD LCD (EU)
Brand: Waveshare
Korisne informacije:

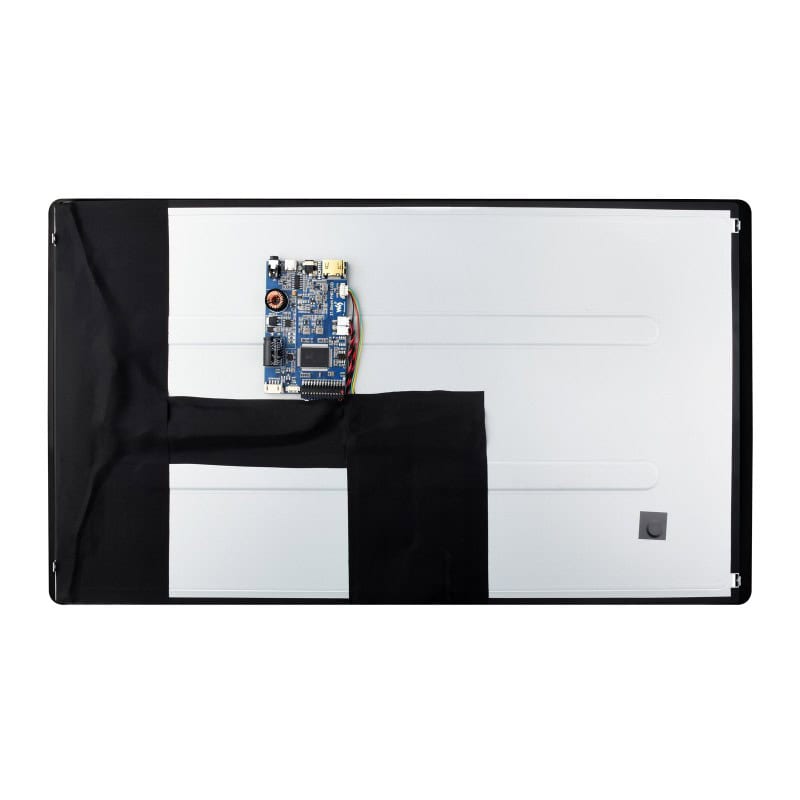

www.waveshare.com/wiki/21.5inch_FHD_LCD 21.5inch Capacitive Touch Display, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, Supports Raspberry Pi / Jetson Nano, Etc.
21.5″ Capacitive Touch Display Industrial Quality, Suitable For Industrial, Commercial, And Medical Applications, Etc.
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display. Connection Examples Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With Mini PC
for reference only, the Raspberry Pi boards and the hosts above are NOT included.
Configurable Display Orientation The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display
Wide Viewing Angle IPS Display Panel Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof

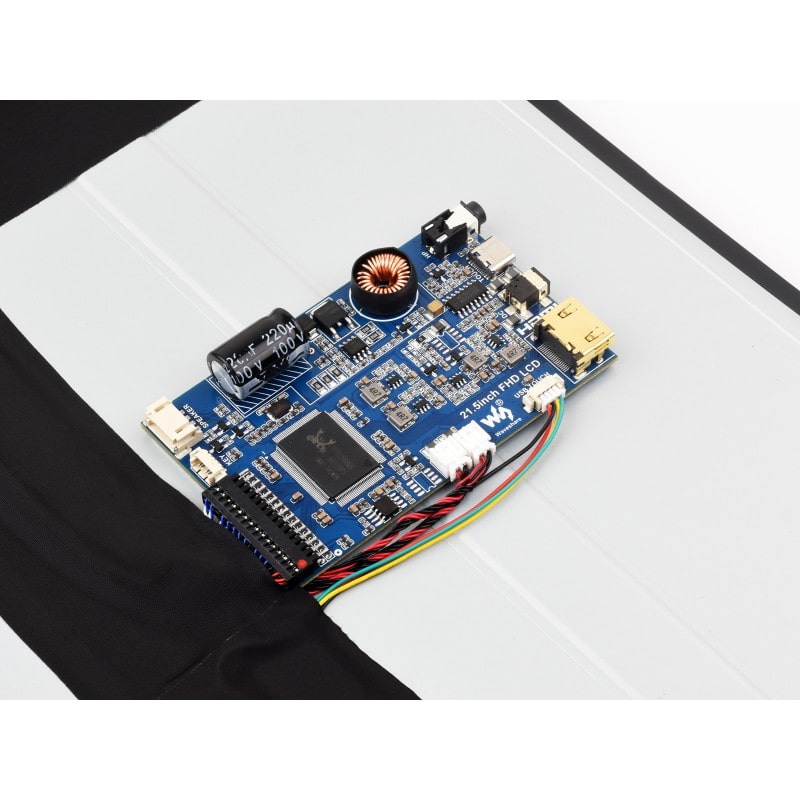

Interface Introduction
Application Scenarios Suitable For Industrial, Commercial, Medical And Other Applications
Dimensions
Package content: Weight: 4.573 kg
- 21.5inch FHD LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB Type A to Type C cable ~1m x1
- OPTIONS 12V 2A power adapter x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen ×1
