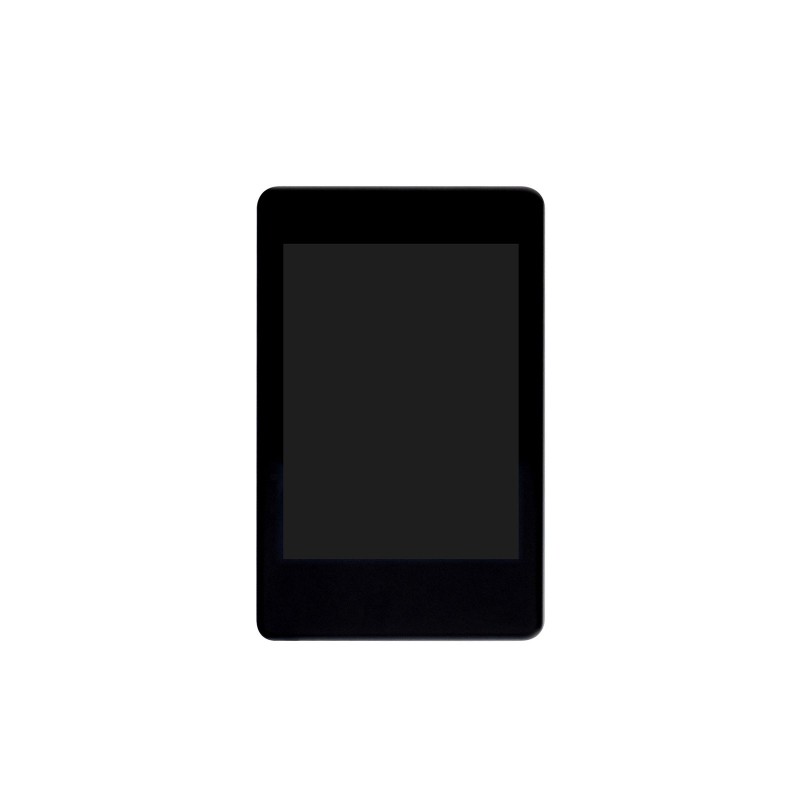

Obavesti me kada proizvod bude dostupan!Embedded ST7789T3 driver and CST816D capacitive touch control chip
Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
| Operating Voltage | 3.3V / 5V | Resolution | 240 × 320 pixels |
|---|---|---|---|
| Display Driver | ST7789T3 | Touch Driver | CST816D |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| Display Panel | IPS | Touch Type | Capacitive |
| Pixel Pitch | 0.1275 × 0.1275 (mm) | Touch Points | single point touch |
| Display Size | 30.6 × 40.8 (mm) | Module Size | 37.1 × 58.8 (mm) |
Compatible With 3.3V / 5V Operating voltage
For storing more pictures or files
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility

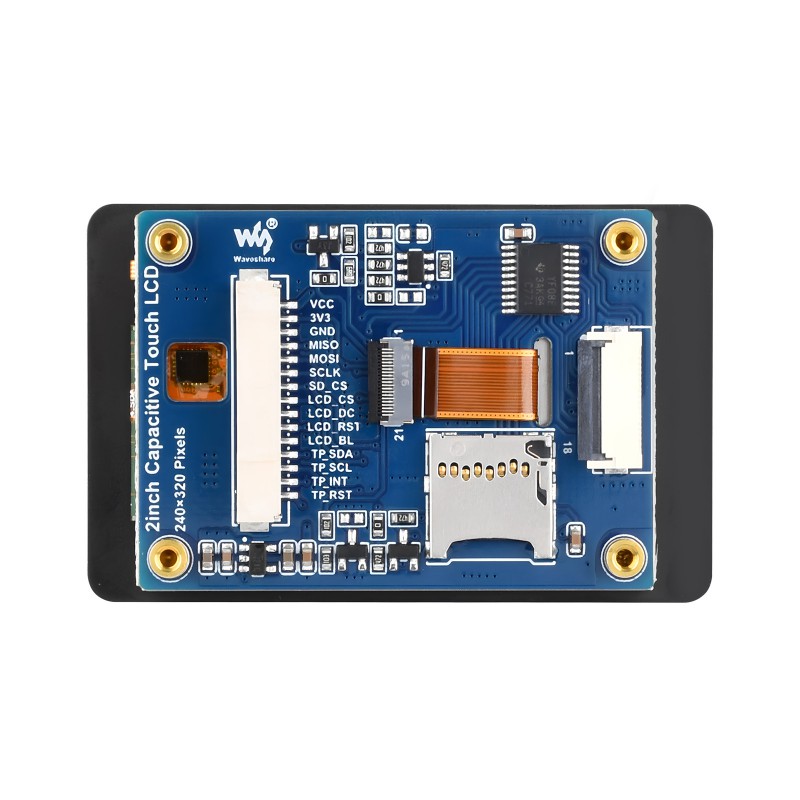

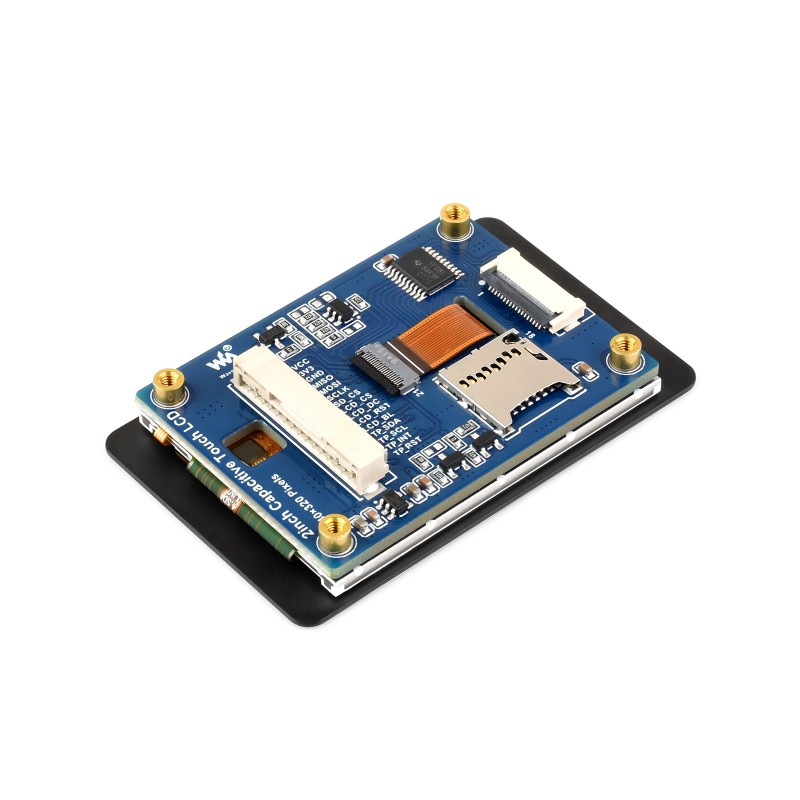

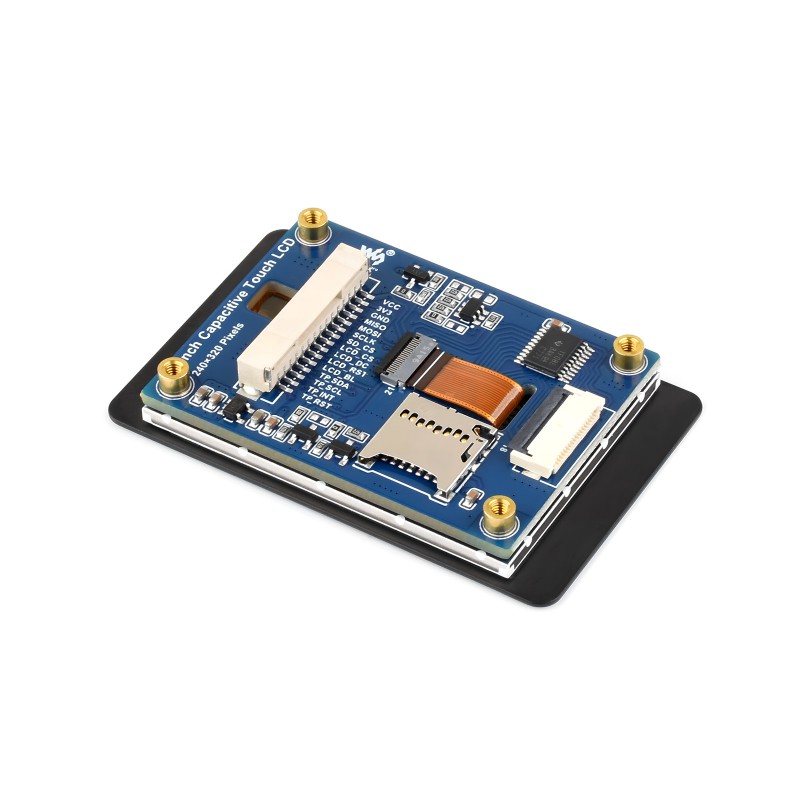

Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board
| Pin | Description | 15PIN Pin No. | 18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| 3V3 | Power (3.3V input) | 2 | NC |
| GND | Ground | 3 | 3 |
| MISO | SPI MISO pin | 4 | 6 |
| MOSI | SPI MOSI pin | 5 | 5 |
| SCLK | SPI CLK pin | 6 | 4 |
| SD_CS | TF card chip selection, low active | 7 | 10 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 9 | 7 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_INT | Touch panel interrupt pin | 14 | 15 |
| TP_RST | Touch panel reset pin, low active | 15 | 12 |
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, the Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.
