SKU: 19979
Part Number: Pico-2CH-RS232
Korisne informacije:
Pico-2CH-RS232 2-Channel RS232 Module For Raspberry Pi Pico, SP3232EEN Transceiver, UART To RS232
2-Channel RS232 Module For Pico Incorporates RS232 Transceiver SP3232EEN, Using UART Bus
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Using UART bus, easily converting UART to RS232, or vice versa
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
3.3V-5V |
RS232 TRANSCEIVER |
SP3232EEN |
COMMUNICATION BUS |
UART |
BAUDRATE |
300~912600bps |

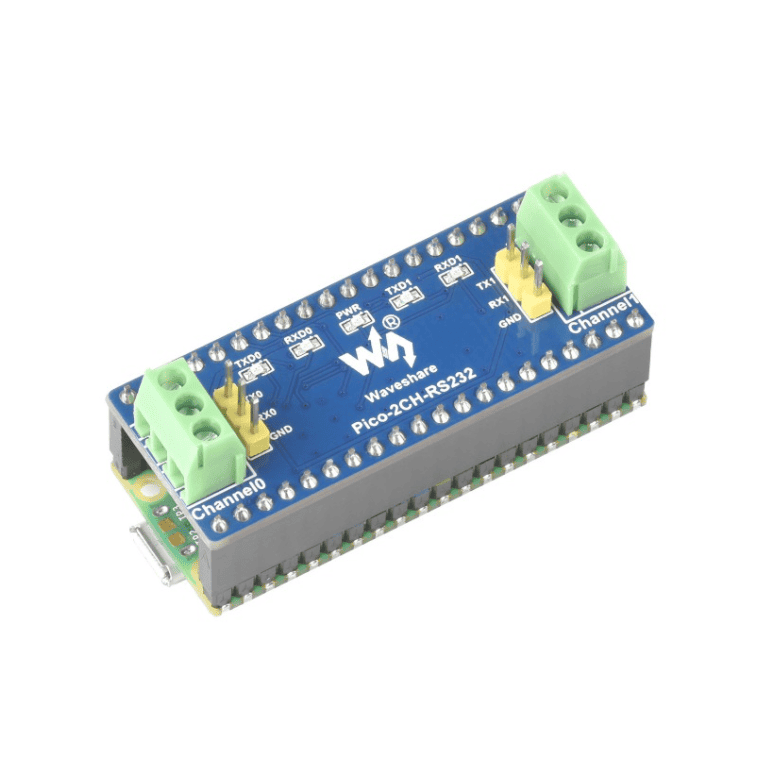

Raspberry Pi Pico Header Compatibility

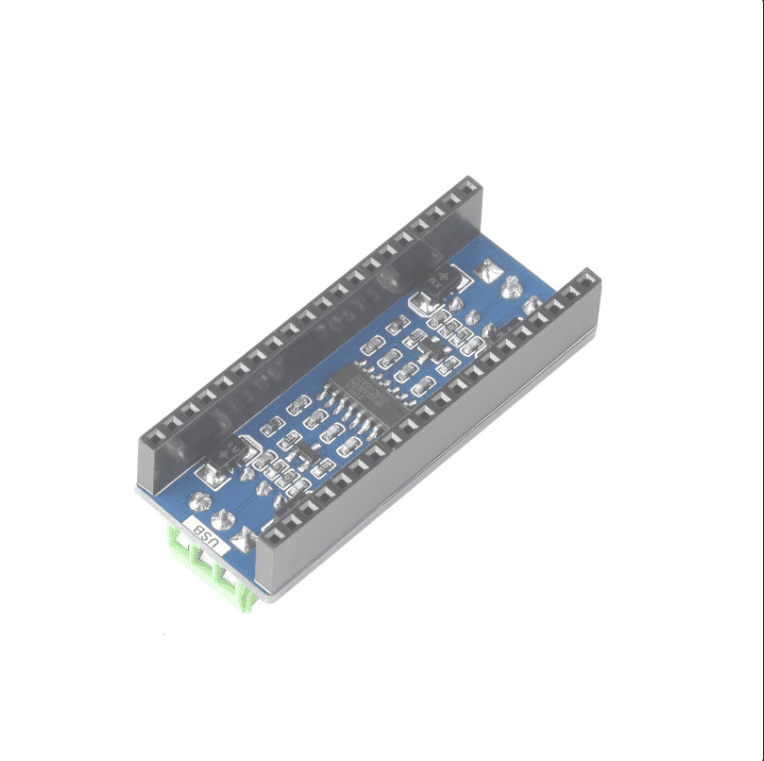

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included. What's On Board

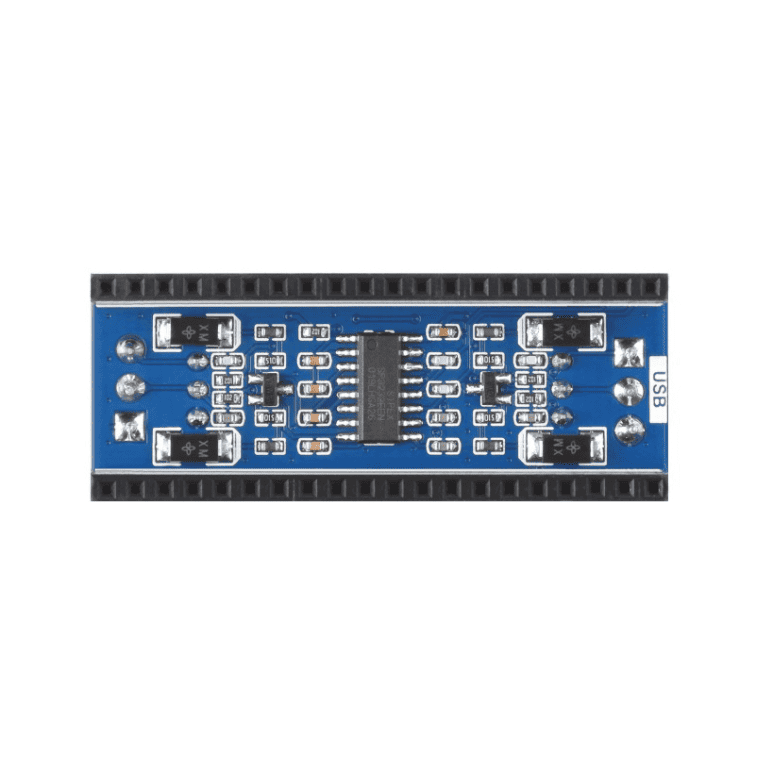

- SP3232 RS232 transceiver
- Raspberry Pi Pico header
- RS232 bus interface

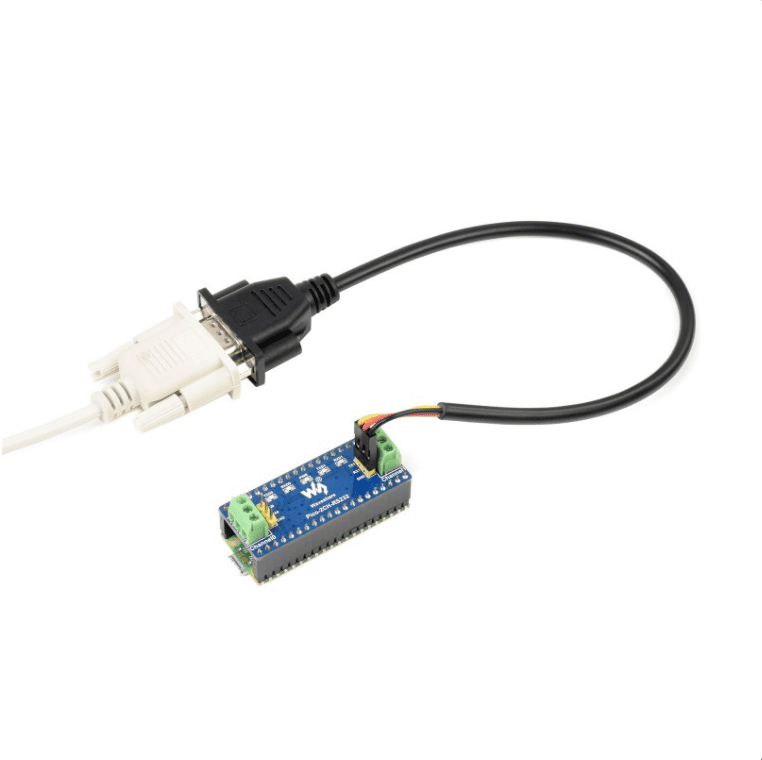

2-channel RS232 (DB9 male connector is also available through adapter cable)
- TVS diode
- ESD diode

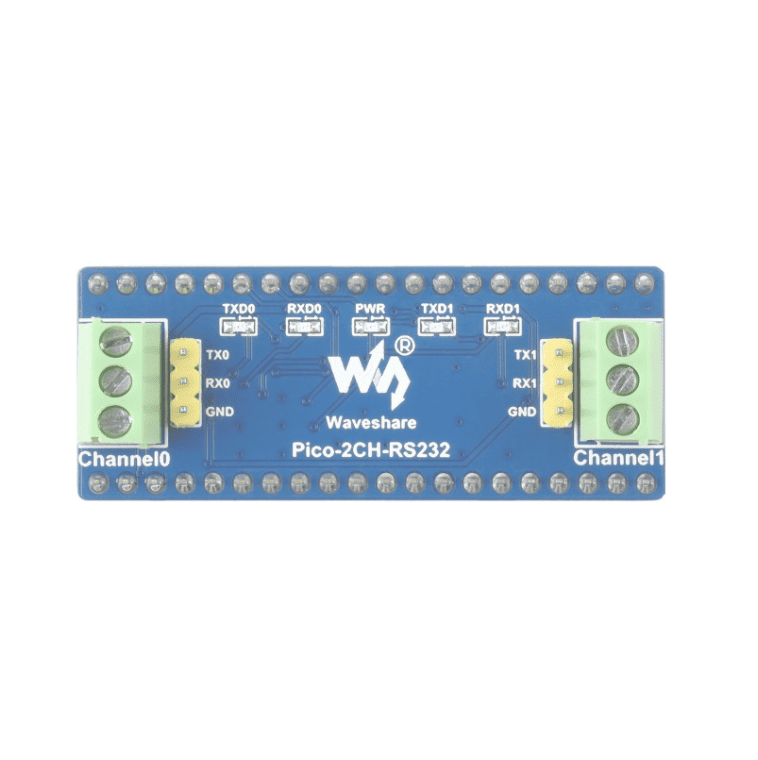

- UART status indicators
RXD0/TXD0: Channel 0 RX/TX indicators
RXD1/TXD1: Channel 1 RX/TX indicators
Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.038 kg
- Pico-2CH-RS232 x1
- DB9 to 3PIN adapter cable x1
