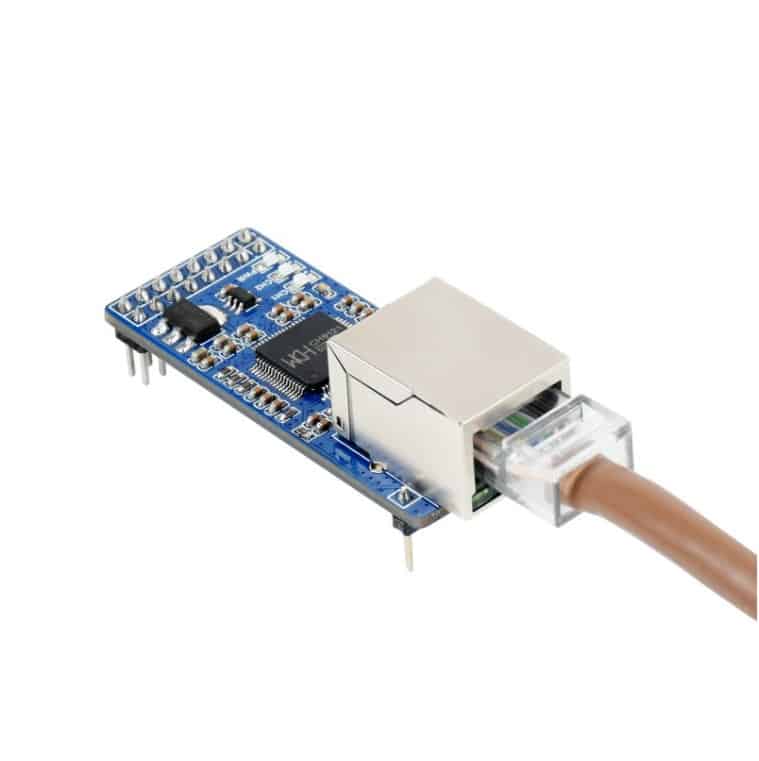

2-CH UART TO ETH**

Šifra: w20655

1.390,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: mini PC
Težina po komadu: 0.019 Kg

ter

Serial port transparent transmission

Features At A Glance

The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on.

Embedded Ethernet MAC and PHY layers

Bi-direction transparent data transmission between UART and Ethernet

10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant

Auto-MDI/MDIX, detect and switch cable type automatically

Supports DHCP auto-obtained IP and DNS domain access

Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command

Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER

2-CH UART concurrent operation, standalone transparent transmission for each channel

Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch

Supports virtual serial port software (provided)

KEEPALIVE mechanism support

Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)

Specifications

OPERATING VOLTAGE	3.3V/5V	OPERATING CURRENT	140mA
OPERATING MODE	TCP/UDP	UART BAUDRATE	300bps ~ 921.6Kbps
UART TTL LEVEL	3.3V / 5V compatible	STORAGE TEMPERATURE	-55℃ ~ 125℃
OPERATING TEMPERATURE	-40℃ ~ 85℃	DIMENSIONS	53.00 × 22.00mm

Control Interface

Supports Host Boards Including Raspberry Pi/Arduino/STM32...

Application Example

Bi-Direction Transparent Transmission Between UART TTL And Wired Ethernet

Extend The Communication Distance For Serial Devices

Manage Multi Serial Client Devices Remotely Via One Web Server

Manage Serial Server Remotely Via Multi Web Clients

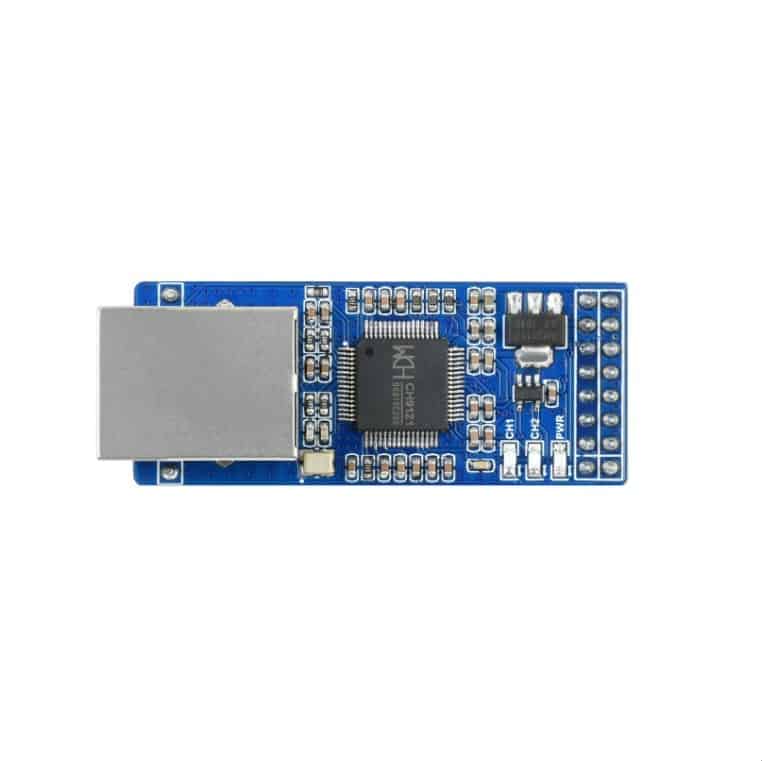

What's On Board

UART 1 connection status indicator

UART 2 connection status indicator

Power indicator

CH9121 control pins

CH9121 driver

AMS1117-3.3V power supply IC

RT9193-18GB power supply IC

Ethernet port

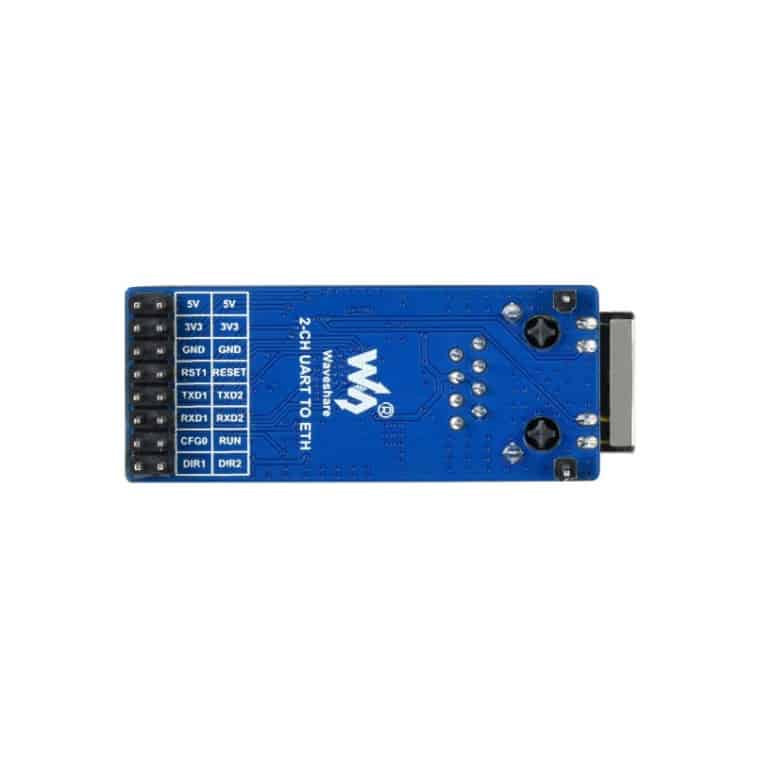

Pinout Definition

5V / 3V3	power positive, use any pin of 5V/3.3V pins for power supply
GND	ground
RST1	external reset input, low active
RESET	restore to factory setting, detected when chip poweron, low active
TXD1	asynchronous UART 1 data output (enabled by default)
TXD2	asynchronous UART 2 data output (disabled by default)
RXD1	asynchronous UART 1 data input (enabled by default)
RXD2	asynchronous UART 2 data input (disabled by default)
CFG0	UART config mode, low level to enter configuration, high level to exit configuration
RUN	Operating status indicating pin
DIR1	UART 1 RS485 RX/TX switch (connects to external RS485 controller)
DIR2	UART 2 RS485 RX/TX switch (connects to external RS485 controller)
