fficiency, No Mechanical Noise Or Wear, Quick Response, Adjustable Output

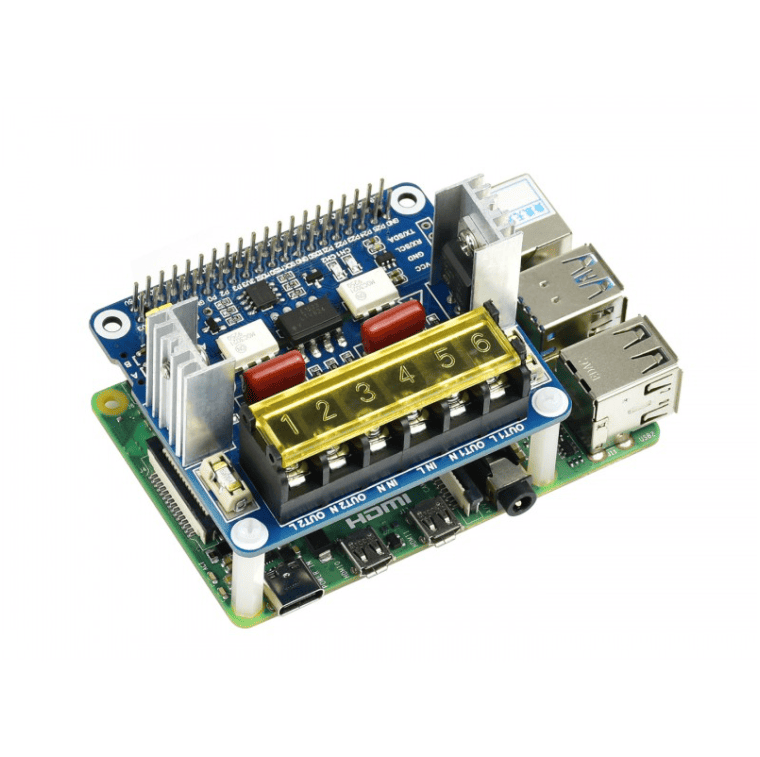

Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
FEATURES AT A GLANCE
- STM32F0 MCU controller, requires minimal Raspberry Pi resource, UART / I2C communication
- RC snubber circuit, protect the triac from power fluctuation
- Up to 4400W output power, under ideal heat dissipation condition
- Optocoupler isolation, preventing interference from the high voltage circuit
- Indicator for easy checking the status of triac
- Reserved UART and I2C interface, for working with other host control boards
- Data rate: up to 921.6kbps for UART，up to 1024kbps for I2C
- Comes with development resources and manual (examples in C and Python)
STM32F0 MCU Onboard
Integrates STM32F030 MCU, Supports Directly Command Control, Easy For Developping
Quicker Response, Requires Minimal Resource From The Raspberry Pi
High Data Rate, Always One Step Ahead
Up To 921.6kbps For UART，Up To 1024kbps For I2C
Powerful Output Power
Up To 4400W Output Power, Under Ideal Heat Dissipation Condition
Optocoupler Isolation
Safety First! Optoisolated Solution, Preventing Interference From The High Voltage Circuit
Home Appliance Support
In The Example Of Controlling 220VAC Home Appliances
Applications

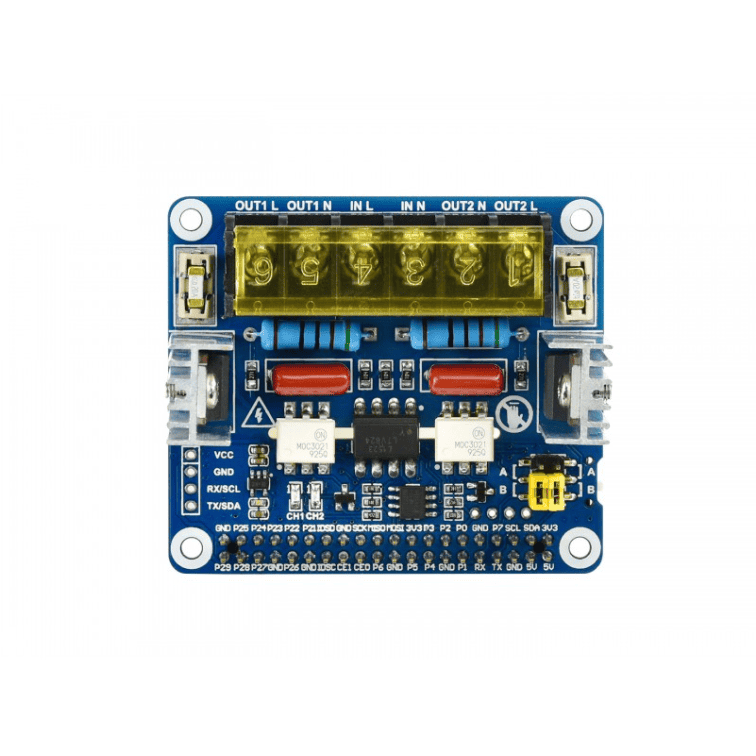

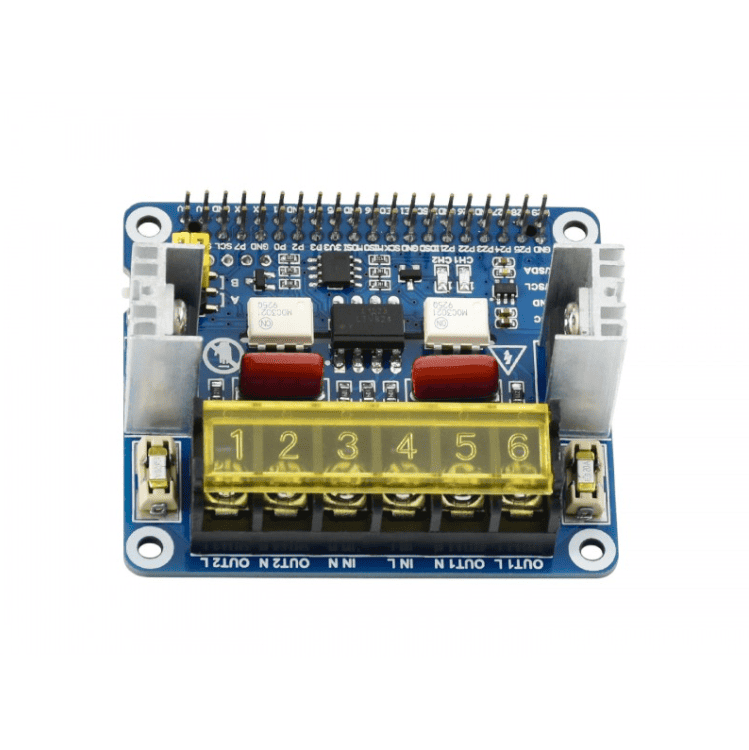

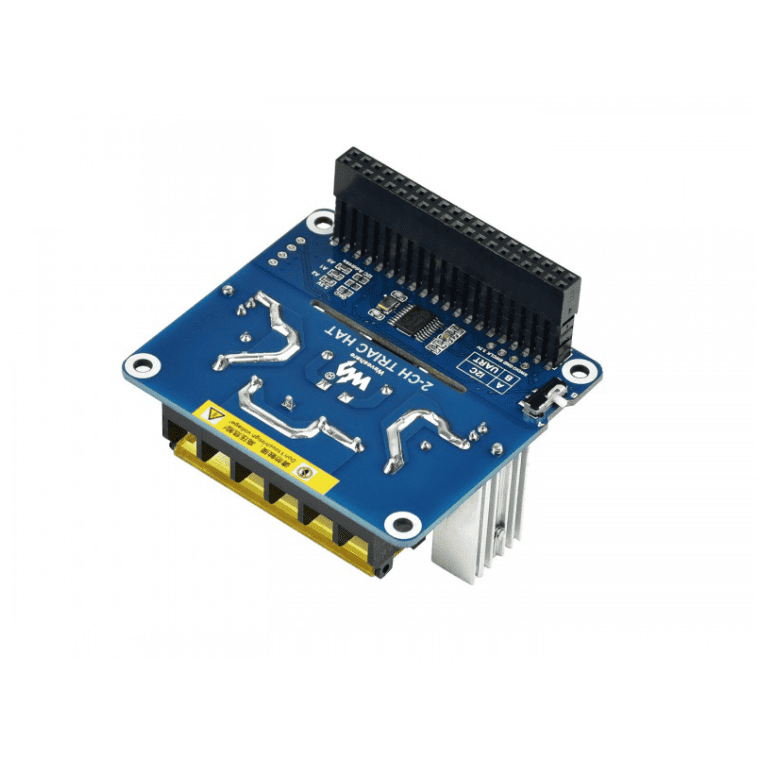

What's On Board
- BTA24-600 high power bidirectional triac
- MOC3021S photocoupler, the triac driver
- LTV-824S AC photocoupler
- RC snubber circuit
- LM358DR OP amplifier
- STM32F030F4P6 main controller
- RT9193-33PB power chip
- Output indicator
- 20A blow fuse
- Standard Raspberry Pi 40PIN GPIO header
- MCU control interface, for use with other host control boards like Arduino
- AC input
- AC output

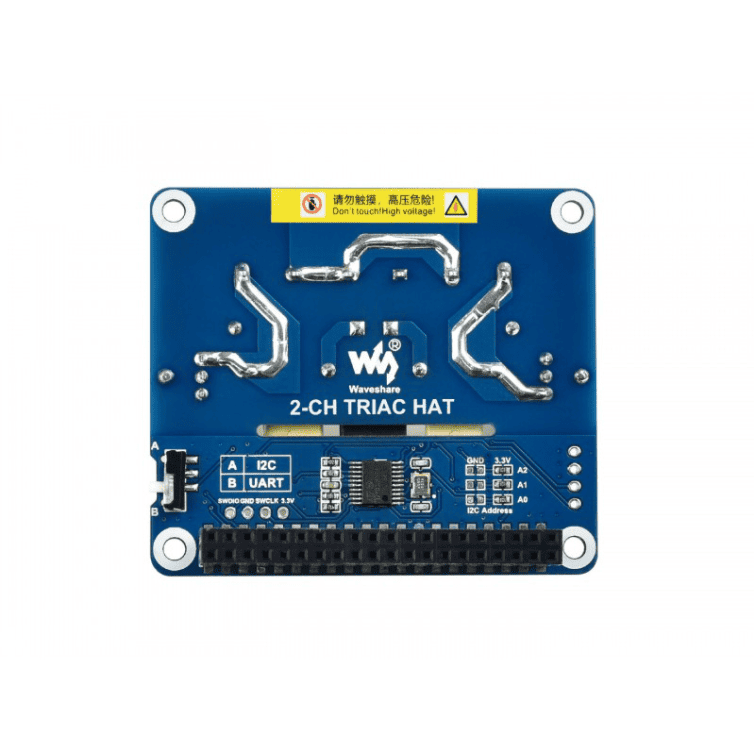

- Data bus selection
A: use Raspberry Pi I2C bus
B: use Raspberry Pi UART bus
- Mode selection
A: I2C mode
B: UART mode
Specifications
AC VOLTAGE |
100 ~ 600V |
UART DATA RATE |
1.2 ~ 921.6 kbps |
AC CURRENT |
0~20A |
I2C DATA RATE |
1024 kbps |
CONTROLLER |
STM32F030 |
LOGIC LEVEL VOLTAGE |
3.3V/5V |
COMMUNICATION BUS |
I2C/UART |
DIMENSIONS |
65 × 56.5(mm) |
Pinout Definition
Outline Dimensions
Comes with example in C and Python
-
- PACKAGE CONTENT
Weight: 0.052 kg
- 2-CH TRIAC HAT x1
- Screws x1
1
2
WIKI: www.waveshare.com/wiki/2-CH_TRIAC_HAT
