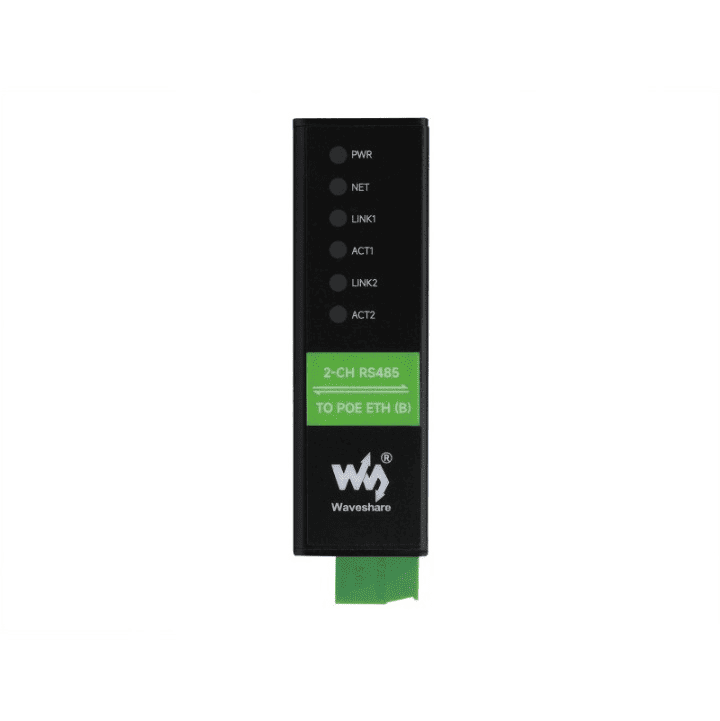

2-CH RS485 TO POE ETH (B)

Šifra: w24963

4.999,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 3 na stanju

Dodaj u korpu

Kategorija: industrijski konverteri
Težina po komadu: 0.161 Kg

SKU: 24963
Part Number: 2-CH RS485 TO POE ETH (B)
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/2-CH_RS485_TO_POE_ETH_(B)

Industrial Isolated 2-Ch RS485 To RJ45 Ethernet Serial Server

2-Ch RS485 To Ethernet, Modbus/MQTT/JSON Support, Rail-mount Metal Case

Features At A Glance

This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

		2-CH RS485 TO POE ETH (B)
		2-CH RS485 + PoE network port + Electrical isolation
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface	RS485 port × 2, Ethernet port × 2
Power supply		DC 5.5 power port, 6 ~ 45V DC screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
COMMUNICATION
Ethernet		RJ45 with PoE support, IEEE 802.3af compliant
Ethernet	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	Isolated RS485 (the 2 channels can receive and transmit independently at the same time)
SERIAL SPECIFICATION
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
SOFTWARE
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
ENVIRONMENT REQUIREMENT
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 78.0 × 72.5 × 24.2 mm

Primary Function

Bi-Directional Transparent Data Transmission Between RS485 And Ethernet

Multi Power Supply Options

Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal And DC Power Port For Power Supply, DC 6~45V
Wide Voltage Range Input

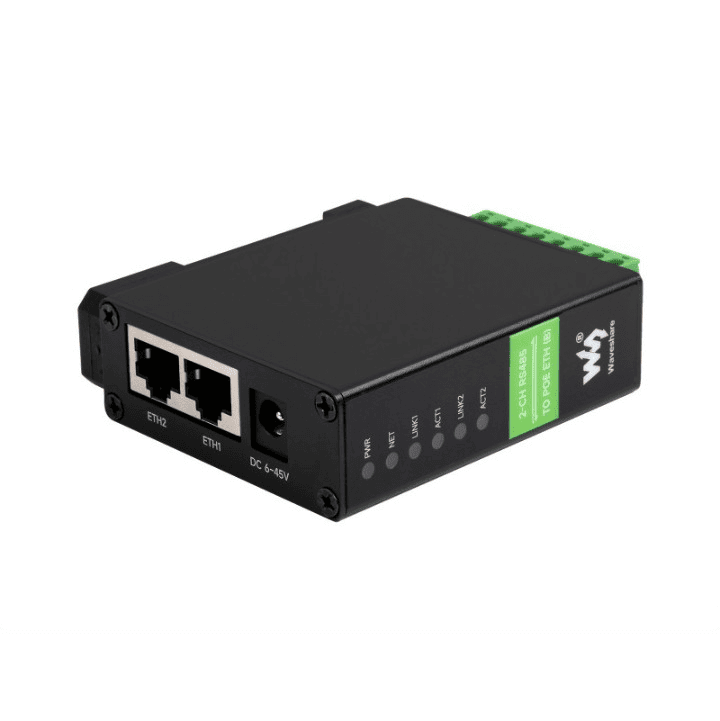

Support Ethernet Port Cascade

Onboard 2-Ch Ethernet Ports For Communication And Cascade
Either One Can Be Used For Dual Serial Server Network Communication, While The Other One Can Be Used For Cascading Or Communication With Other Devices

* Note: Each module in the cascade needs to be powered individually. If it is the POE version, it can be powered directly through the Ethernet cable. The working current of the module is 12V/150mA (MAX) and can be cascaded up to 8.

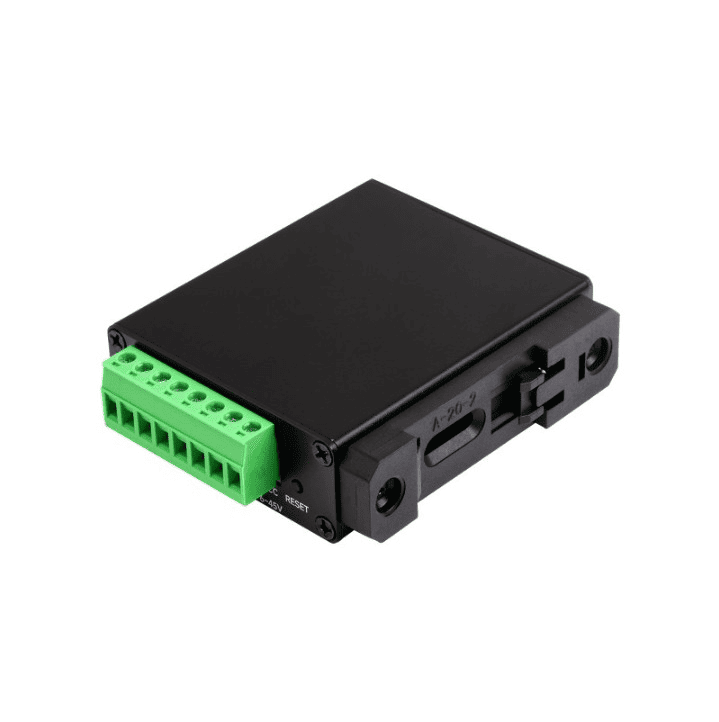

Rail-Mount Support

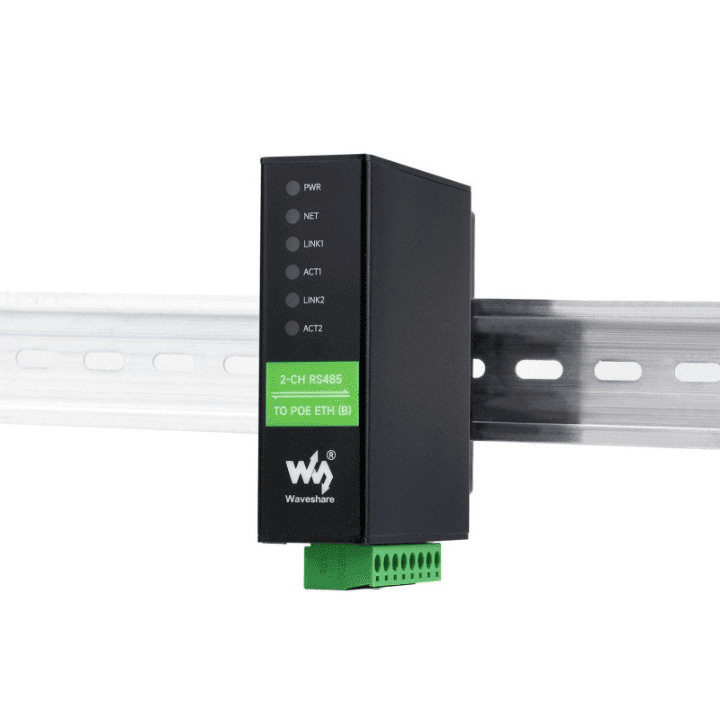

Industrial-Grade Rail Design, Compact Size, Easy Installation, Cost-Effective

Modbus Gateway Support

Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software

Multi Communication Modes

Supports TCP Server / TCP Client / UDP Multicast / UDP Mode

* Note: This module is dual-channel, and each channel supports the above functions separately

MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance
