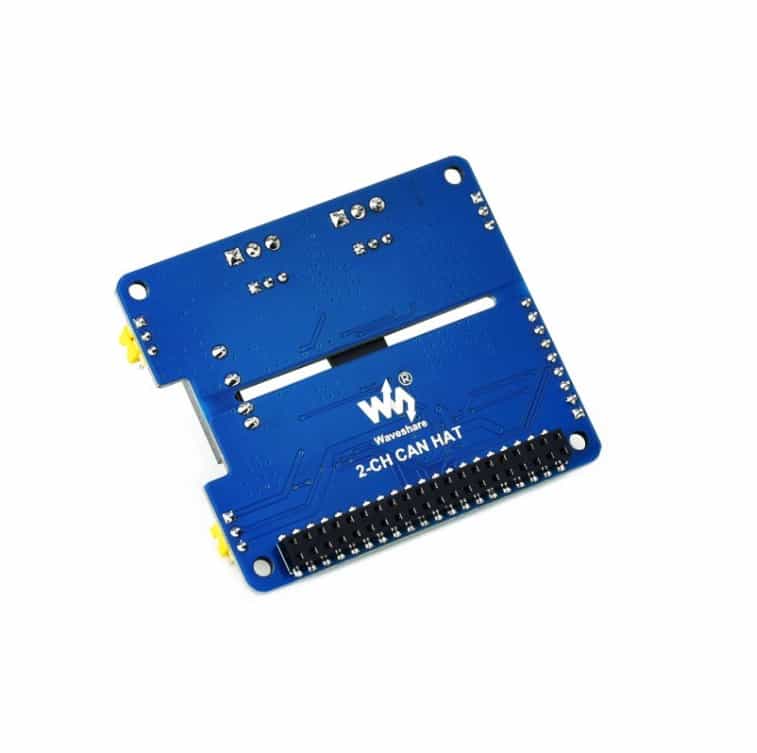

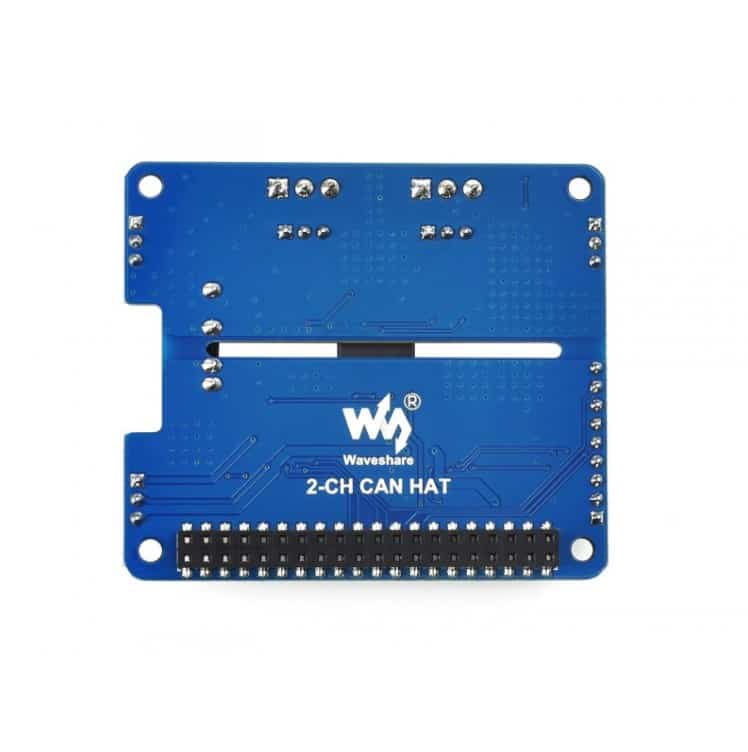

Part Number: 2-CH CAN HAT
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/2-CH_CAN_HAT 2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi, MCP2515 + SN65HVD230 Dual Chips Solution, Multi Onboard Protection Circuits
2-Channel CAN HAT For Raspberry Pi 2-Channel Isolated CAN Bus Expansion, Multi Onboard Protection Circuits
Comes with manual and examples in C / Python
What Can It Do? Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi

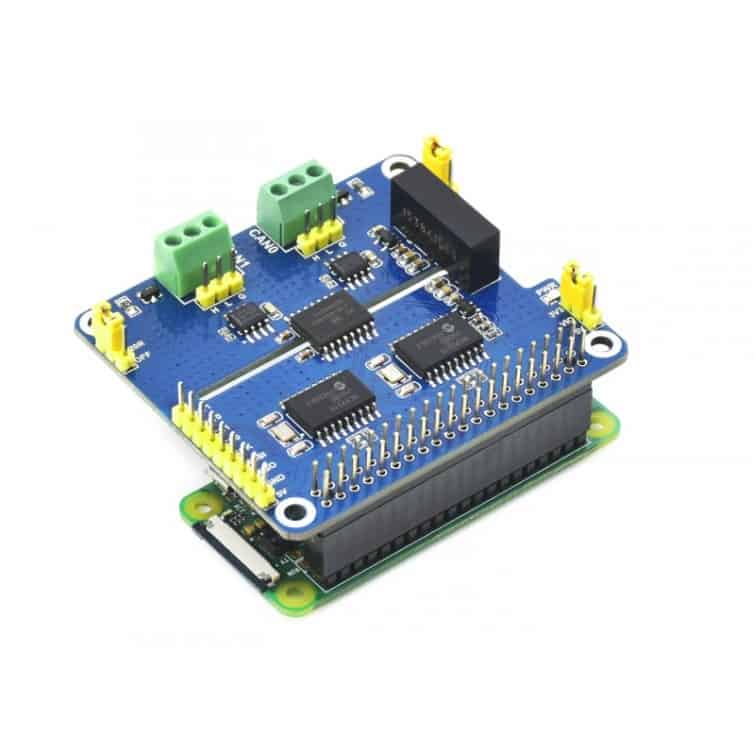

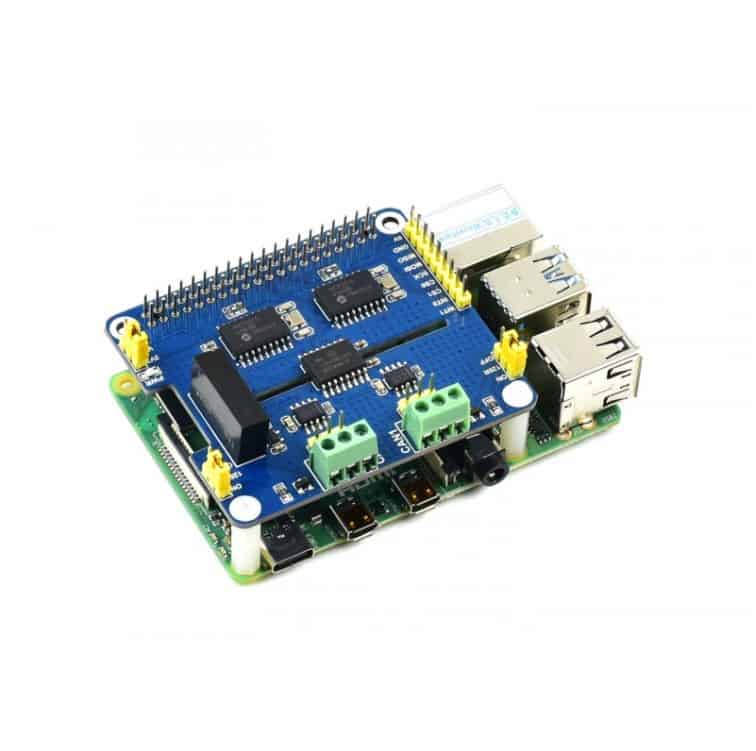

Designed For Raspberry Pi Series Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
FEATURES AT A GLANCE
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe, more stable, and better anti-interference
- Onboard TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper
- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
2-Channel CAN Capability MCP2515 CAN Controller + SN65HVD230 CAN Transceiver
Electrical Isolation Circuitry Safe & Stable SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection
Flexible And Handy Jumpers Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers
What's On Board

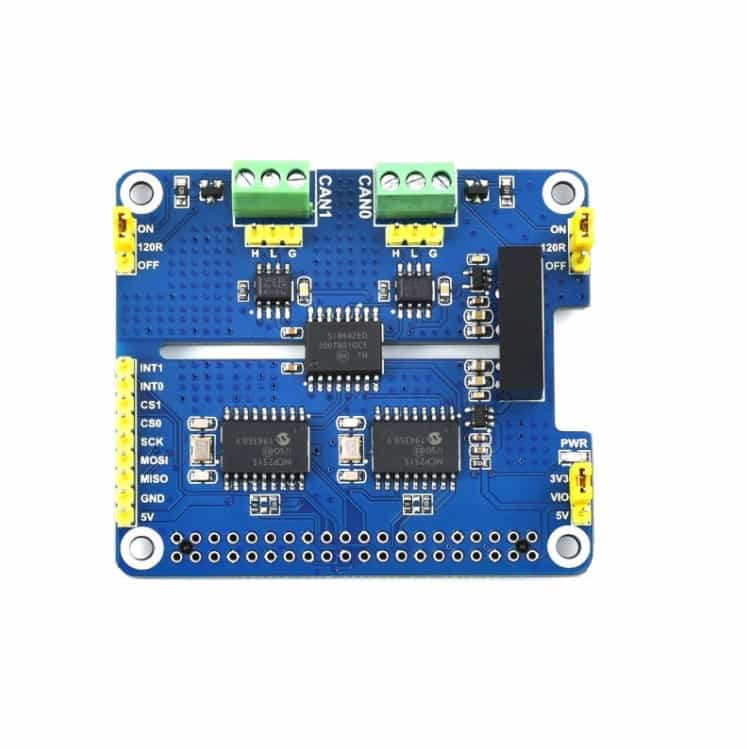

- MCP2515 CAN controller
- SN65HVD230 transceiver
- SI8642ED digital isolator
- RT9193-33 power chip
- B0505LS-1W power supply isolation module
- SM24CANB TVS diode
- Standard Raspberry Pi 40PIN GPIO header
- CAN bus screw terminal
- MCU control pins
- 120Ω terminal resistor switch
- 3.3V/5V logic level switch
- Power indicator
Pinout Definition
Specifications
CAN CONTROLLER |
MCP2515 |
POWER SUPPLY VOLTAGE |
5V |
CAN TRANSCEIVER |
SN65HVD230 |
LOGIC LEVEL VOLTAGE |
3.3V/5V |
CONTROL BUS |
SPI |
DIMENSIONS |
65 × 56.5(mm) |
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.028 kg
- 2-CH CAN HAT x1
- Standoffs pack (2pcs) x1
- 2×20PIN female header x1
