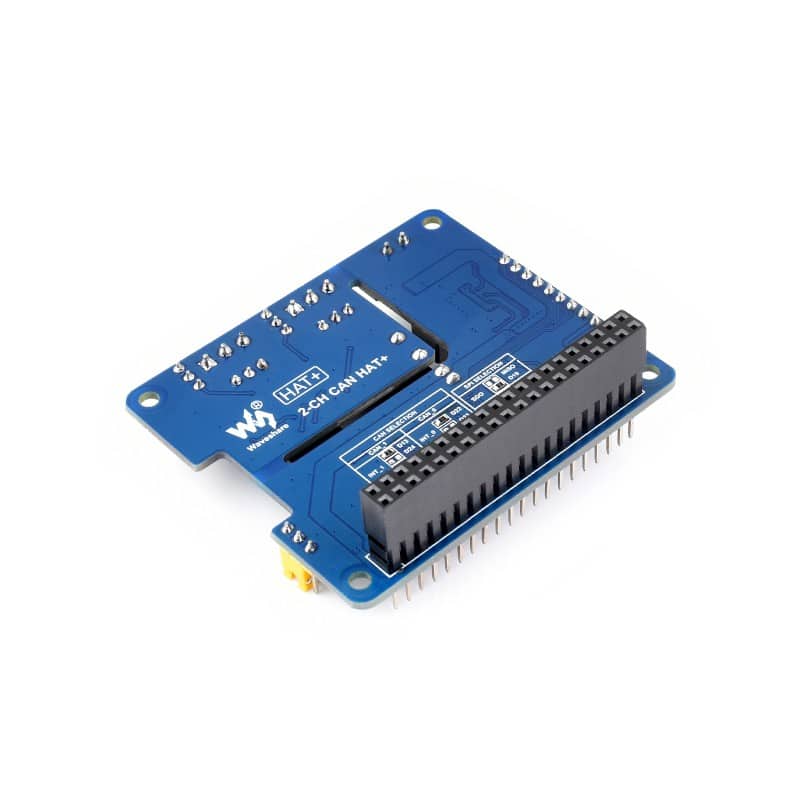

2-CH CAN HAT+

Šifra: w27338

2.990,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: mini PC
Težina po komadu: 0.054 Kg

SKU: 27338
Part Number: 2-CH CAN HAT+
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/2-CH_CAN_HAT+

Features

Designed for Raspberry Pi, support Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B/5.

Standard HAT+ design, with onboard EEPROM chip.

Adopts MCP2515 and SN65HVD230 dual-chip solution, allowing 2-channel CAN communication.

Integrated power isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.

Onboard digital isolation chip, signal isolation communication is safer, more stable, and better anti-interference.

Onboard SM24CANB (transient voltage suppressor), provides ESD protection and transient peak voltage protection.

Onboard voltage conversion circuit, select 3.3V/5V operating voltage by jumper.

Onboard 120Ω terminal resistor, enable through the jumper cap.

Elicits the SPI control interface, for connecting with host control boards like STM32/Arduino.

Provides online supporting information manuals and demos.

2-Channel Isolated CAN Bus Expansion HAT For Raspberry Pi, Dual Chips Solution, Stackable Design For Expanding Multiple CAN Channels, Built-In Multi Protections, Raspberry Pi HAT

2-Channel CAN HAT Plus For Raspberry Pi

Stackable design for expanding multiple CAN channels, HAT+ standard support

Features At A Glance

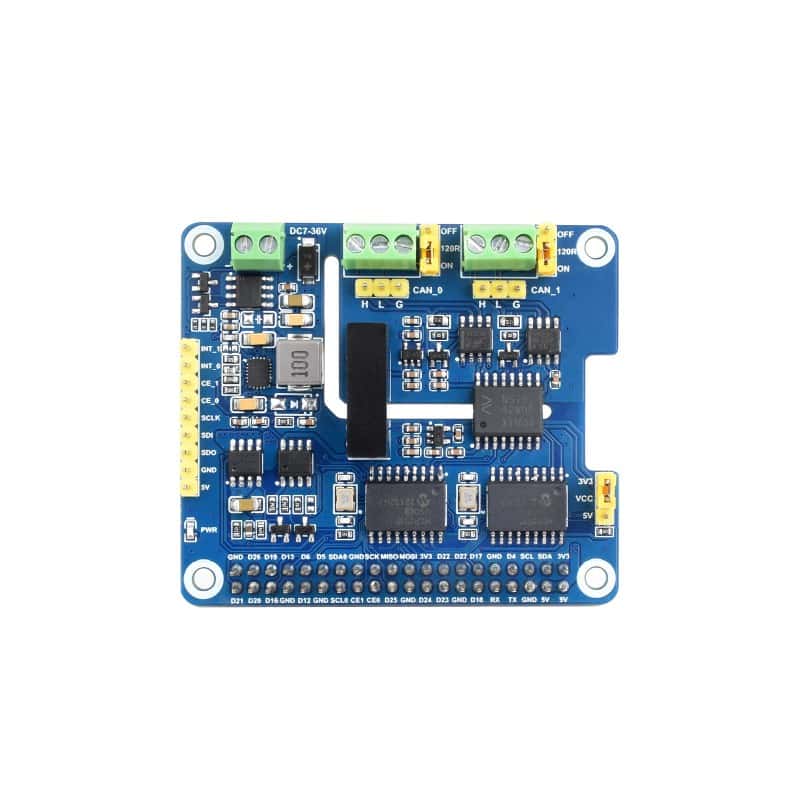

The 2-CH CAN HAT+ is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi. Supports expanding multiple CAN channels by stacking with the 2-CH CAN HAT or 2-CH CAN FD HAT. Adopts HAT+ standard design, compatible with Raspberry Pi series boards such as Raspberry Pi 5/4/3/Zero. Onboard various protection circuits, including electrical isolation to make communication more safe and reliable. Supports wide range voltage input of 7~36V, suitable for industrial applications.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano

Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication

Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal

Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference

Onboard external power supply terminal, supports 7~36V wide voltage power input, supports powering the Pi and the HAT at the same time

Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection

Onboard voltage translator, select 3.3V/5V operating voltage by jumper

Onboard 120Ω terminal resistor, configured by jumper

Breakout SPI and I2C control pins, for connecting with other host control boards

Comes with online development resources and manual (examples in Python/C)

Specifications

CAN CONTROLLER	MCP2515
CONTROL BUS	SPI
POWER SUPPLY METHOD	External power supply terminal or Raspberry Pi GPIO
TERMINAL VOLTAGE INPUT	DC 7~36V
OPERATING VOLTAGE	5V
LOGIC LEVEL	3.3V/5V
DIMENSIONS	65.0 × 56.5mm

What Can It Do?

Enable Isolated And Stable CAN Bus Capability For Your Raspberry Pi

Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

2-Channel CAN Capability

MCP2515 CAN Controller + SN65HVD230 CAN Transceiver

Supports Stacking With Other Modules

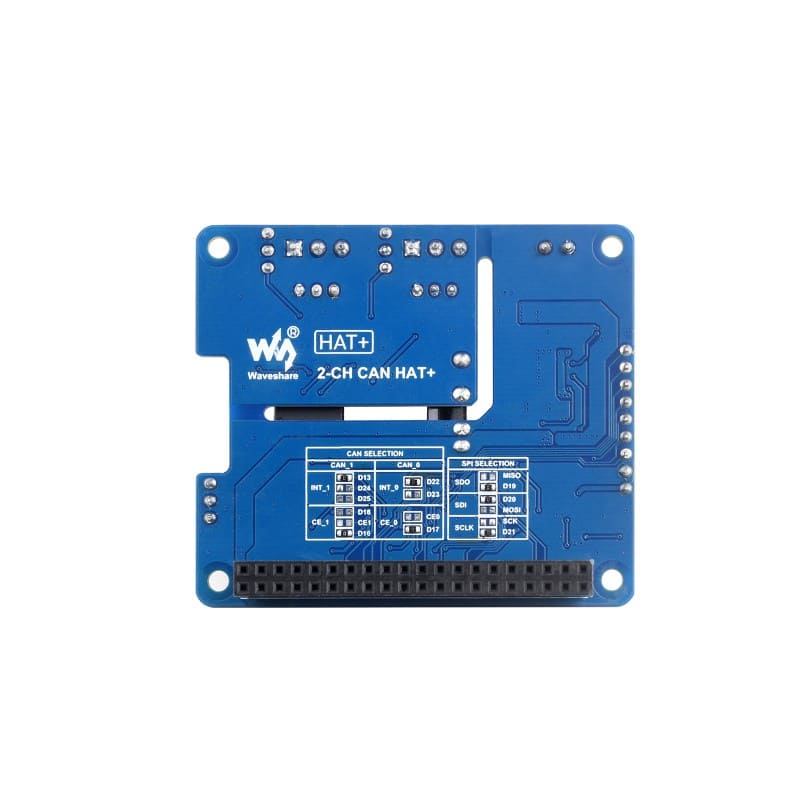

Multi-Channel CAN Bus Communication Support, With Reserved Solder Pads On The Back For CAN Channel Chip Selection And Interrupt Pin Selection. Supports Stacking Two Of This Module For Expanding 4-Ch CAN Bus, And Can Be Directly Stacked With 2-CH CAN HAT Or 2-CH CAN FD HAT, Allowing Flexible Expansion For Various CAN Application Scenarios
