SKU: 19804
Part Number: Pico-ResTouch-LCD-2.8
Korisne informacije:

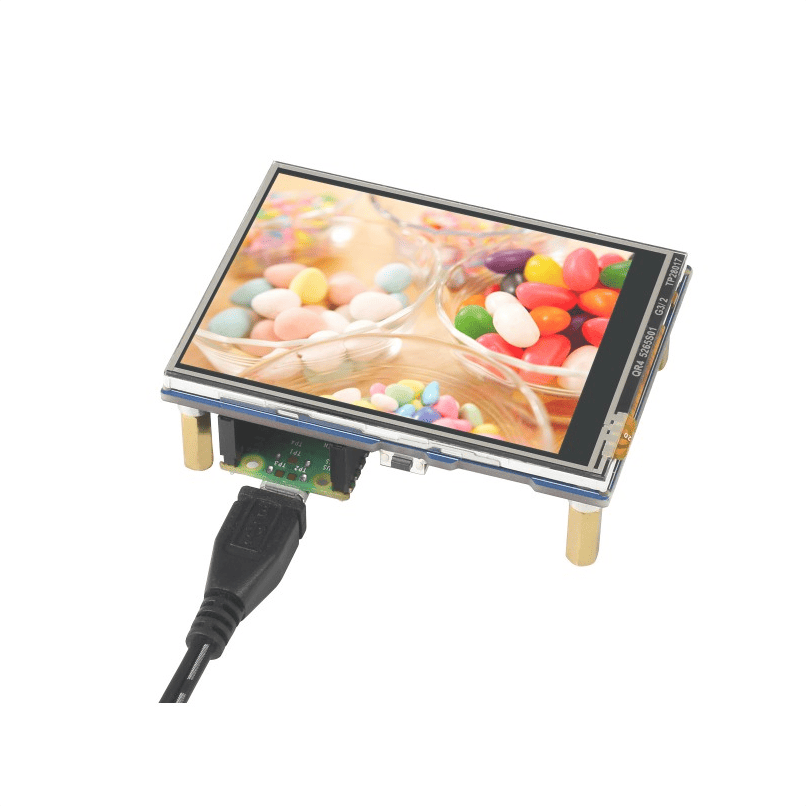

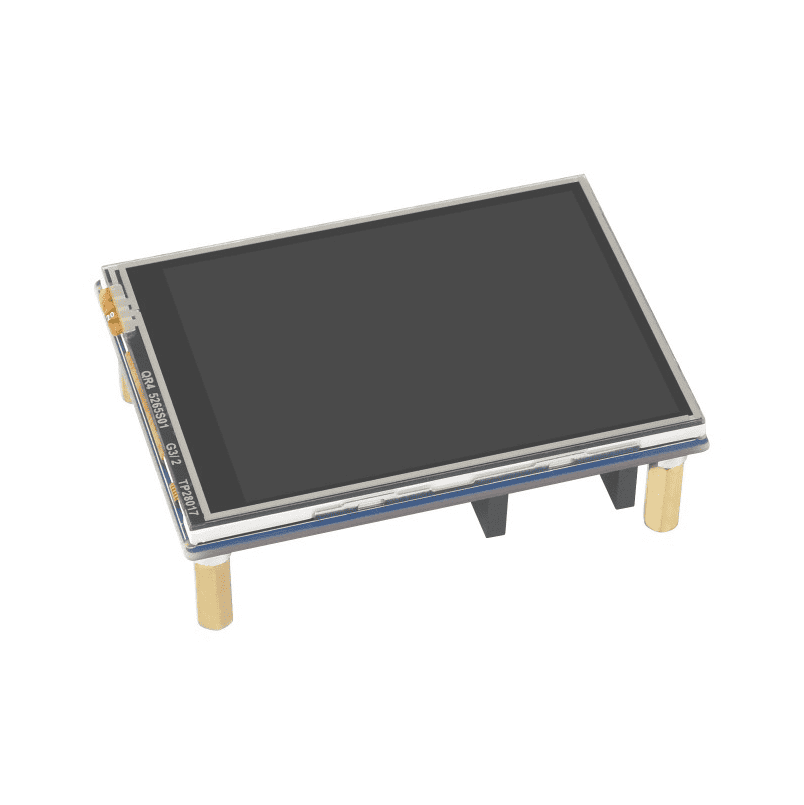

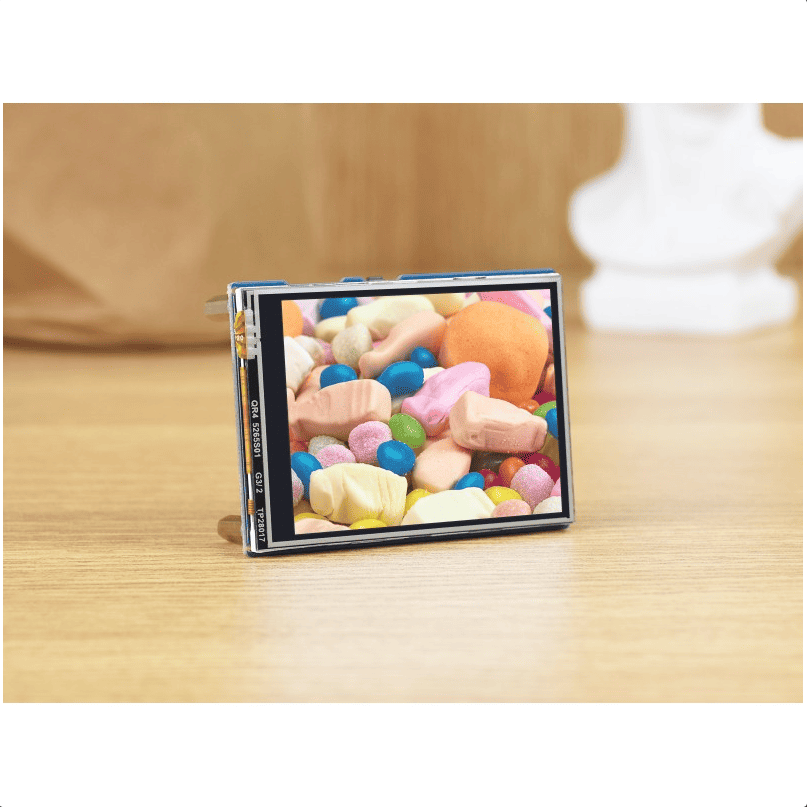

Pico-ResTouch-LCD-2.8 2.8inch Touch Display Module For Raspberry Pi Pico, 262K Colors, 320×240 Pixels, SPI Interface
2.8" Touch Display Module For Pico Resistive Touch Controller XPT2046, ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 320×240 resolution, IPS screen, 262K colors, clear and colorful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
5V |
RESOLUTION |
320×240 pixels |
COMMUNICATION INTERFACE |
SPI |
DISPLAY SIZE |
57.60 × 43.20 mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.18 × 0.18 mm |
DRIVER |
ST7789 |
DIMENSIONS |
70.20 × 50.20 mm |
TOUCH CONTROLLER |
XPT2046 |
|
|

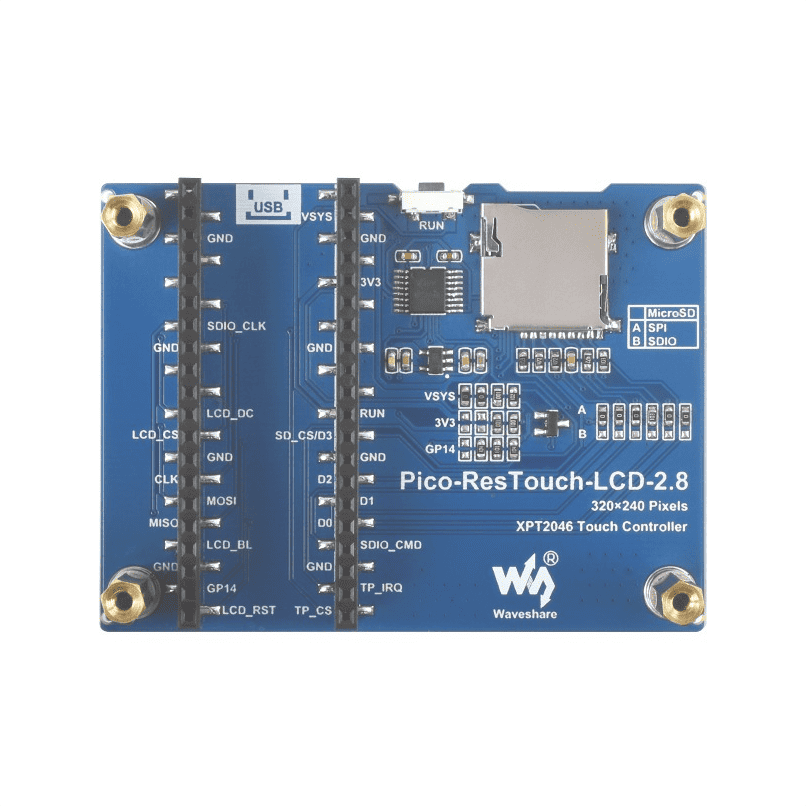

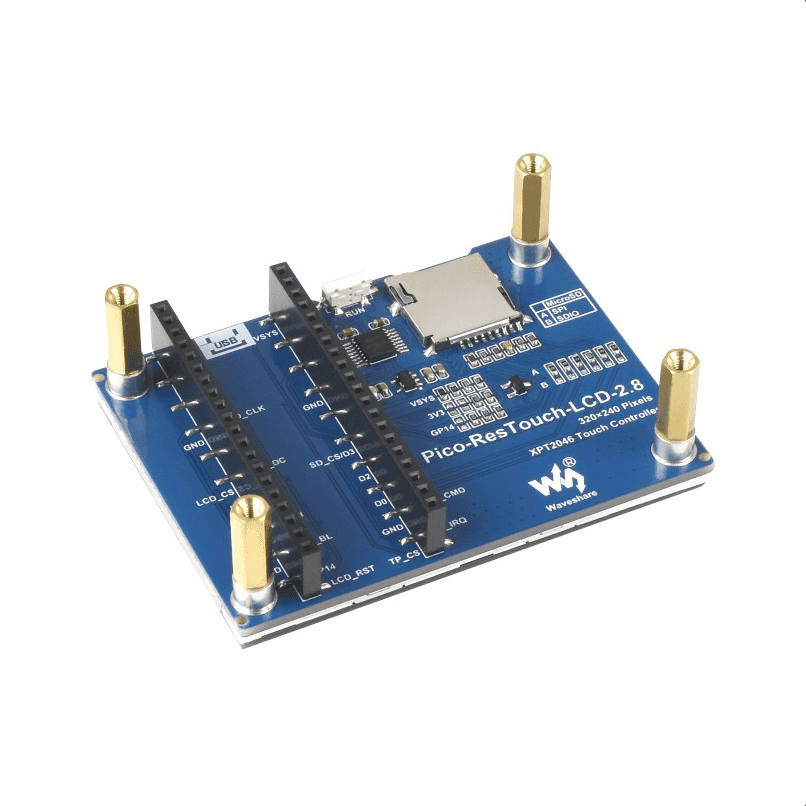

Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included. What's On Board
- Rapsberry Pi Pico header
- MicroSD card slot
- XPT2046
resistive touch controller
- RT9193-33
3.3V linear voltage regulator
- Pico reset button
Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.051 kg
- Pico-ResTouch-LCD-2.8 x1
- Standoffs pack x1
