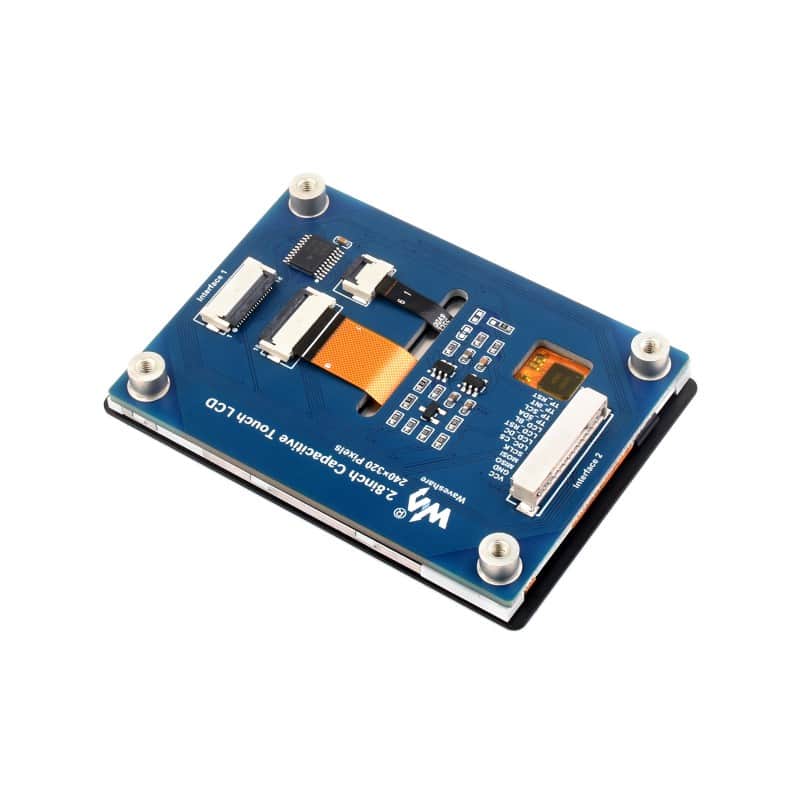

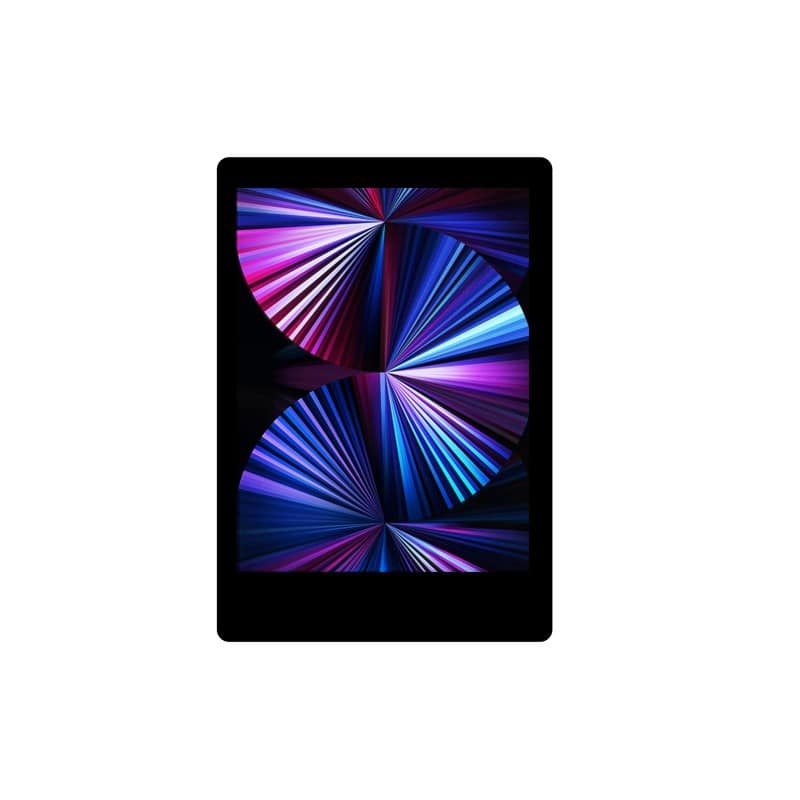

Embedded ST7789T3 Driver And CST328 Capacitive Touch Control Chip
Comes with examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 320 pixels |
|---|---|---|---|
| DISPLAY DRIVER | ST7789T3 | TOUCH DRIVER | CST328 |
| DISPLAY INTERFACE | 4-wire SPI | TOUCH INTERFACE | I2C |
| DISPLAY PANEL | TFT | TOUCH TYPE | Capacitive |
| PIXEL SIZE | 0.18 × 0.18mm | TOUCH POINTS | 5-point touch |
| DISPLAY SIZE | 43.20 × 57.60mm | MODULE SIZE | 50.54 × 73.06mm |
Embedded With ST7789T3 Driver Chip And CST328 Capacitive Touch Control Chip, Supports 5-Point Touch
Compatible With 3.3V / 5V Operating Voltage
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, With High Expansibility
Options For 13PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

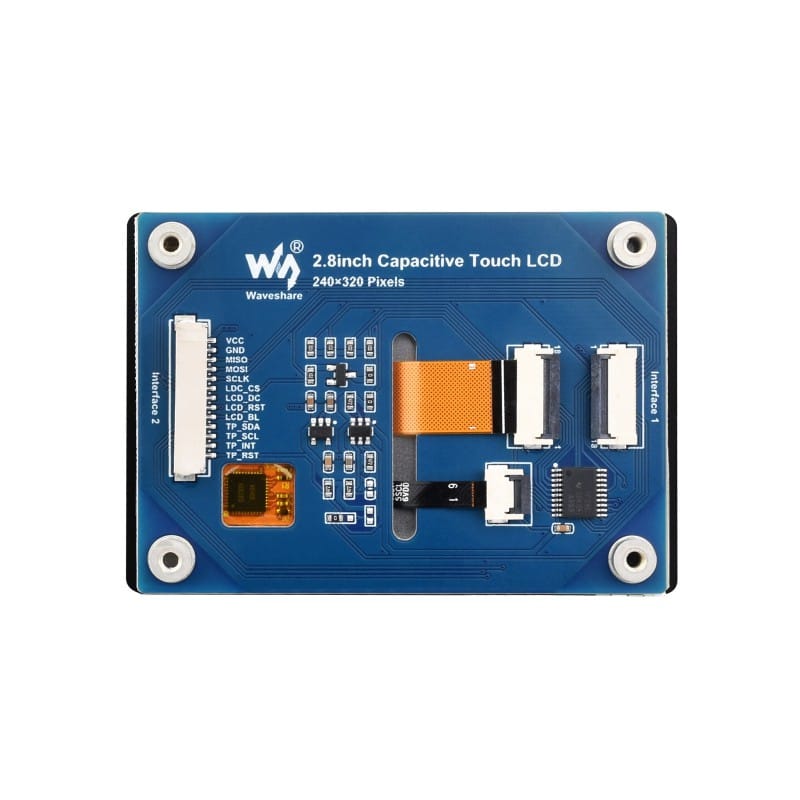

| PIN | DESCRIPTION | 13PIN PIN NO. | 18PIN PIN NO. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| GND | Ground | 2 | 3 |
| MISO | SPI MISO pin | 3 | 6 |
| MOSI | SPI MOSI pin | 4 | 5 |
| SCLK | SPI CLK pin | 5 | 4 |
| LCD_CS | LCD Chip Selection, low active | 6 | 9 |
| LCD_DC | LCD Data/Command selection (high for data, low for command) | 7 | 7 |
| LCD_RST | LCD Reset pin, low active | 8 | 8 |
| LCD_BL | LCD Backlight pin | 9 | 2 |
| TP_SDA | Touch panel Data pin | 10 | 14 |
| TP_SCL | Touch panel Clock pin | 11 | 13 |
| TP_INT | Touch panel Interrupt pin | 12 | 15 |
| TP_RST | Touch panel Reset pin, low active | 13 | 12 |
Connecting with Raspberry Pi 5
Connecting with ESP32S3
* for reference only, the Raspberry Pi 5 and ESP32S3 driver board are NOT included, please check the Package Content for the detailed part list.
