SKU: 17009
Part Number: 2.23inch OLED HAT
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/2.23inch_OLED_HAT 2.23 inch OLED display HAT
2.23inch OLED display HAT for Raspberry Pi, 128×32 pixels, SPI/I2C interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Overview

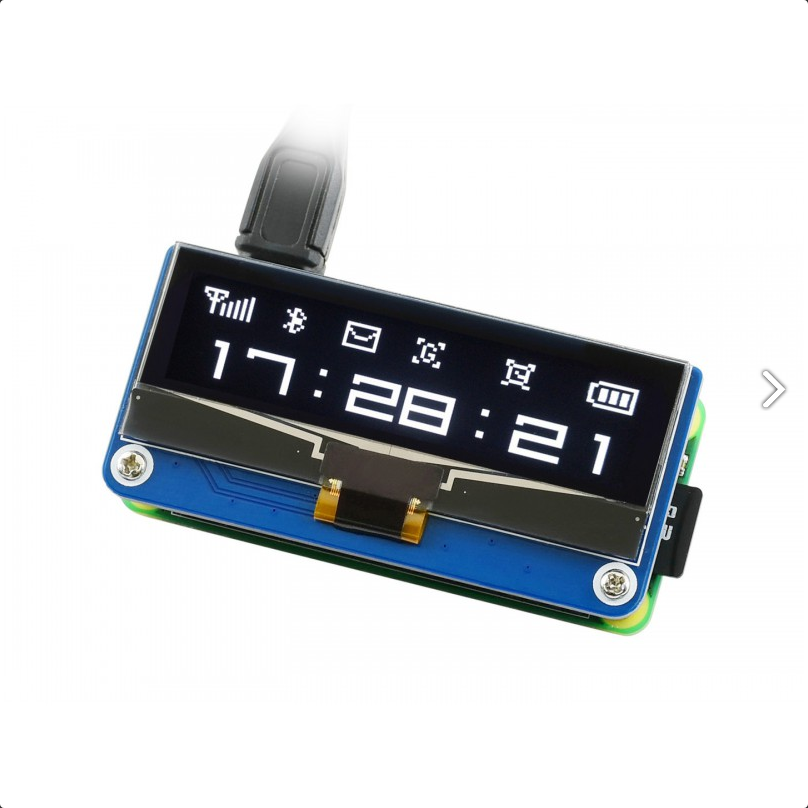

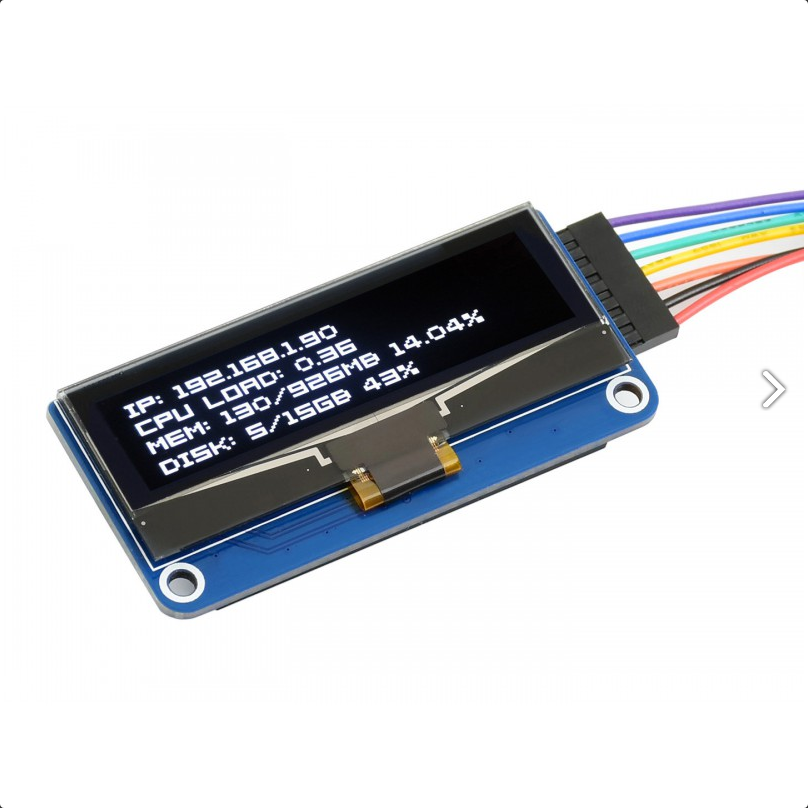

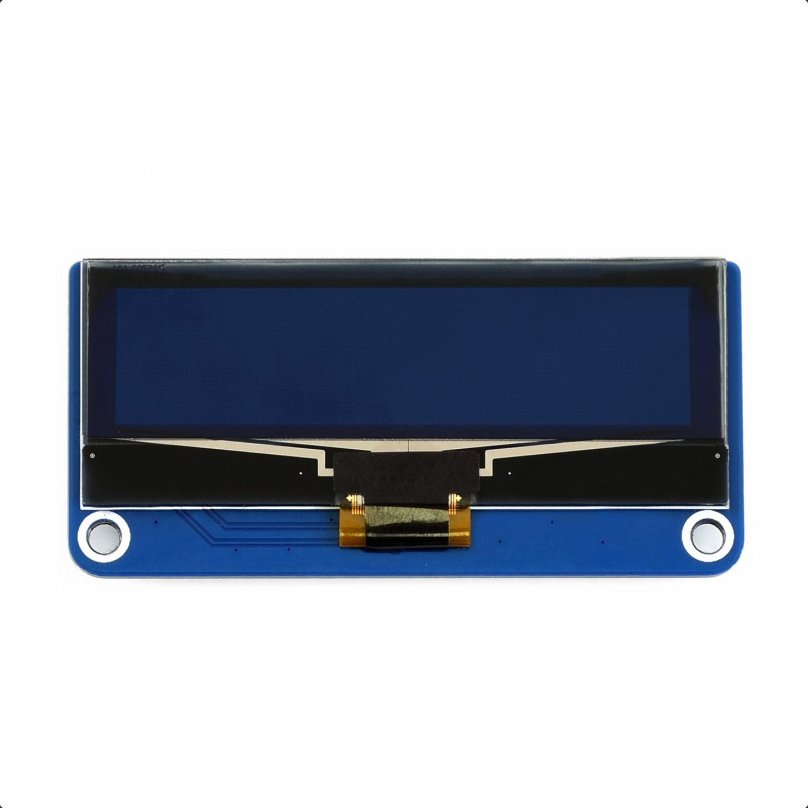

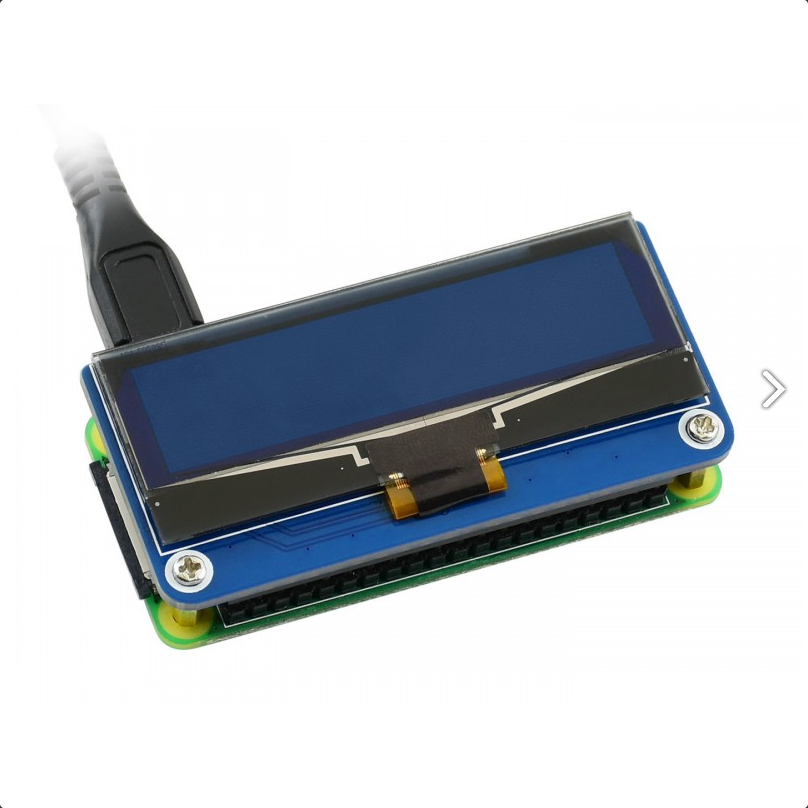

This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
█ Features

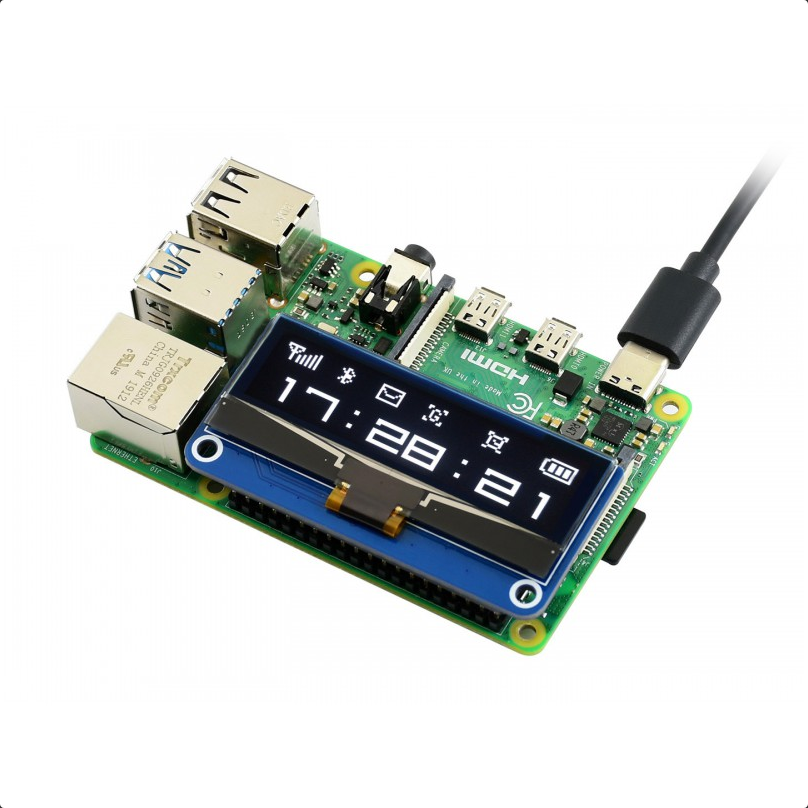

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

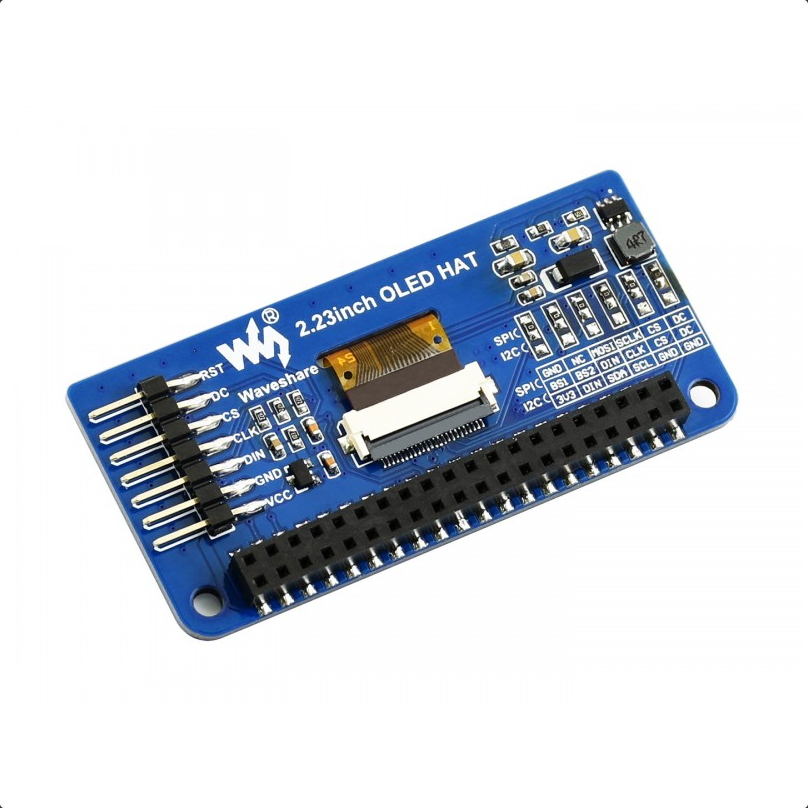

- Optional interfaces: SPI (default), or I2C, configured via onboard resistor
- Brings control pins for host boards like Arduino/STM32
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
█ Specifications
- Driver: SSD1305
- Interface: SPI / I2C
- Display size: 2.23inch diagonal
- Display color: white
- Resolution: 128×32
- Viewing angle: >160°
- Power supply voltage: 3.3V/5V
- Logic level: 3.3V
█ Demo

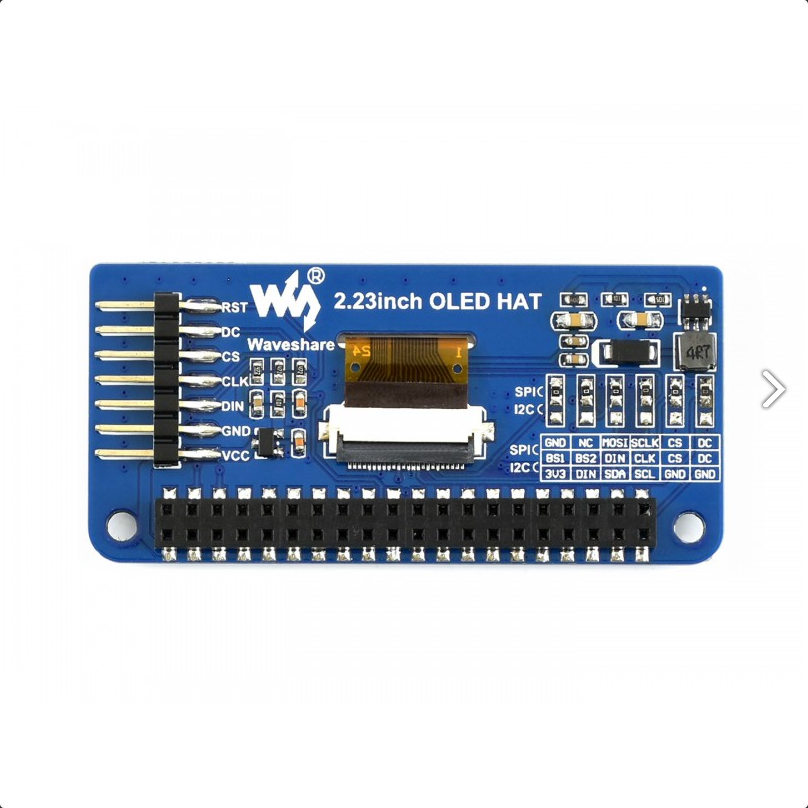

█ Interface
SYMBOL |
Raspberry Pi PIN (BCM) |
DESCRIPTION |
VCC |
3V3/5V |
Power input |
GND |
GND |
Ground |
DIN |
MOSI |
SPI data input |
CLK |
SCLK |
SPI clock input |
CS |
CE0 |
Chip selection, low active |
DC |
P24 |
Data/Command selection (high for data, low for command) |
RST |
P25 |
Reset, low active |
█ Dimensions
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 2.23inch OLED HAT x1
- RPi screws pack (2pcs) x1
Weight: 0.019 kg
