SKU: 23414
Part Number: RGB-5050-5V-IP65-60D-1M
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/RGB-5050-5V-IP65-60D-1M WS2812 Digital RGB LED Strip, High Brightness, Energy-Saving And Low Power Consumption, Cuttable And Programmable
WS2812 Digital RGB LED Strip Programmable LED, Natural & Bright Color
Energy-saving, Colorful And Widely Used
Specifications
LED type |
5050 |
IC |
WS-2812B |
Voltage |
5V |
Color |
RGB |
PCB width |
10mm |
Beam angle |
120° |
Operating power |
0.3W/LED |
Length |
1m/roll |
Operating temperature |
-25~80℃ |
Grey scale |
256 Adjustable (per color) |
LED Quantity |
60 LEDs/M |
Degree of protection |
IP65 |
Connection |
3PIN SM connector cable + 2PIN voltage adding cables |
Installation method |
with 3M double-sided tape on the back |
Cable definition |
Red cable (5V positive), white cable (5V negative) and green cable (DATA signal) |
Product Details
* Note: Please cut it from the solder joint to avoid or reduce unnecessary waste and damage. Flexible And Bendable High Light Transmittance And Flexible, Insulated And Anti-Leakage,
Can Be Bent Into Any Shape
IP65 Protection Rating Covered With High-Transparency Resin To Protect Against Small Water Jets
Installation Mode

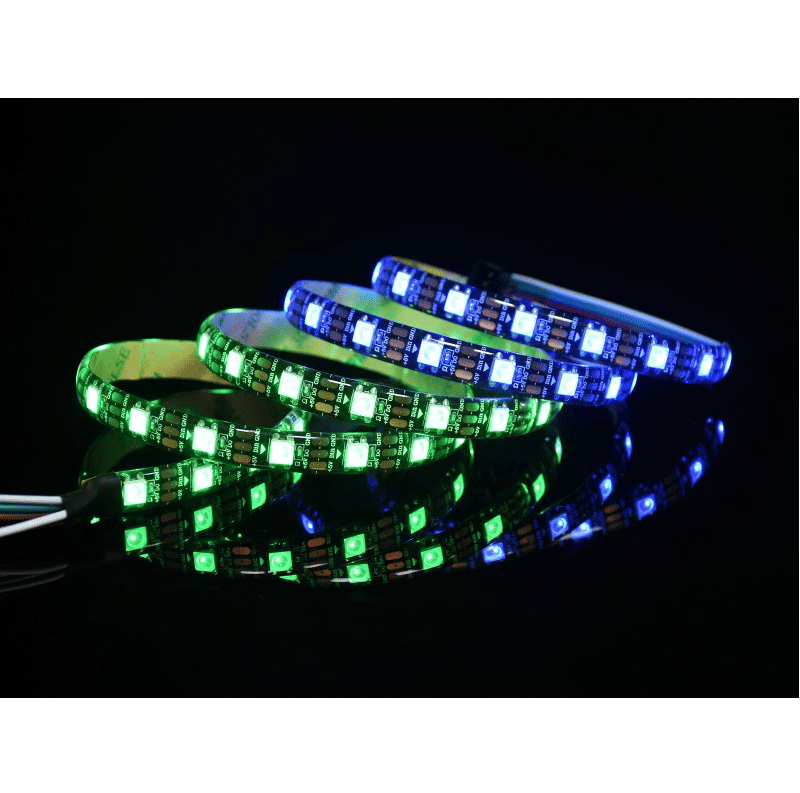

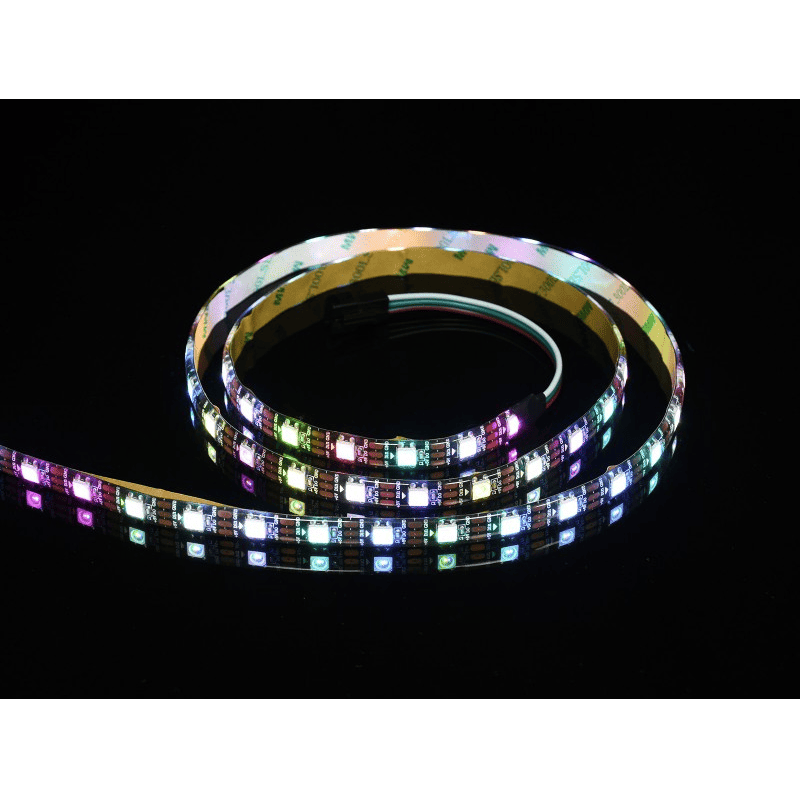

Product Demonstration
Product Show
Dimensions
- PACKAGE CONTENT
Weight: 0.049 kg
RGB-5050-5V-IP65-60D-1M x1
