SKU:28505
Part No.:14inch 2160x1440 LCD (EU)
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/14inch_2160x1440_LCD 14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch, Optical Bonding Toughened Glass Panel, 72%NTSC, 100%sRGB

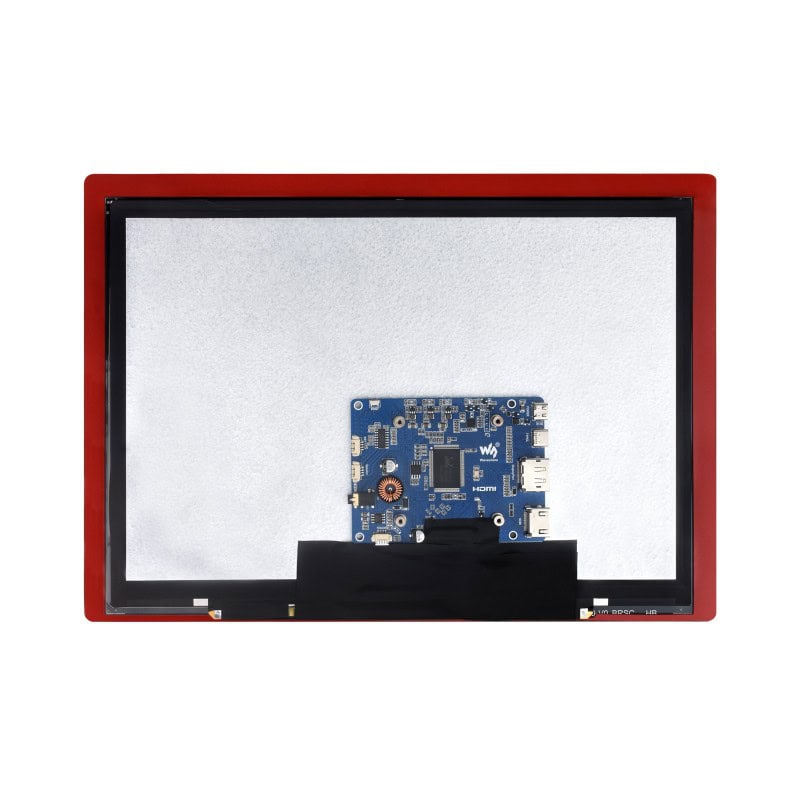

14″ 2K Capacitive Touch Display High Resolution | Full Color | 10-Point Touch
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung...(wired projection)
Automatic recognition of three signal sources Supports automatic recognition of HDMI / DP / Type-C signal sources
* for reference only, please refer to the package content for the detailed part list.
Connection Examples Working with Raspberry Pi 5
Working with Jetson series board
Working with mini PC
Working with laptop
Working with Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
Wide viewing angle IPS display panel Excellent Display & Color Performance
Wide viewing angle up to 178°, color gamut up to 72% NTSC
100% sRGB covers more gamut area of red, green and blue, Designer-professional-grade color gamut
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Application Scenarios
Interface Introduction
Dimensions
Package content: Weight: 1.482 kg
- 14inch 2160x1440 LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- Type-C dual plug cable ~1m x1
- DP dual plug cable ~1m x1
- USB Type A to Type C cable ~1m x1
- Triangular stand x1
- Cleaning cloth x1
- OPTIONS 5V 3A Type-C power adapter x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
