SKU:28482
Part No.:11.6inch 1768x828 LCD
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/11.6inch_1768x828_LCD 11.6inch Capacitive Touch Display, In-Cell Technology, 1768×828, 178° Wide Viewing Angle, HDMI/Type-C Display Interface, IPS Panel, 10-Point Touch
11.6″ Capacitive Touch Display High Resolution | Multi-Point Touch | Full Color
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung, OPPO...(wired projection)
Connection Examples Working with Raspberry Pi 5
Working with Jetson Series Board
Working with mini PC
Working with laptop
Working With Full-Featured Type-C Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
IPS Display Panel Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- In-Cell touch technology, built-in touch sensor for a lighter and thinner design
In-Cell Touch Panel Technology Featuring a simplified structure with Ultra-narrow bezel and Slim thickness, while offering rapid response. Supports customization of glass cover shape and Logo
Normal Display
In-Cell Touch Display Supports DDC/CI backlight adjustment Full-featured Type-C interface Support audio and video transmission, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)

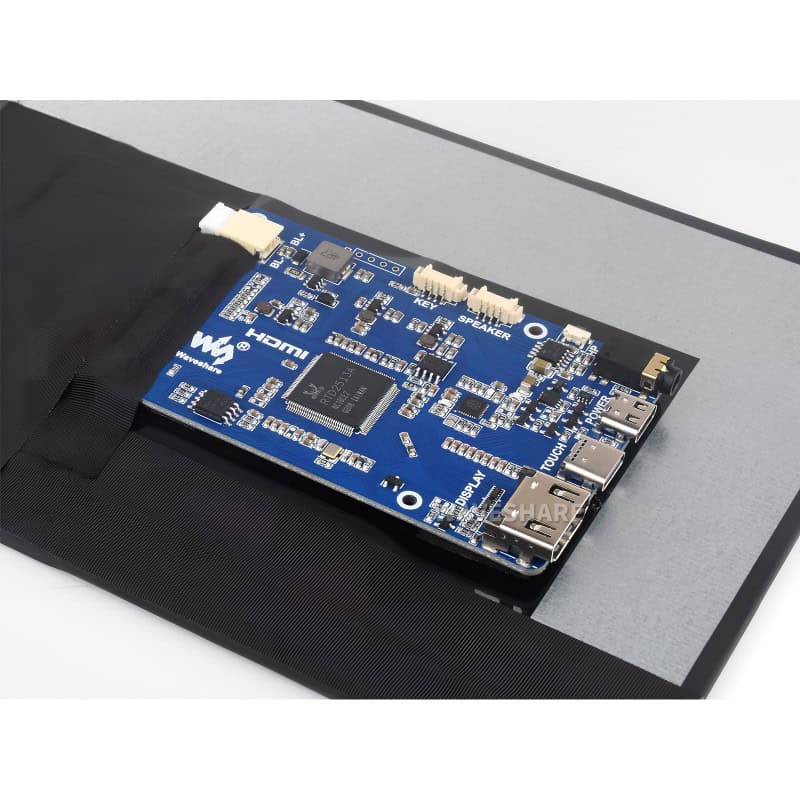

Interface Introduction
Dimensions
Package content: Weight: 0.847 kg
- 11.6inch 1768×828 LCD x1
- HDMI flat cable ~1m x1
- USB-A to Type-C cable ~1m x1
- Type-C dual-plug cable x1
- Triangular stand x1
- HDMI to Micro HDMI adapter x1
- Cleaning cloth x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
