SKU: 24229
Part Number: 100X Microscope Lens for Pi

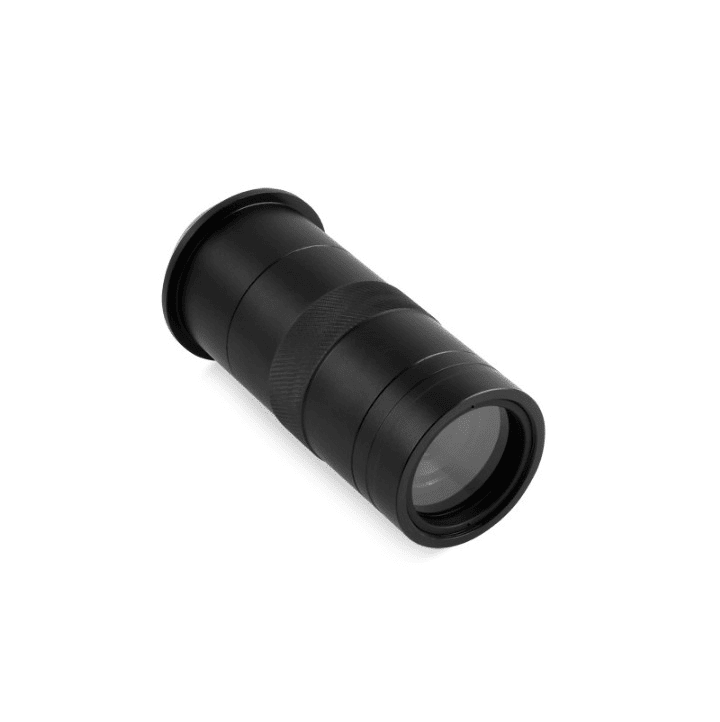

100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera
100X Microscope Lens For Pi
Industrial Microscope Lens With 100X Magnification
Specifications
OPTICAL MAGNIFICATION |
0.12X ~ 1.8X |
ZOOM RATIO |
15:01 |
IMAGE FORMAT |
1/2" |
MOUNT |
C/CS (C-CS adapter included) |
DISTORTION |
< -0.1% |
OPERATING TEMPERATURE |
-20 ~ +80°C |
OPERATING DISTANCE |
55 ~ 285mm |
OBJECT DISTANCE |
2.4 ~ 36mm |
OUTLINE DIMENSIONS |
Φ39 × 112mm |
LENS STRUCTURE |
aluminum alloy + 4 groups 5 elements |
100X Magnification Lens
The Details And Tiny Things Are All Clear And Visible
- for reference only, due to the structural limitation of the microscope lens, additional fill light is required for illumination during use
- please refer to the package content for the detailed part list
Application Examples
Mounting To The Camera Module
Suitable For Raspberry Pi HQ Camera

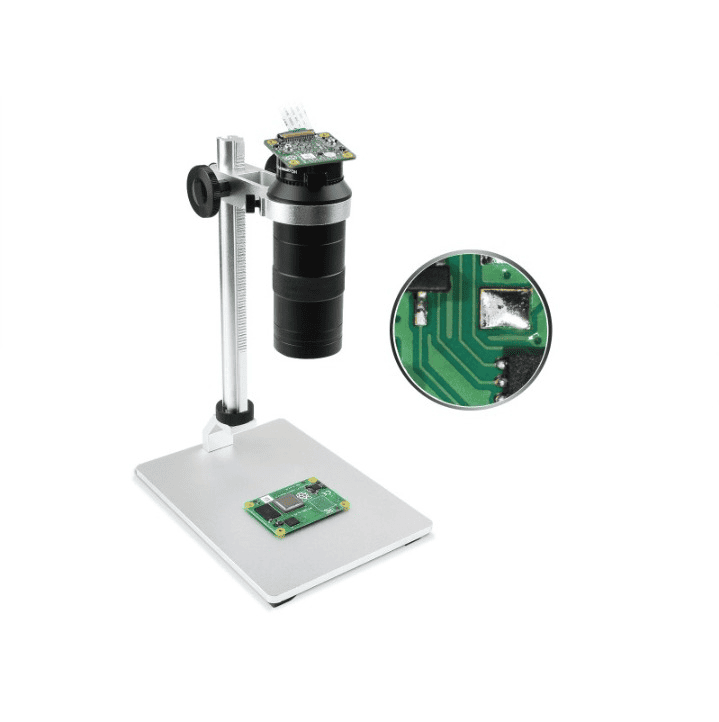

Working With Raspberry Pi
- Raspberry Pi boards and Raspberry Pi HQ Camera in the photos are NOT included
- To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

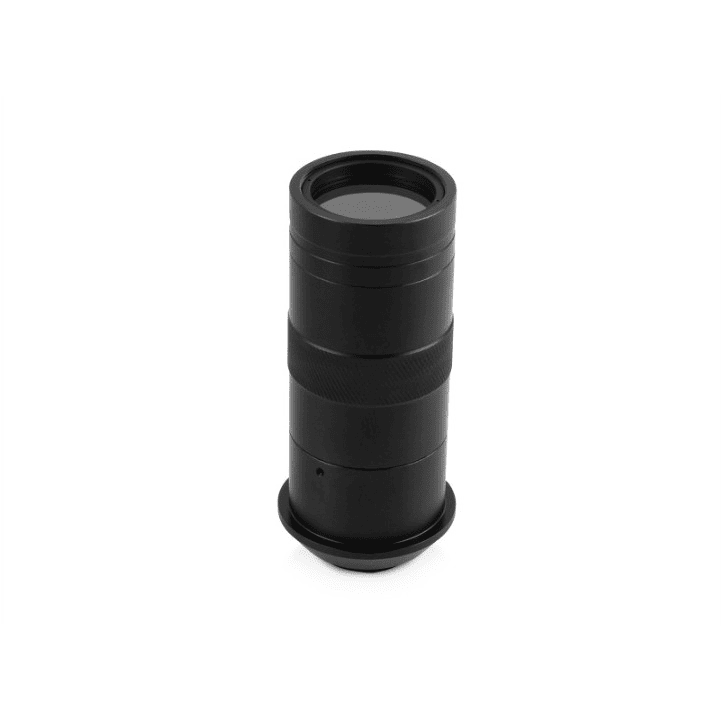

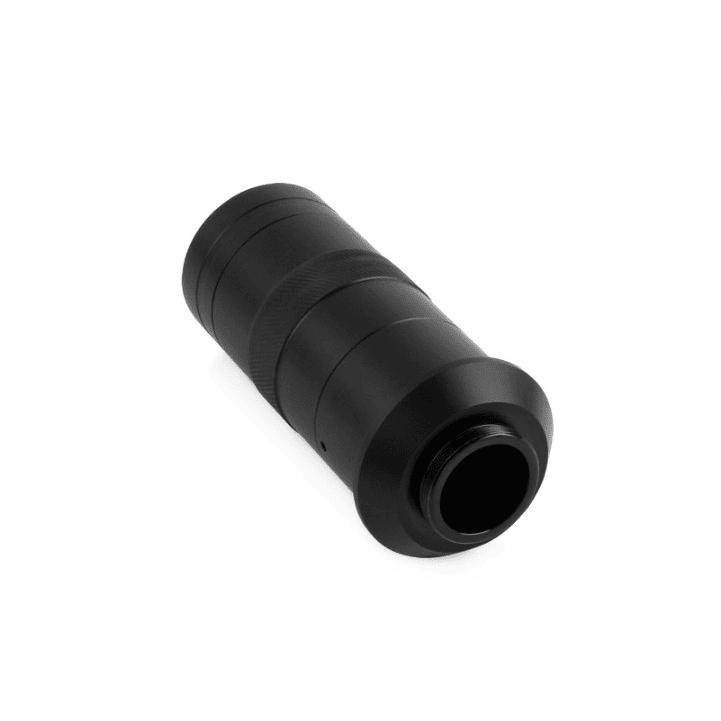

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.202 kg
100X Microscope Lens for Pi ×1
