SKU: 23822
Part Number: 1.9inch LCD Module
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/1.9inch_LCD_Module 1.9 inch LCD Display Module
1.9 inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors, Embedded ST7789V2 Driver Chip, Using SPI Interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
1.9″ |
170×320 |
SPI |
262K RGB |
ST7789 V2 |
Display Panel |
|
|
|
|
 |
|
|
|
|
IPS |
|
|
|
|
█ Overview
- 170×320 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
- Comes with examples for Raspberry Pi, Arduino, STM32, etc.
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
170 × 320 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
22.70 × 42.72 mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.1335 × 0.1335 mm |
DRIVER |
ST7789V2 |
MODULE SIZE |
27.3 × 51.2mm |

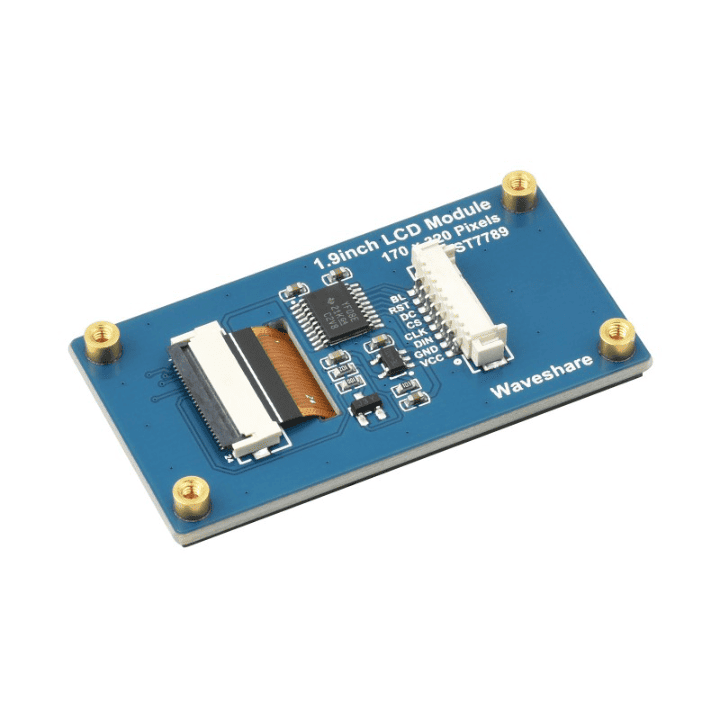

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

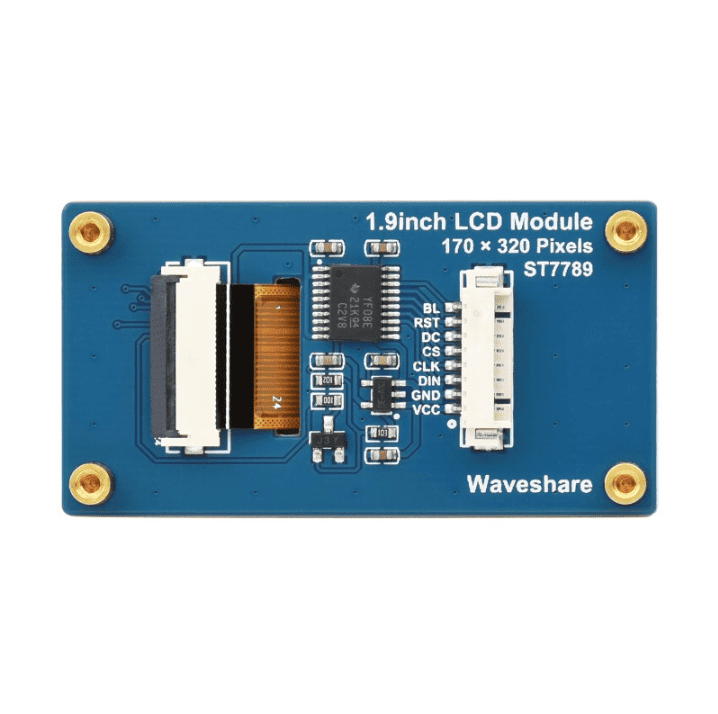

BL |
Backlight |
RST |
Reset, low active |
DC |
Data/Command selection (high for data, low for command) |
CS |
Chip selection, low active |
CLK |
SPI clock input |
DIN |
SPI data input |
GND |
Ground |
VCC |
Power (3.3V / 5V input) |
█ Hardware Connection

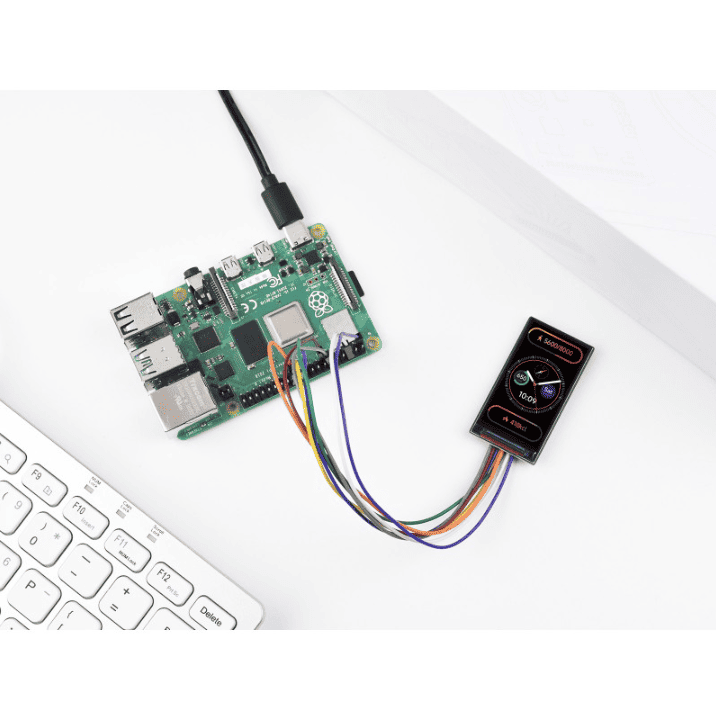

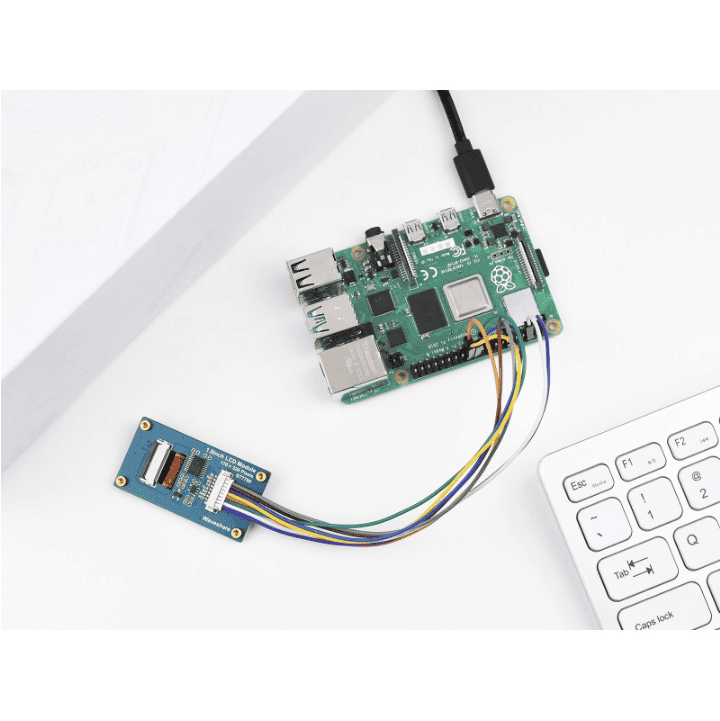

Connecting With Raspberry Pi
Connecting With Arduino Board

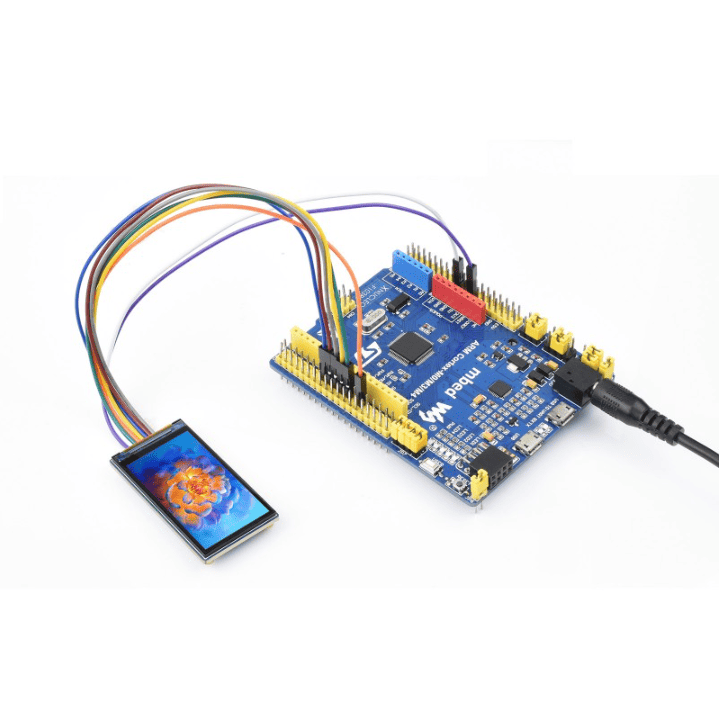

Connecting With STM32
█ Usage Example
█ Product Show
█ Dimensions (mm)
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.9inch LCD Module x1
- GH1.25 20cm 8Pin cable x1
Weight: 0.015 kg
Komentari
