Compatible With 3.3V / 5V Power Input
Embedded ST7789V2 Driver And CST816T Capacitive Touch Control Chip

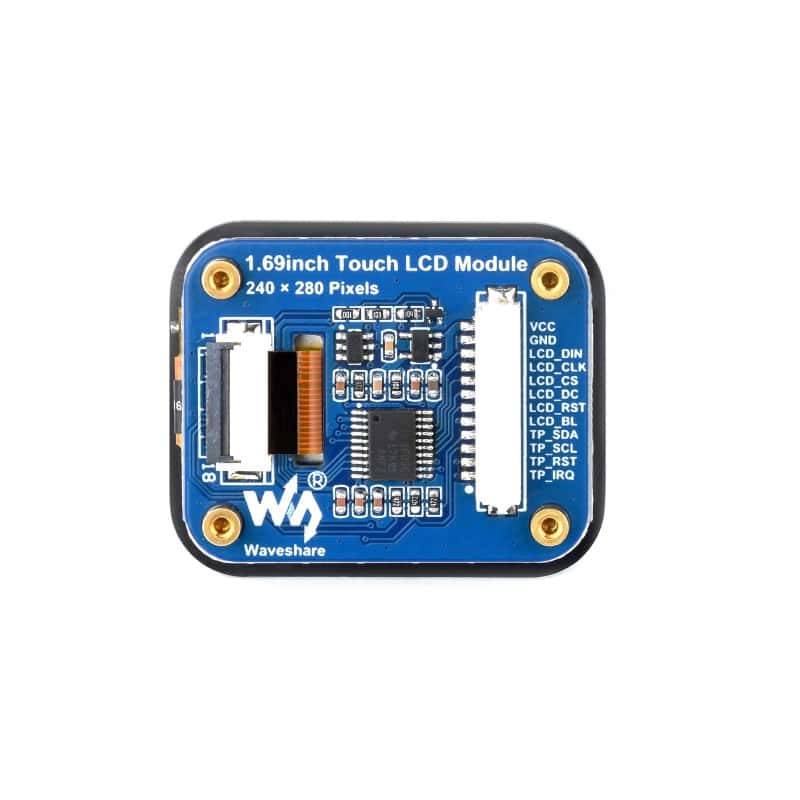

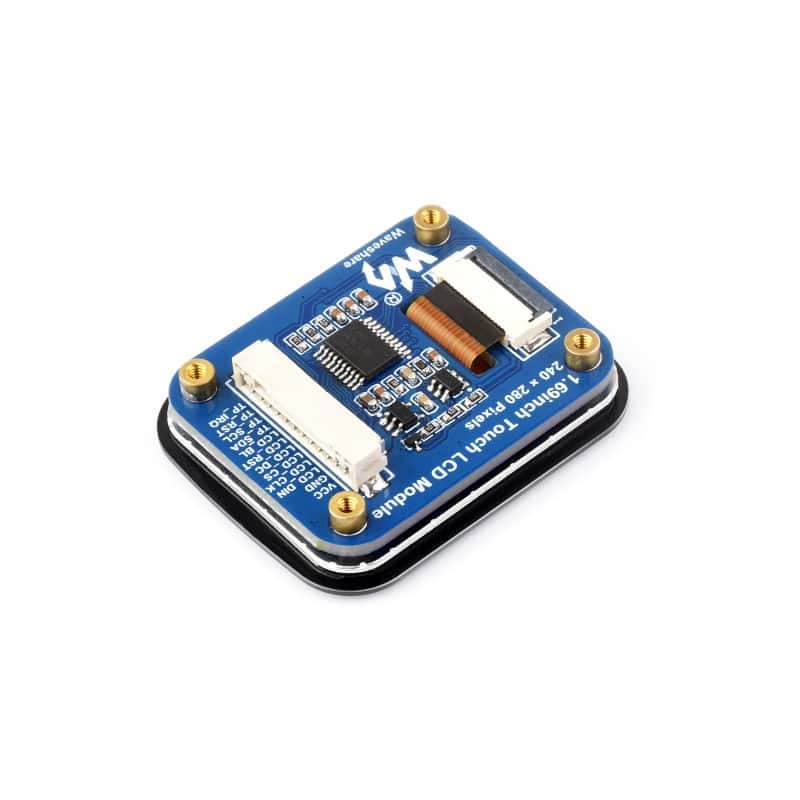

| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| LCD_DIN | SPI MOSI pin |
| LCD_CLK | SPI Clock pin |
| LCD_CS | LCD Chip Selection, low active |
| LCD_DC | LCD Data/Command selection (high for data, low for command) |
| LCD_RST | LCD Reset, low active |
| LCD_BL | LCD Backlight |
| TP_SDA | TP Data pin |
| TP_SCL | TP Clock pin |
| TP_RST | TP Reset, low active |
| TP_IRQ | TP Interrupt pin |
| 1.69INCH TOUCH LCD MODULE | RASPBERRY PI (BCM) | ESP32S3 | PICO | ARDUINO | STM32 |
|---|---|---|---|---|---|
| VCC | 3.3V | 3.3V | 3.3V | 5V | 3.3V |
| GND | GND | GND | GND | GND | GND |
| LCD_DIN | 10 | 11 | GP11 | 11 | PA7 |
| LCD_CLK | 11 | 10 | GP10 | 13 | PA5 |
| LCD_CS | 8 | 9 | GP9 | 10 | PB6 |
| LCD_DC | 25 | 8 | GP14 | 7 | PA8 |
| LCD_RST | 27 | 14 | GP8 | 8 | PA9 |
| LCD_BL | 18 | 2 | GP15 | 9 | PC7 |
| TP_SDA | 2 | 6 | GP6 | SDA | PB9 |
| TP_SCL | 3 | 7 | GP7 | SCL | PB8 |
| TP_RST | 17 | 16 | GP16 | 4 | PA10 |
| TP_IRQ | 4 | 17 | GP17 | 3 | PB10 |
Connecting with Raspberry Pi 5
