1.54inch e-Paper Module (G)

Šifra: w30475

1.290,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: ekran, displej
Težina po komadu: 0.025 Kg

n>: 1.54inch e-Paper Module (G)
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/1.54inch_e-Paper_Module_(G)

1.54″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

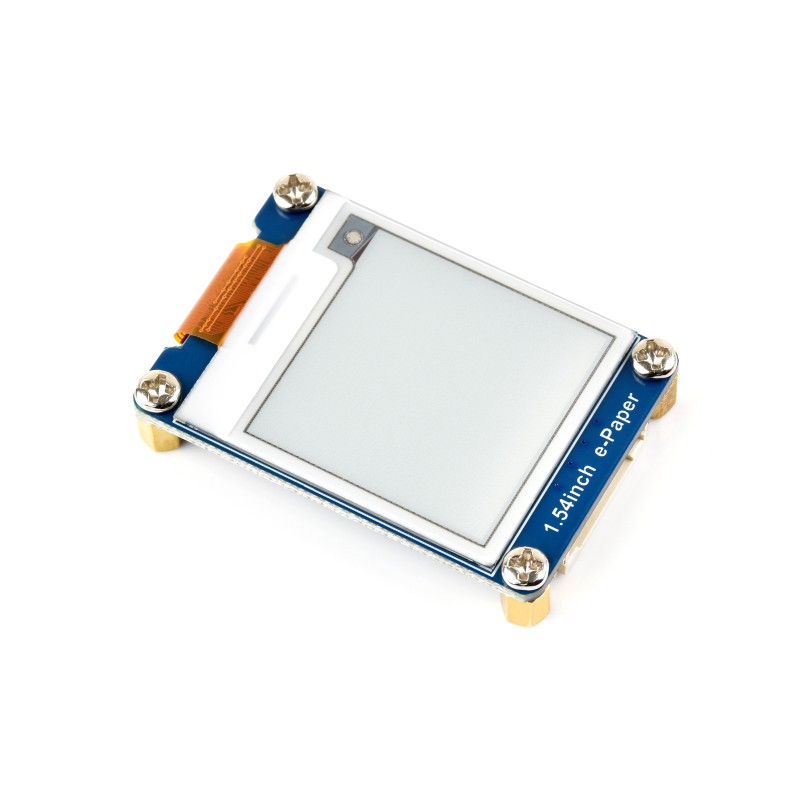

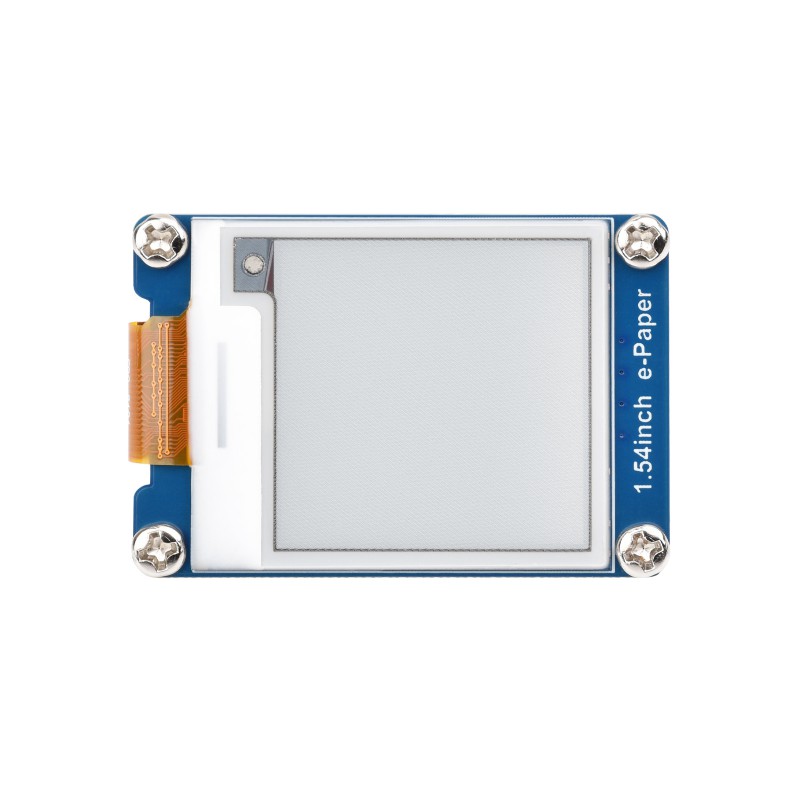

1.54inch e-Paper display (G) with driver board, front view

Note: the driver board is optional, please refer to the Package Content for detailed part list

1.54 inch e-Paper Module (G)
with driver board

Features at a glance

No backlight, keeps displaying last content for a long time even when power down

Ultra low power consumption, basically power is only required for refreshing

Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino)

Optional for e-Paper driver board:
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	Red/Yellow/Black/White
operating voltage	with driver board: 3.3V/5V	display color	Red/Yellow/Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 37.32 × 31.8 × 1.00 mm	fast refresh time	15s
outline dimensions	with driver board: 48.00 × 33.00mm	full refresh time	20s
display size	27.0 × 27.0mm	refresh power	<30mW
DOT PITCH	0.135 × 0.135mm	standby current	<0.01uA (almost none)
RESOLUTION	200 × 200 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino

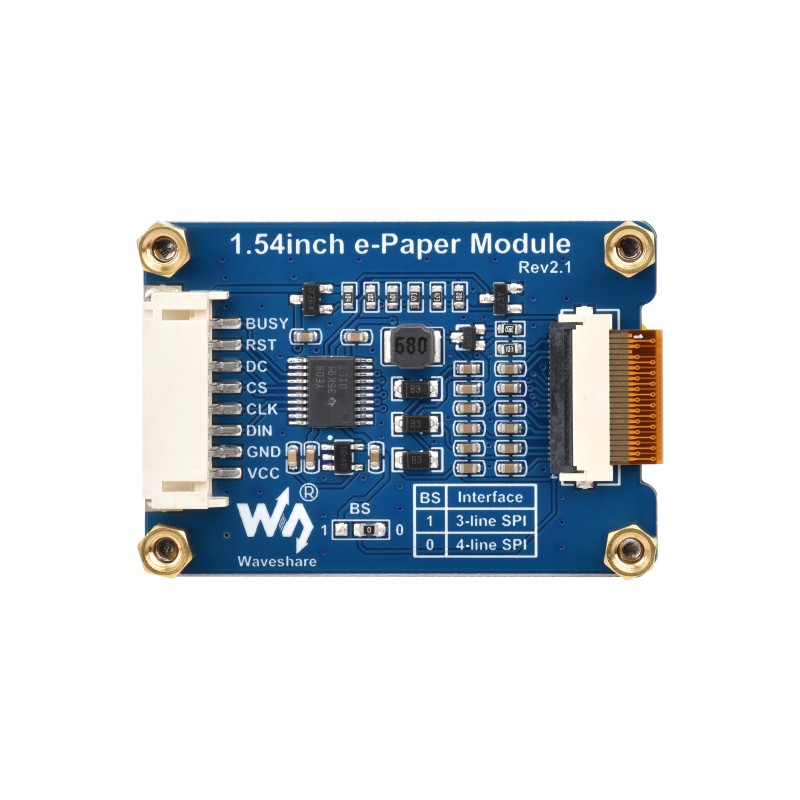

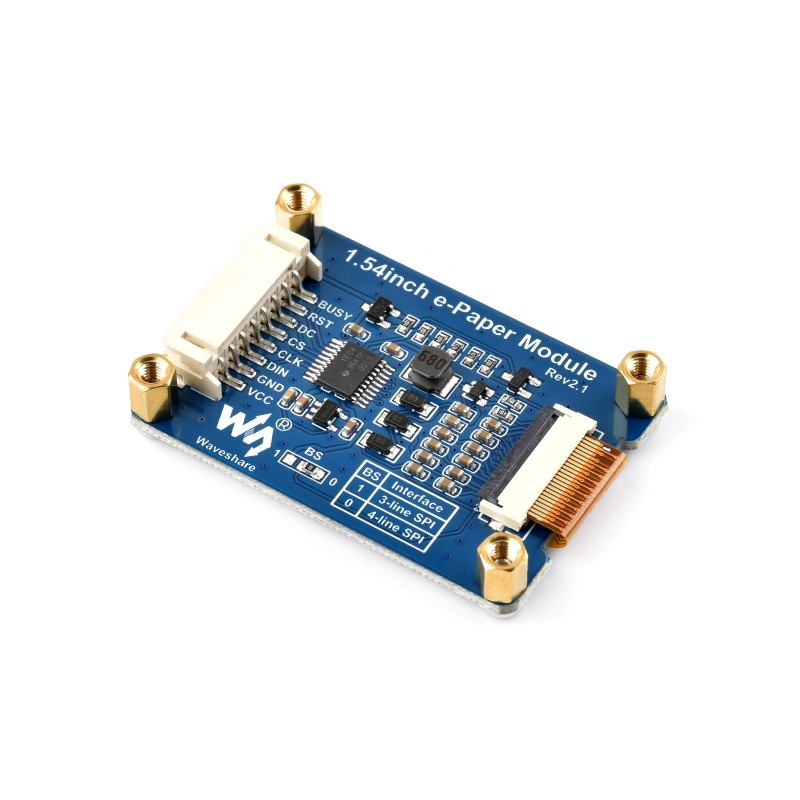

1.54inch e-Paper display (G) with driver board, onboard SPI control interface

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin
