SKU: 25093
Part Number: 1.5inch OLED Module (B)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.5inch_OLED_Module_(B) 1.5inch OLED Display Module
1.5inch OLED Display Module, Embedded SH1107 Driver Chip, SPI / I2C Communication
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
1.5″ |
128×128 |
SPI/I2C |
Black/White |
SH1107 |
Display Panel |
Connector |
|
|
|
 |
 |
|
|
|
OLED |
GH1.25 7Pin |
|
|
|
█ Overview
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
DISPLAY PANEL |
OLED |
RESOLUTION |
128 × 128 pixels |
PIXEL SIZE |
0.185 × 0.185mm |
COMMUNICATION INTERFACE |
4-wire SPI / I2C |
DRIVER |
SH1107 |
DISPLAY SIZE |
26.855 × 26.855mm |
MODULE SIZE |
38.50 × 44.50mm |

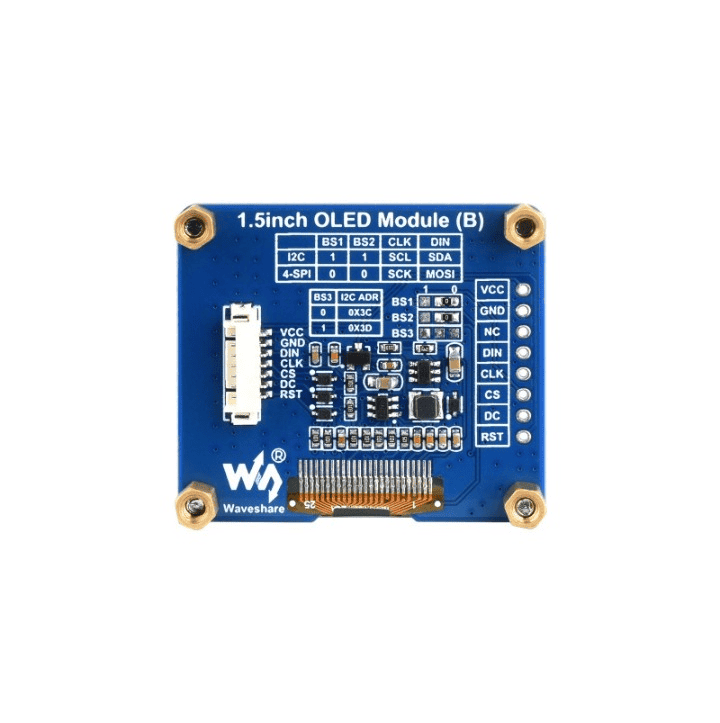

Control Interface
VCC |
Power (3.3V / 5V input) |
GND |
Ground |
DIN |
Data input |
CLK |
Clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
█ Hardware Connection
Connecting With Raspberry Pi Via SPI Interface
Connecting With Arduino Board Via SPI Interface

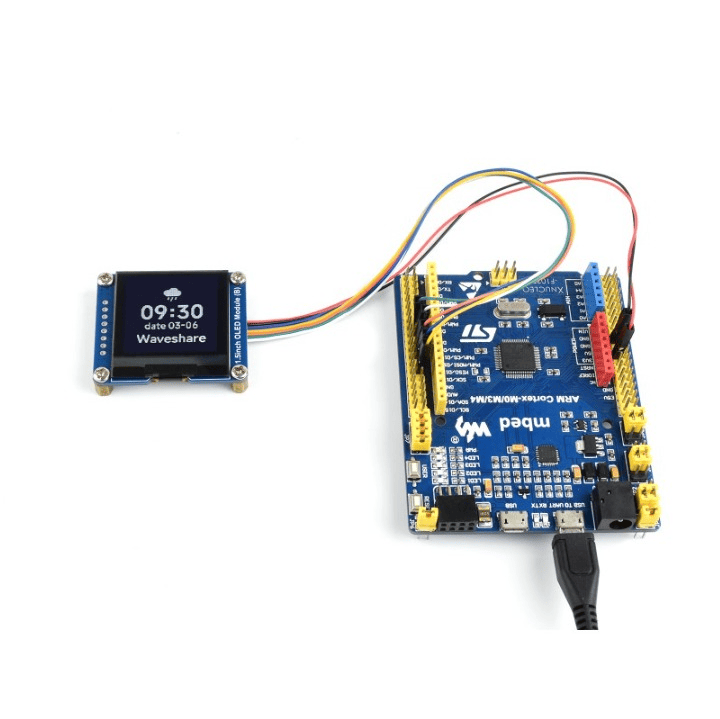

█ Usage Example
for reference only, the STM32 board is NOT included.

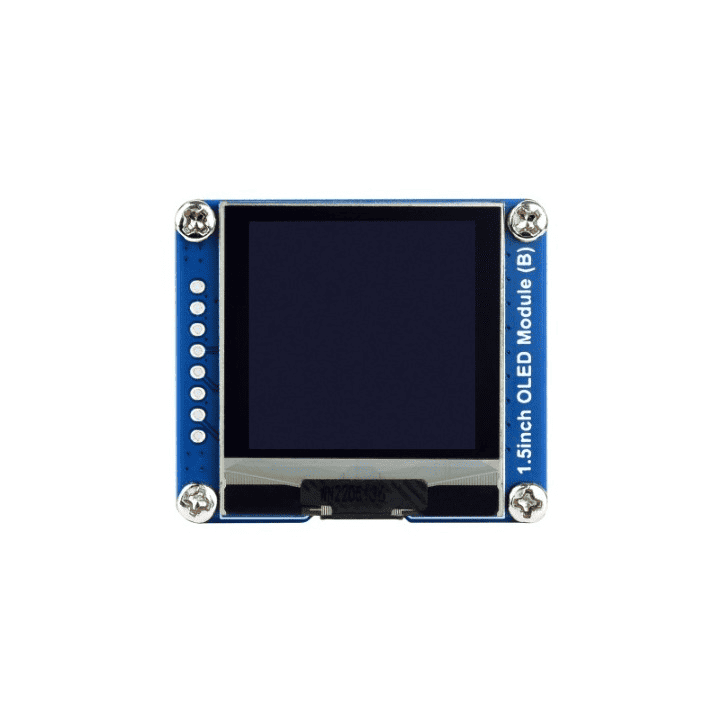

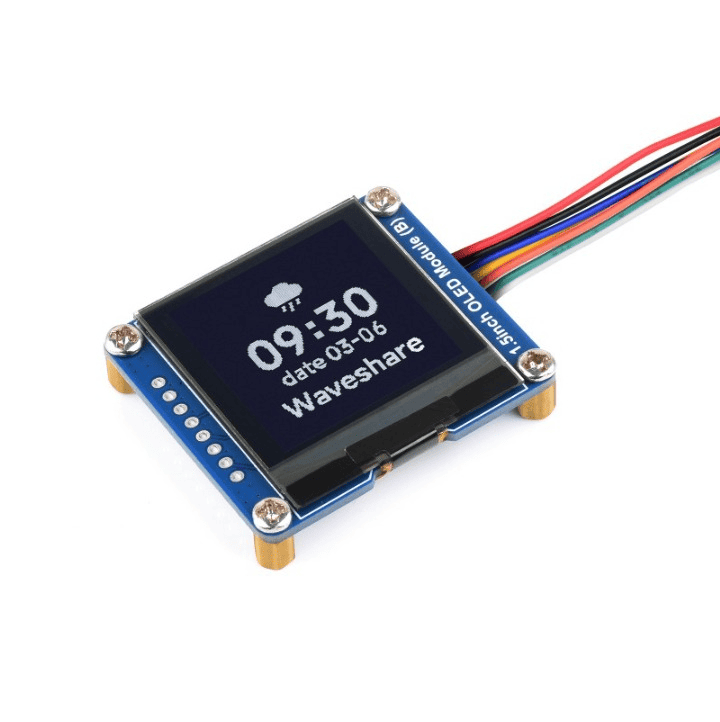

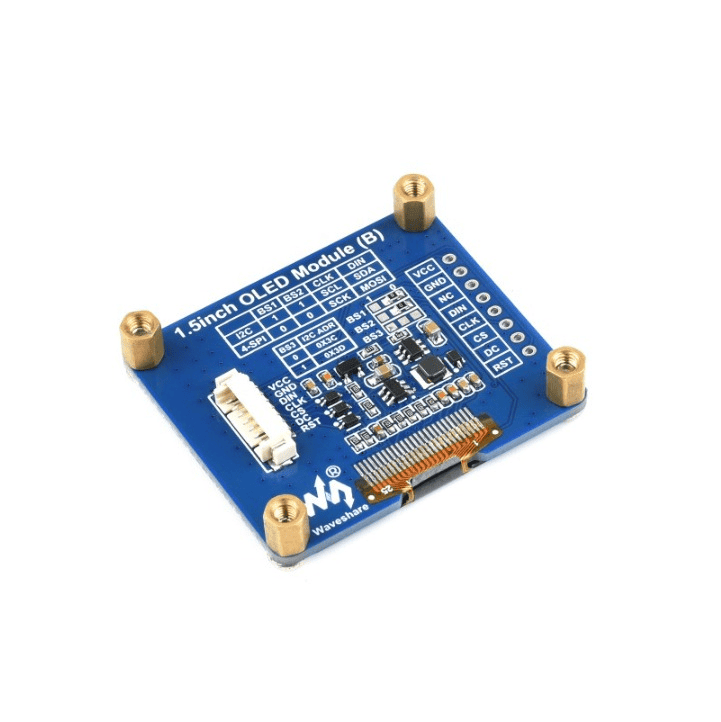

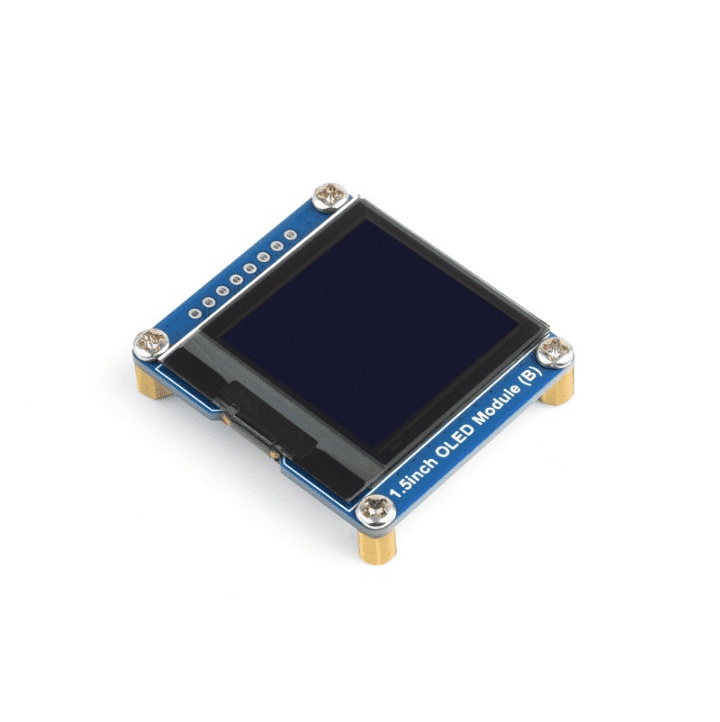

█ Product Show
█ Dimensions (mm)
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.5inch OLED Module (B) x1
- GH1.25 7PIN cable x1
Weight: 0.017 kg
