SKU: 26118
Part Number: 1.5inch LCD Module
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.5inch_LCD_Module 1.5 inch LCD Display Module

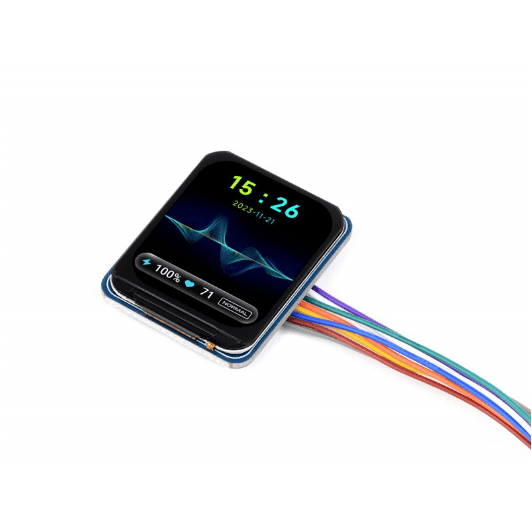

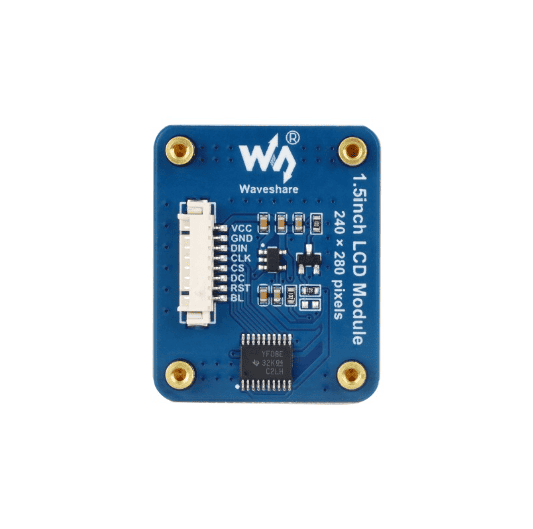

1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K Colors, Embedded NV3030B Driver, Using SPI Bus
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
1.5″ |
240×280 |
SPI |
262K RGB |
NV3030B |
Display Panel |
|
|
|
|
 |
|
|
|
|
IPS |
|
|
|
|
█ Overview
- 240×280 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
240 × 280 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
24.77×28.90mm |
DISPLAY PANEL |
IPS |
PIXEL PITCH |
0.1032×0.1032mm |
DRIVER |
NV3030B |
DIMENSIONS |
28.5×35.0mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson Series
█ Hardware Connection

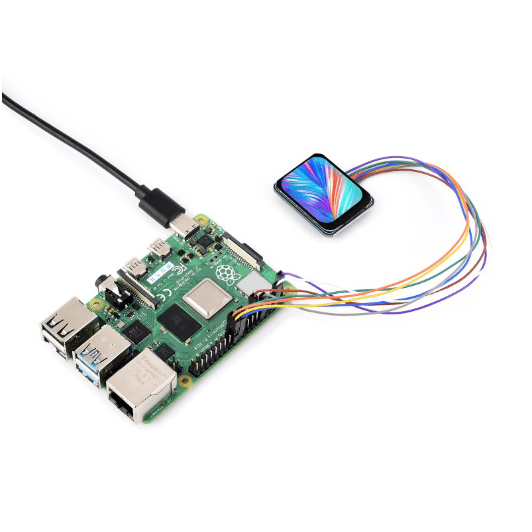

Connecting With Raspberry Pi
Connecting With Arduino Board
Connecting With STM32
█ Usage Example
* for reference only, please refer to the Package Content for the detailed part list.
█ Product Show
█ Dimensions
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.5inch LCD Module x1
- GH1.25 8PIN cable x1
Weight: 0.013 kg
