1.47inch LCD Display Module With Touch Panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color
SKU: 30499
Part No.: 1.47inch Touch LCD
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/1.47inch_Touch_LCD 1.47inch LCD Display Module With Touch panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

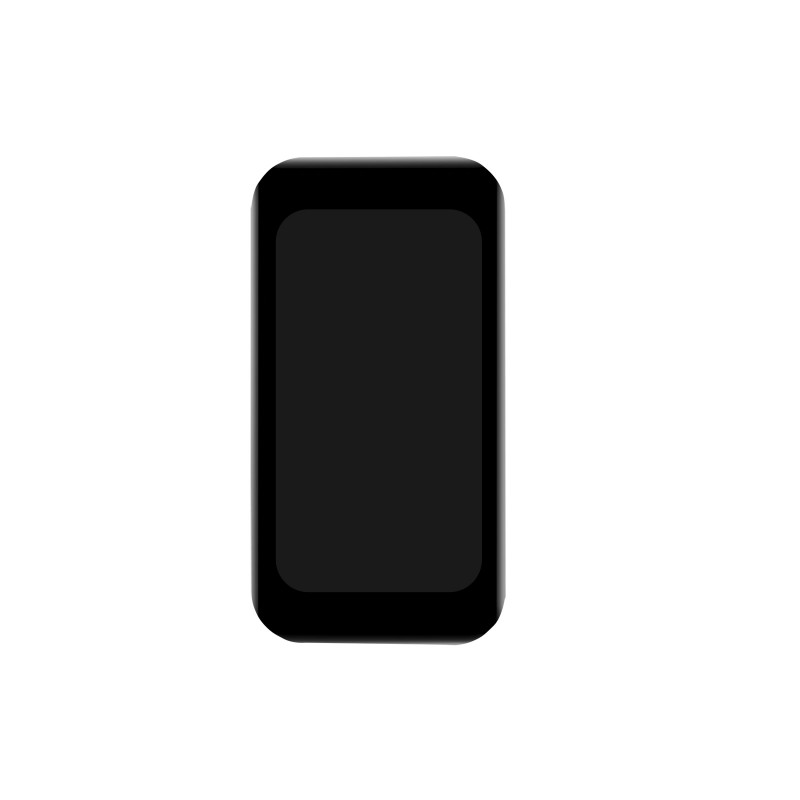

1.47inch Touch LCD Display Module
Embedded JD9853 driver and AXS5106L capacitive touch control chip
Comes with examples for Raspberry Pi, ESP32S3, Pico, Arduino, etc.
Features at a glance
- 172×320 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)
Specifications
Operating voltage |
3.3V / 5V |
Resolution |
172 × 320 pixels |
Display Driver |
JD9853 |
Touch Driver |
AXS5106L |
Display Interface |
4-wire SPI |
Touch Interface |
I2C |
DISPLAY PANEL |
IPS |
Touch Type |
Capacitive |
Display size |
17.75 × 32.93mm |
Module size |
22.05 × 41.69mm |

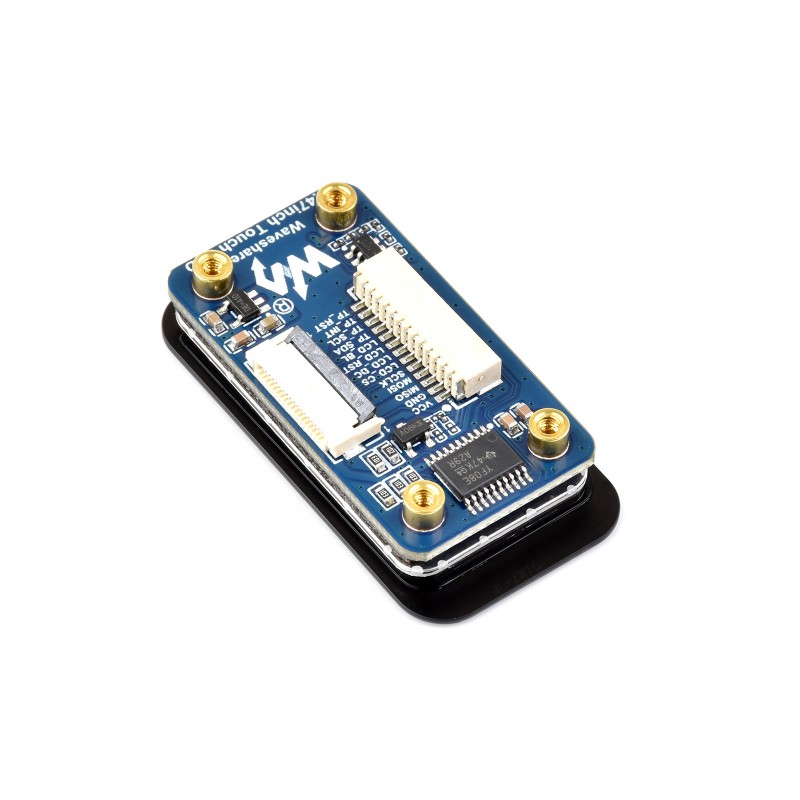

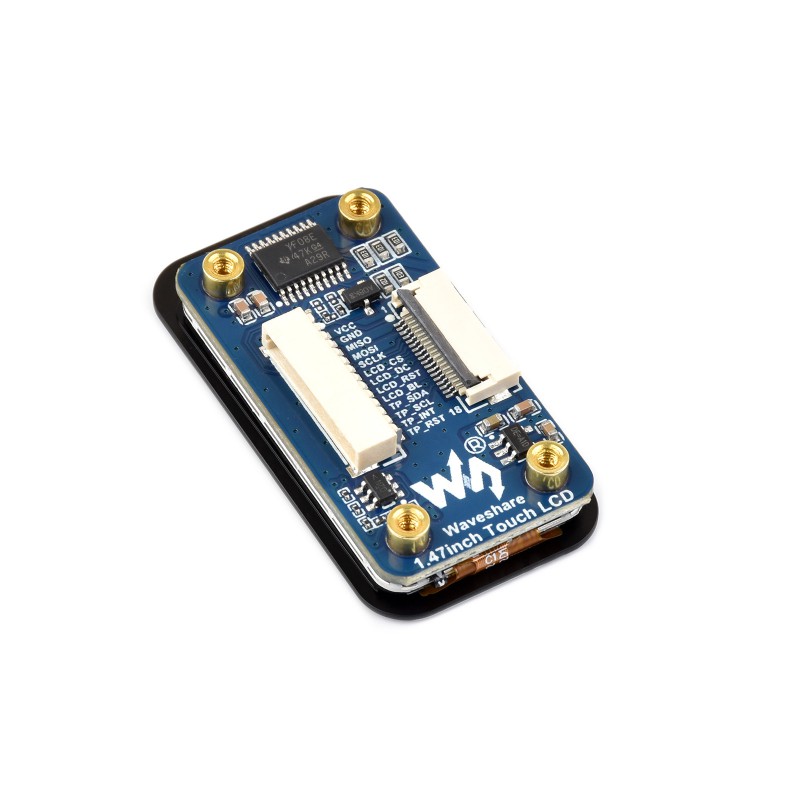

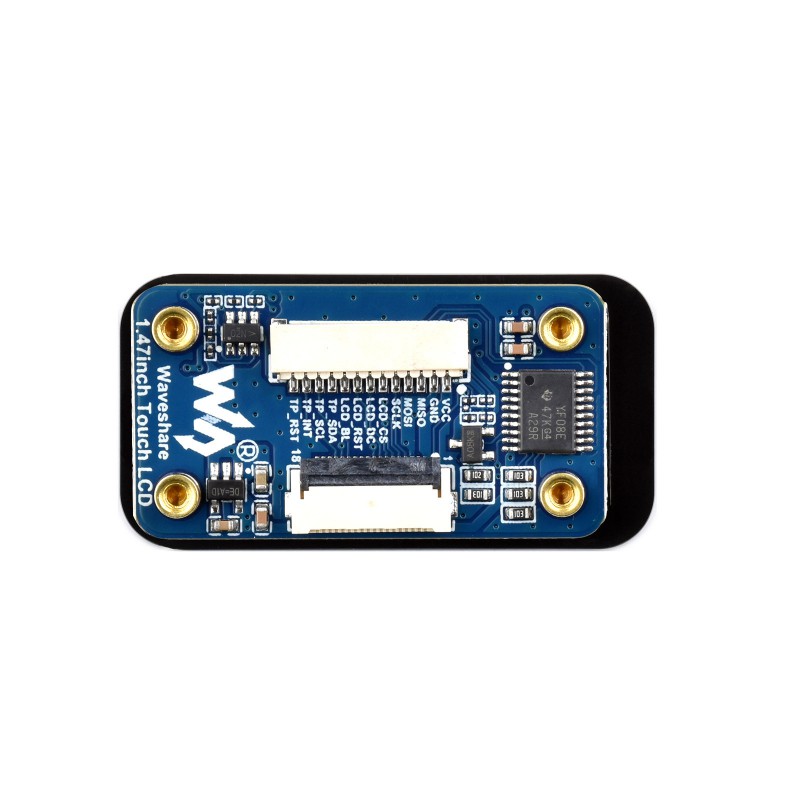

Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
SPI and I2C Control Interfaces
Embedded JD9853 driver and AXS5106L capacitive touch control chip
VCC |
Power (3.3V / 5V input) |
GND |
Ground |
MISO |
SPI MOSI pin |
MOSI |
SPI MOSI pin |
SCLK |
SPI Clock pin |
LCD_CS |
LCD Chip Selection, low active |
LCD_DC |
LCD Data/Command selection (high for data, low for command) |
LCD_RST |
LCD Reset, low active |
LCD_BL |
LCD Backlight |
TP_SDA |
TP Data pin |
TP_SCL |
TP Clock pin |
TP_INT |
TP Interrupt pin |
TP_RST |
TP Reset, low active |
Usage Example
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, the Raspberry Pi 5 and ESP32-S3 board are NOT included.
Outline dimensions
Package content:
Weight: 0.014 kg
- 1.47inch Touch LCD x1
- SH1.0 13PIN cable ~100mm x1
- FFC cable x1
