SKU: 13891
Part Number: 1.44inch LCD HAT
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.44inch_LCD_HAT 1.14inch LCD HAT

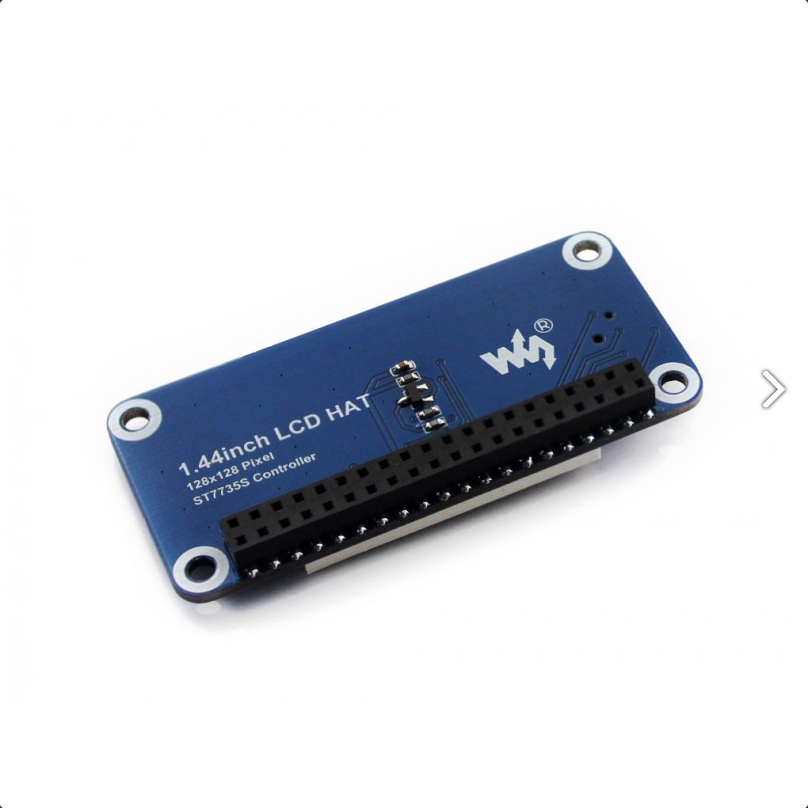

1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
-
█ Overview

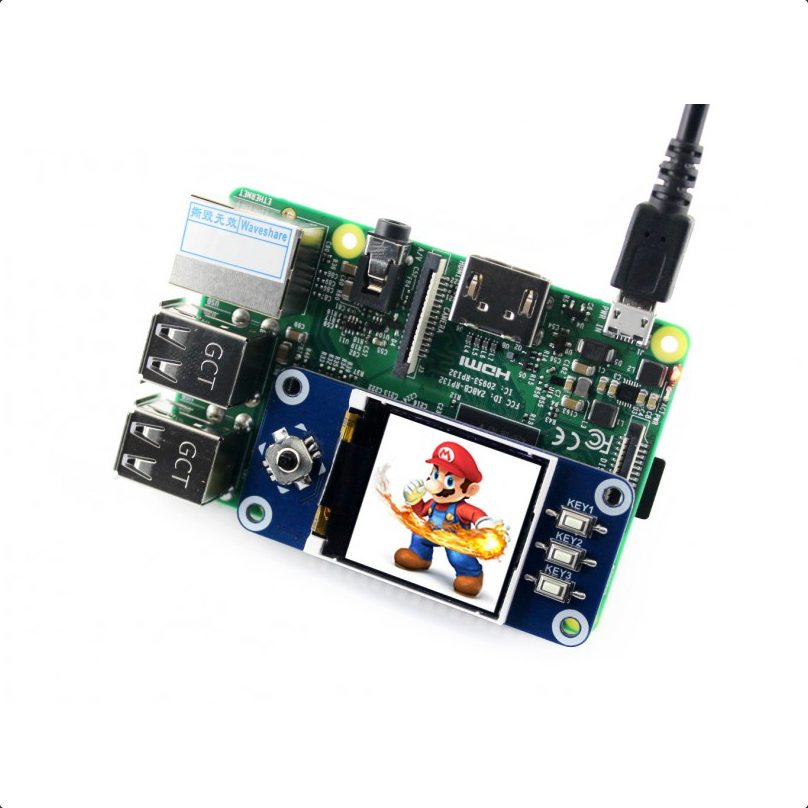

This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
-
█ Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

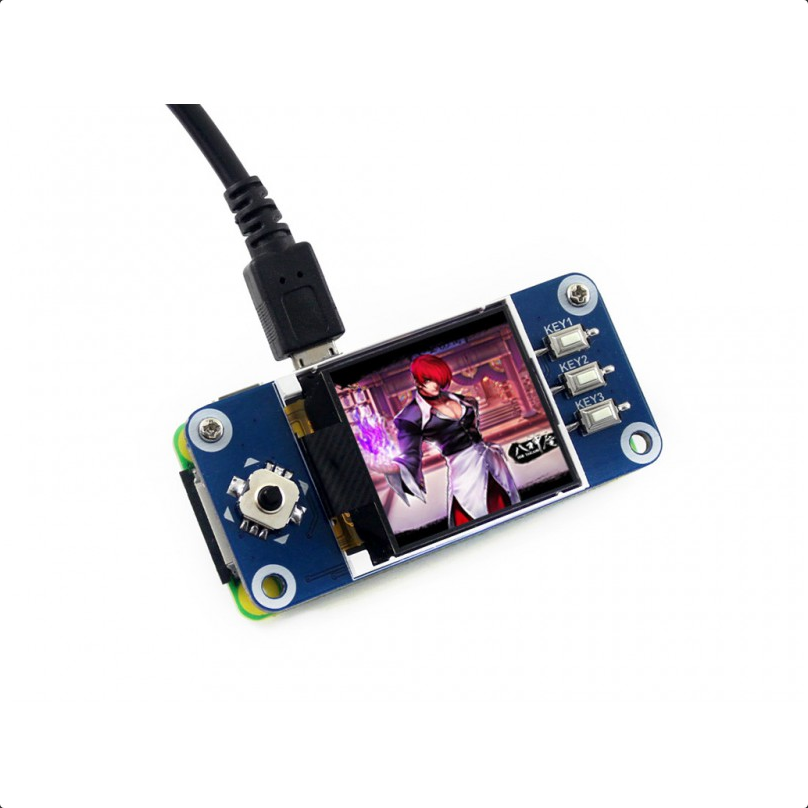

- 1x joystick (5-position), 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi)
-
█ Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 128x128
- Backlight: LED
- Operating voltage: 3.3V
-
█ Interface
SYMBOL |
Raspberry Pi PIN (BCM) |
DESCRIPTION |
KEY1 |
P21 |
Button 1/GPIO |
KEY2 |
P20 |
Button 2/GPIO |
KEY3 |
P16 |
Button 3/GPIO |
Joystick Up |
P6 |
Joystick Up |
Joystick Down |
P19 |
Joystick Down |
Joystick Left |
P5 |
Joystick Left |
Joystick Right |
P26 |
Joystick Right |
Joystick Press |
P13 |
Joystick Press |
SCLK |
P11/SCLK |
SPI clock input |
MOSI |
P10/MOSI |
SPI data input |
DC |
P25 |
Data/Command selection (high for data, low for command) |
CS |
P8/CE0 |
Chip selection, low active |
RST |
P27 |
Reset, low active |
BL |
P24 |
Backlight |
-
█ Dimensions
-
█ Package Content
- 1.44inch LCD HAT x1
- RPi screws pack (2pcs) x1
-
1. |
 |
2. |
 |
|
|
|
|
Weight: 0.013 kg
