SKU: 19650
Part Number: Pico-LCD-1.3

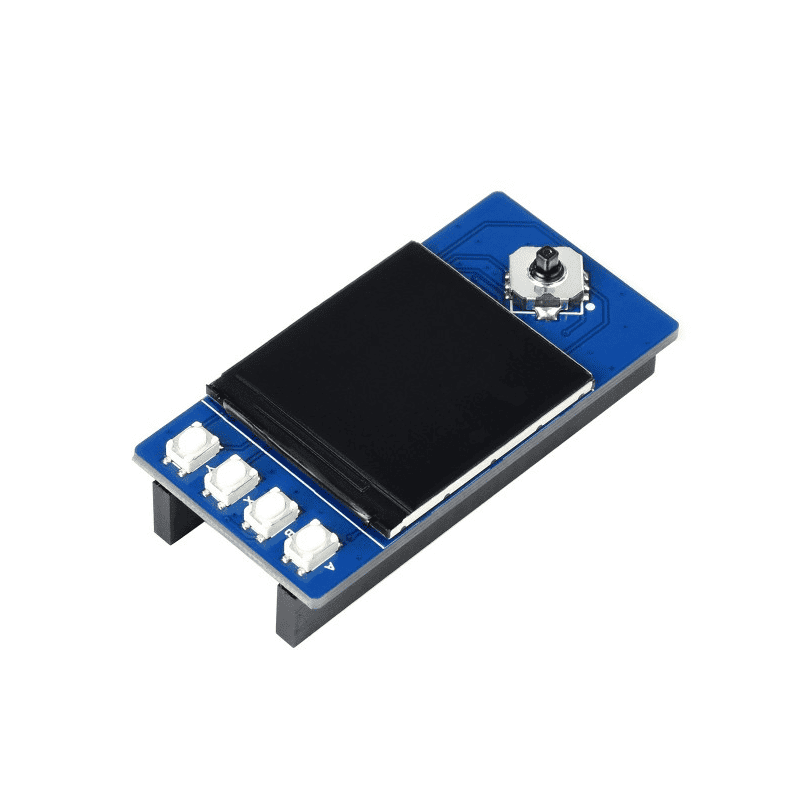

1.3inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, SPI Interface
1.3" LCD Display Module For Pico Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 1x joystick and 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
2.6 ~ 5.5V |
RESOLUTION |
240×240 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
23.40 × 23.40mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.0975 × 0.0975mm |
DRIVER |
ST7789 |
DIMENSIONS |
52.00 × 26.50mm |

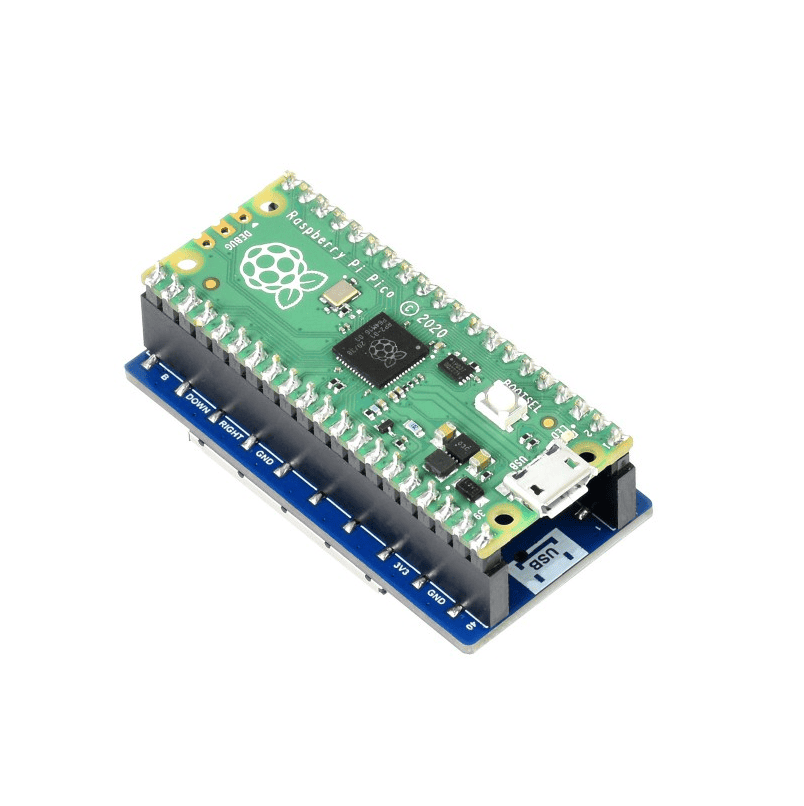

Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

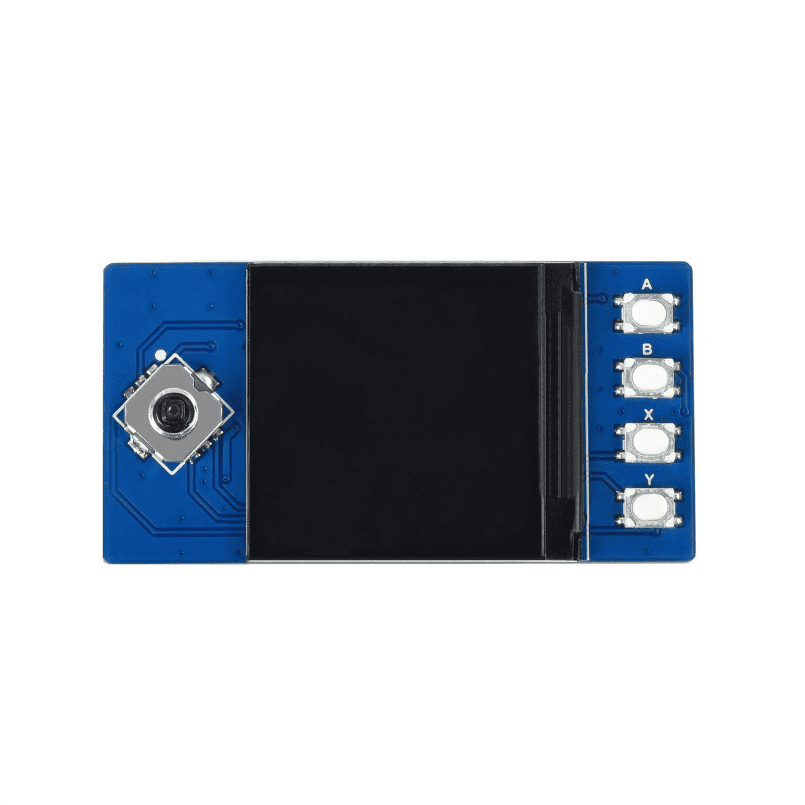

1x Joystick And 4x User Buttons For Easy Interacting

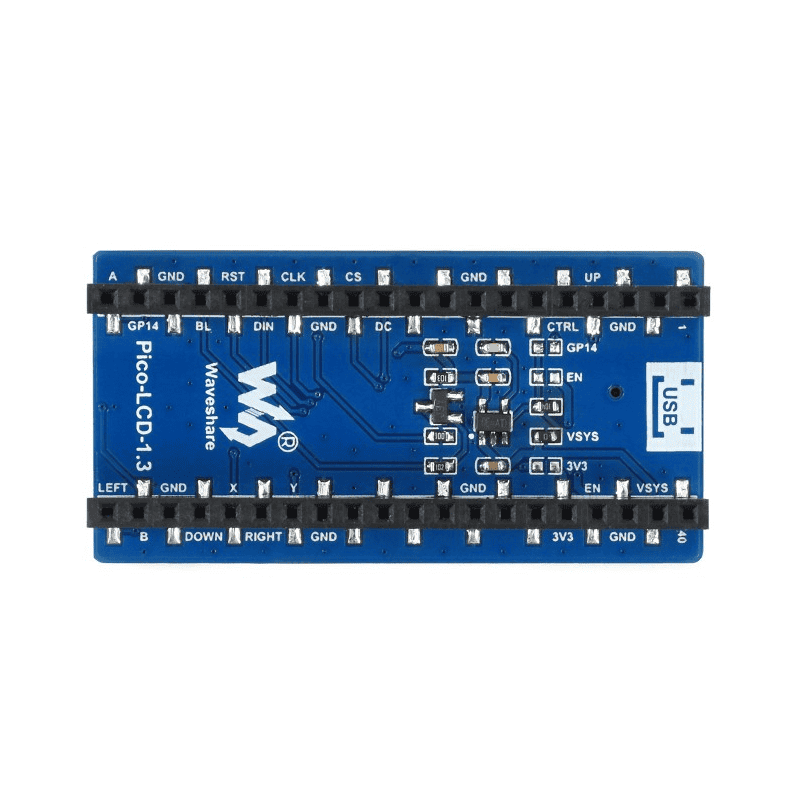

Raspberry Pi Pico is NOT included. Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.012 kg
- Pico-LCD-1.3 x1
1
WIKI: Pico-LCD-1.3
