SKU: 18179

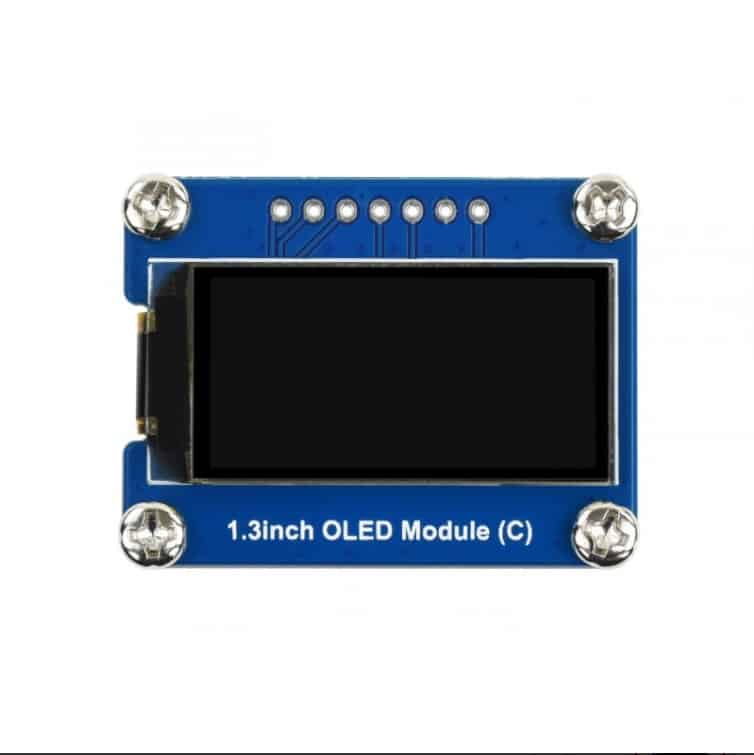

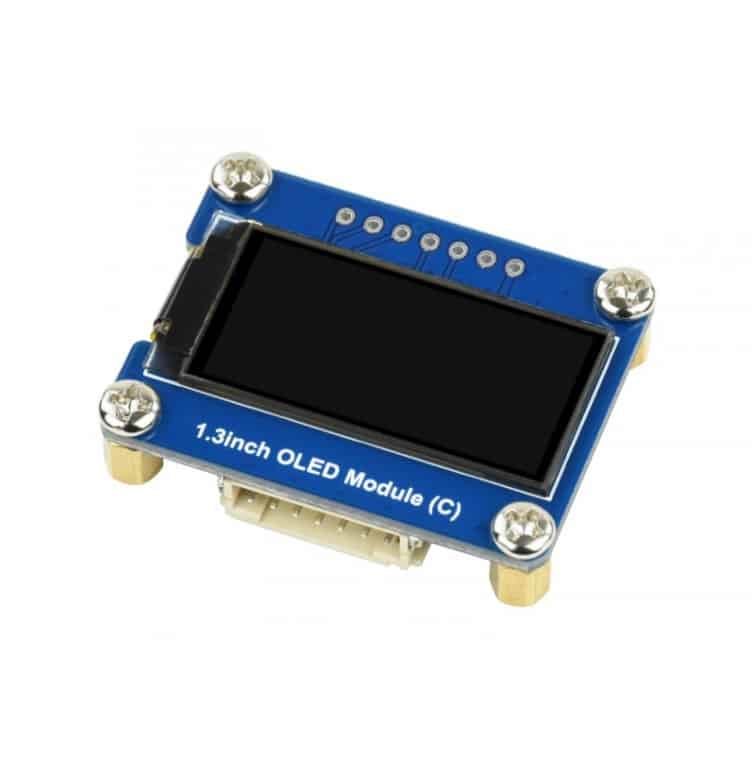

Part Name: 1.3inch OLED Module (C)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.3inch_OLED_Module_(C) 1.3inch OLED Module
1.3inch OLED Display Module, Black / White Display Color, 64×128 Resolution, SPI / I2C Interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Colour |
Interface |
Driver |
 |
 |
 |
 |
 |
1.3″ |
64×128 |
Black / White |
SPI / I2C |
SH1107 |
█ Overview
- Adopts both 4-wire SPI and I2C interfaces, better compatibility, high transmission rate
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
- Embedded SH1107 Driver, Using SPI / I2C Bus
- Comes with examples for Raspberry Pi, Arduino, STM32, etc.
█ Specifications
OPERATING VOLTAGE |
3.3V |
RESOLUTION |
64 × 128 pixels |
COMMUNICATION INTERFACE |
4-wire SPI, I2C |
DISPLAY SIZE |
14.70 × 29.42mm |
DISPLAY PANEL |
OLED |
PIXEL SIZE |
0.15 × 0.15mm |
DRIVER |
SH1107 |
DIMENSIONS |
30.0 × 39.5mm |

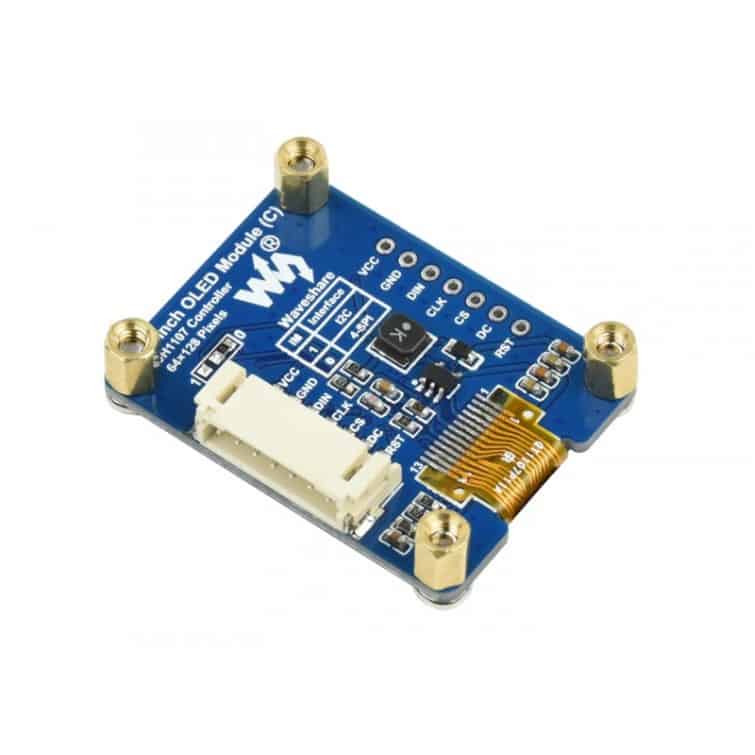

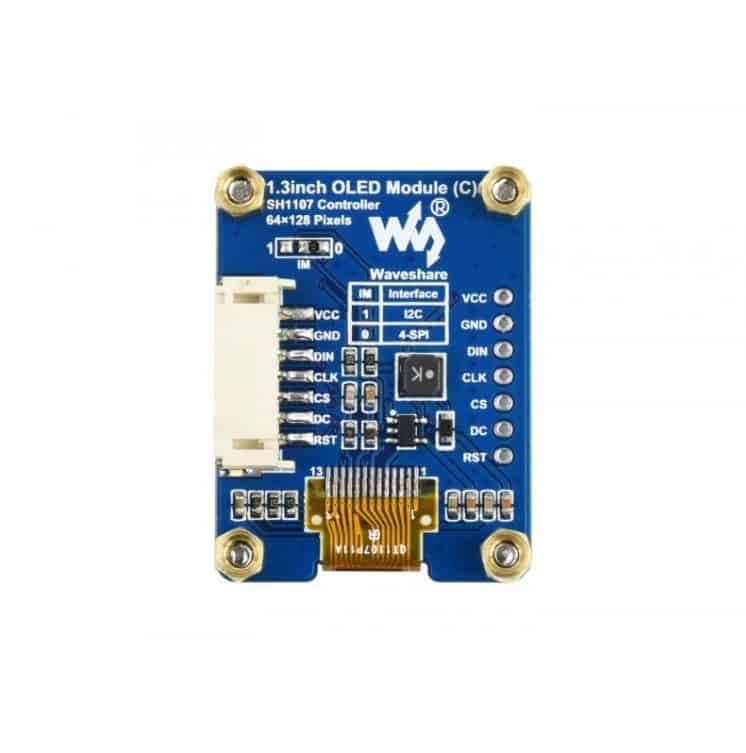

SPI Control Interface
Supports Controller Boards Like Raspberry Pi/Arduino/STM32
VCC |
Power (3.3V input) |
GND |
Ground |
DIN |
data input |
CLK |
clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
█ Hardware Connection

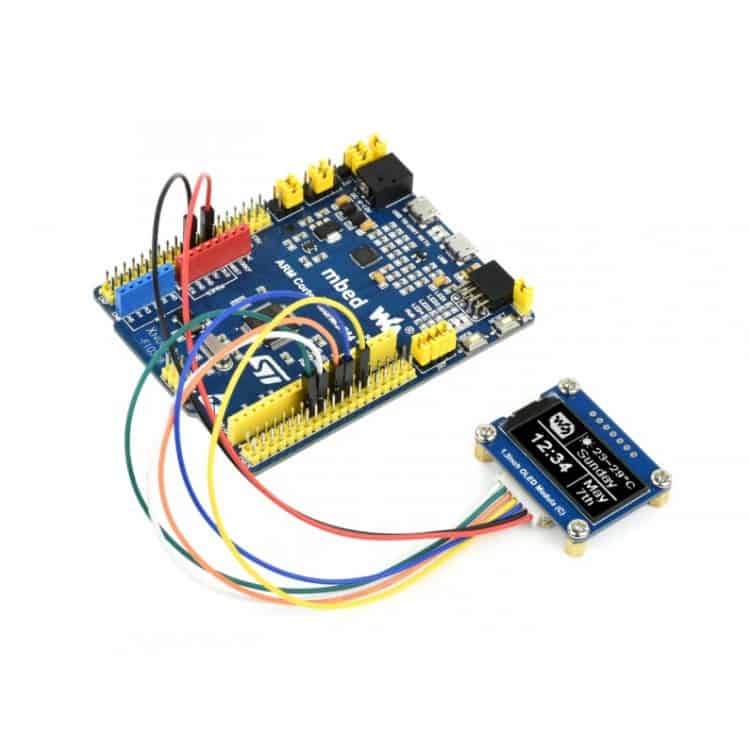

Connecting With Raspberry Pi
Connecting With Arduino Board
█ Example
█ Dimensions
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.3inch OLED Module (C) x1
- PH2.0 7PIN 20cm cable x1
Weight: 0.016 kg
