Part Name: 1.3inch OLED HAT
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.3inch_OLED_HAT 1.3 inch OLED HAT
1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Overview

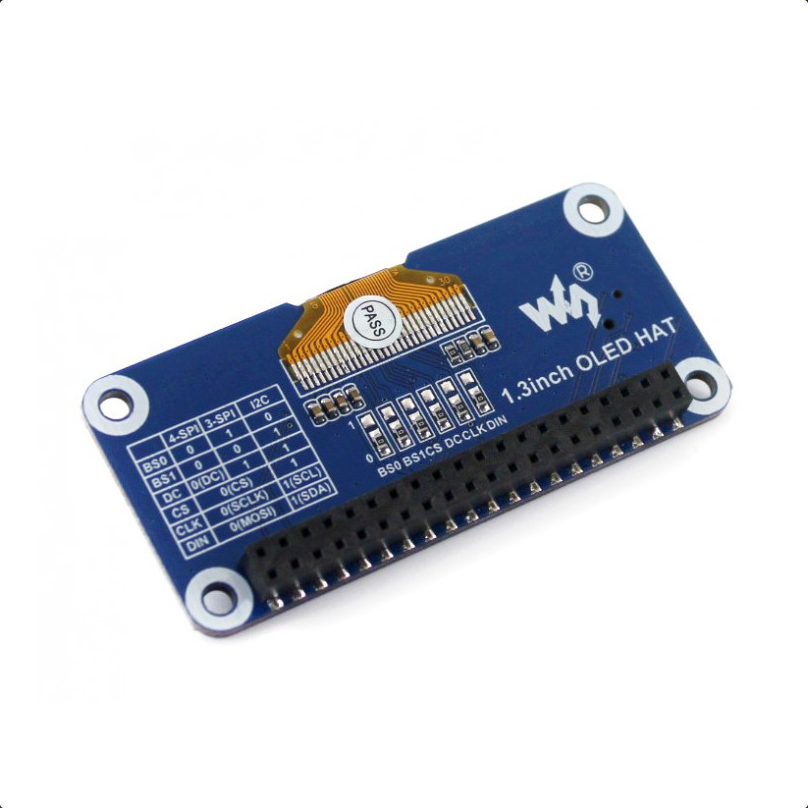

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.

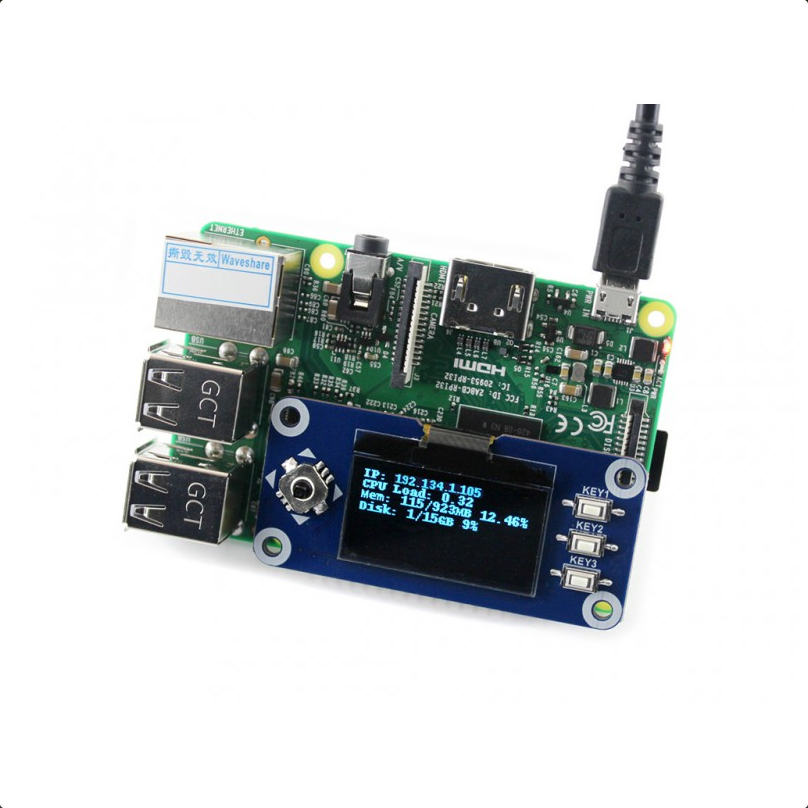

Trying to add a control interface for your Pi? This compact display would be the ideal choice.
█ Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
- 1x joystick (5-position), 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano)
█ Specifications
- Driver: SH1106
- Interface: 4-wire SPI, 3-wire SPI, I2C
- Display color: blue
- Resolution: 128x64
- Operating voltage: 3.3V
█ Interface
SYMBOL |
Raspberry Pi PIN (BCM) |
DESCRIPTION |
KEY1 |
P21 |
Button 1/GPIO |
KEY2 |
P20 |
Button 2/GPIO |
KEY3 |
P16 |
Button 3/GPIO |
Joystick Up |
P6 |
Joystick Up |
Joystick Down |
P19 |
Joystick Down |
Joystick Left |
P5 |
Joystick Left |
Joystick Right |
P26 |
Joystick Right |
Joystick Press |
P13 |
Joystick Press |
SCLK |
P11/SCLK |
SPI clock input |
MOSI |
P10/MOSI |
SPI data input |
DC |
P24 |
Data/Command selection (high for data, low for command) |
CS |
P8/CE0 |
Chip selection, low active |
RST |
P25 |
Reset, low active |
█ Dimensions
█ Package Content
1. |
 |
2. |
 |
|
|
|
|
- 1.3inch OLED HAT x1
- RPi screws pack (2pcs) x1
Weight: 0.012 kg
