SKU: 18231

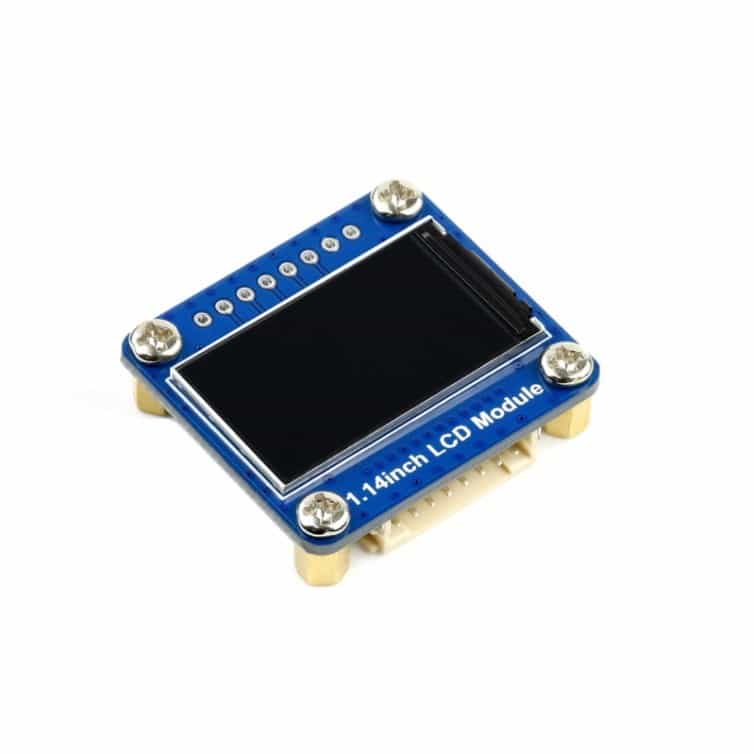

Part Name: 1.14inch LCD Module
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/1.3inch_LCD_HAT 1.14inch LCD Module
1.14inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×135 Resolution, SPI Interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
1.14″ |
240×135 |
SPI |
65K RGB |
ST7789 |
█ Overview
- Embedded ST7789 Driver, Using SPI Bus
- Comes with examples for Raspberry Pi, Arduino, STM32, etc.
- 240×135 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
█ Specifications
OPERATING VOLTAGE |
3.3V/5V |
RESOLUTION |
240 × 135 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
24.91 × 14.86mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.1101 × 0.1035mm |
DRIVER |
ST7789 |
DIMENSIONS |
35.00 × 32.00mm |
- Controlled Via SPI Bus
- Supports Controller Boards Like Raspberry Pi/Arduino/STM32

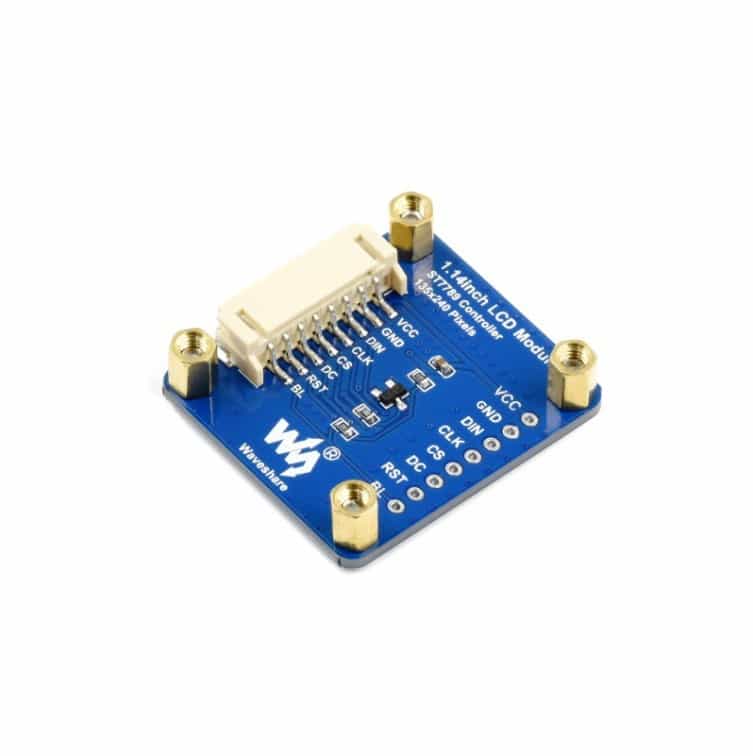

VCC |
Power (3.3V/5V input) |
GND |
Ground |
DIN |
SPI data input |
CLK |
SPI clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
BL |
Backlight |

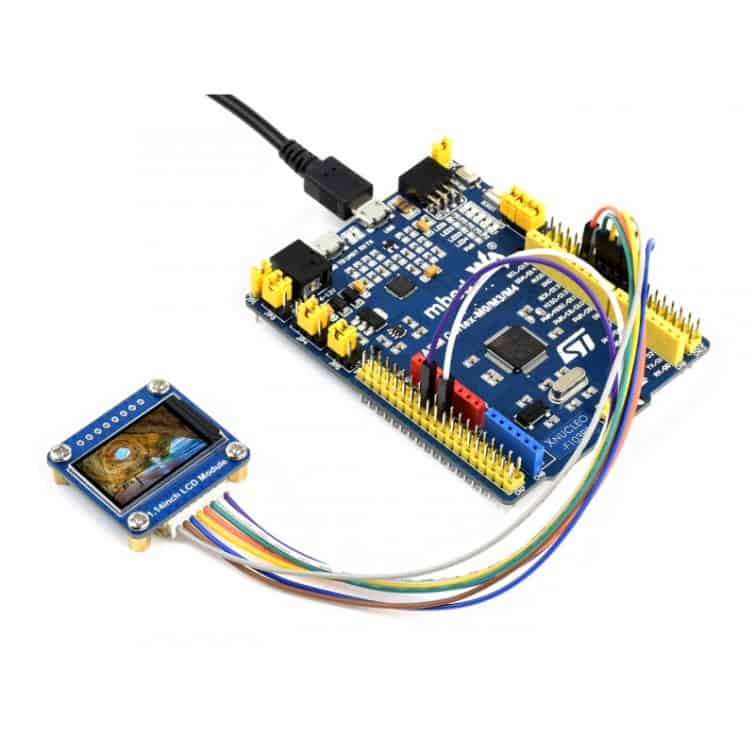

█ Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
█ Example
█ Dimensions
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
- 1.14inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
Weight: 0.017 kg
