SKU: 19653
Part Number: Pico-LCD-0.96
Korisne informacije:

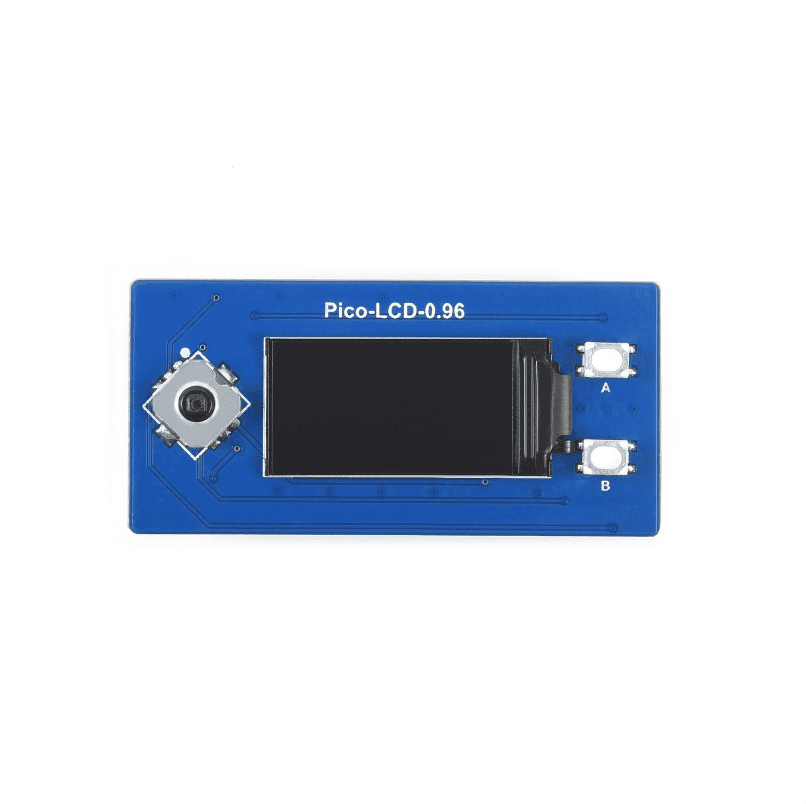

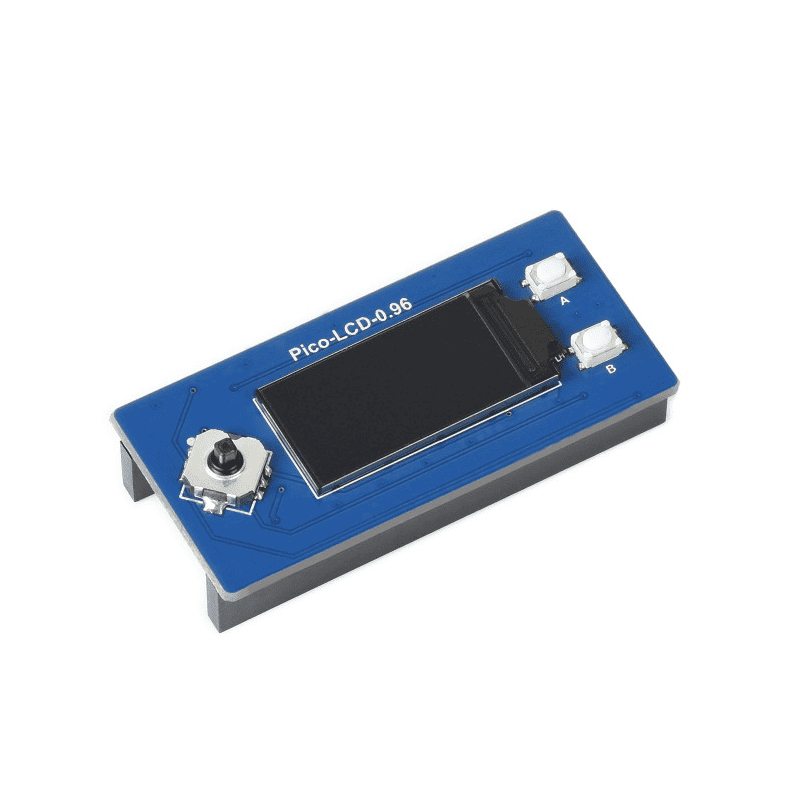

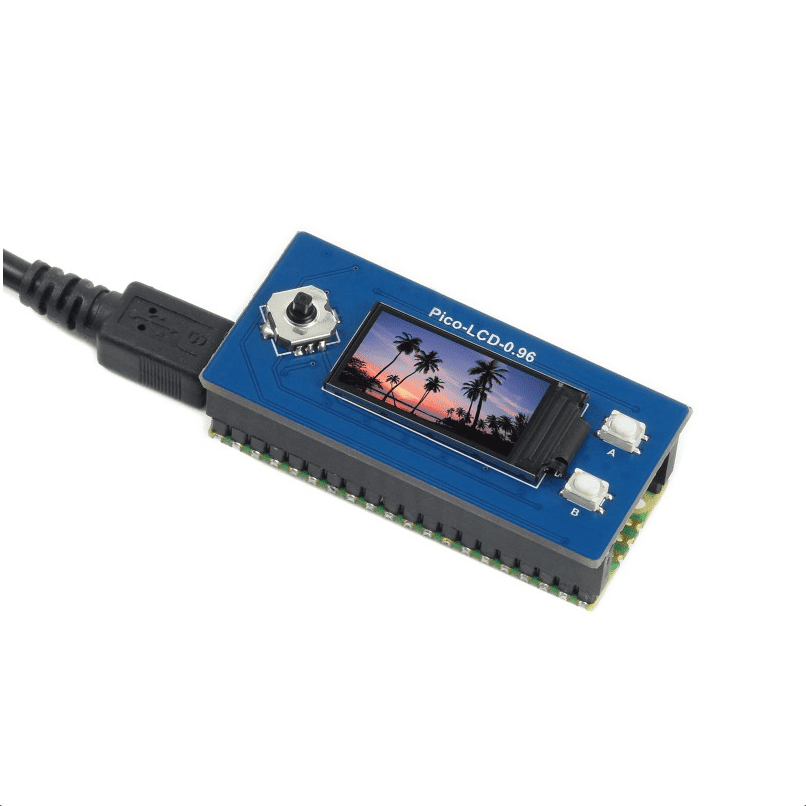

Pico-LCD-0.96 0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160×80 Pixels, SPI Interface
0.96" LCD Display Module For Pico Embedded ST7735S Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 160×80 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 1x joystick and 2x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
2.6 ~ 5.5V |
RESOLUTION |
160×80 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
21.70 × 10.80mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.1356 × 0.135mm |
DRIVER |
ST7735S |
DIMENSIONS |
52.00 × 25.00mm |

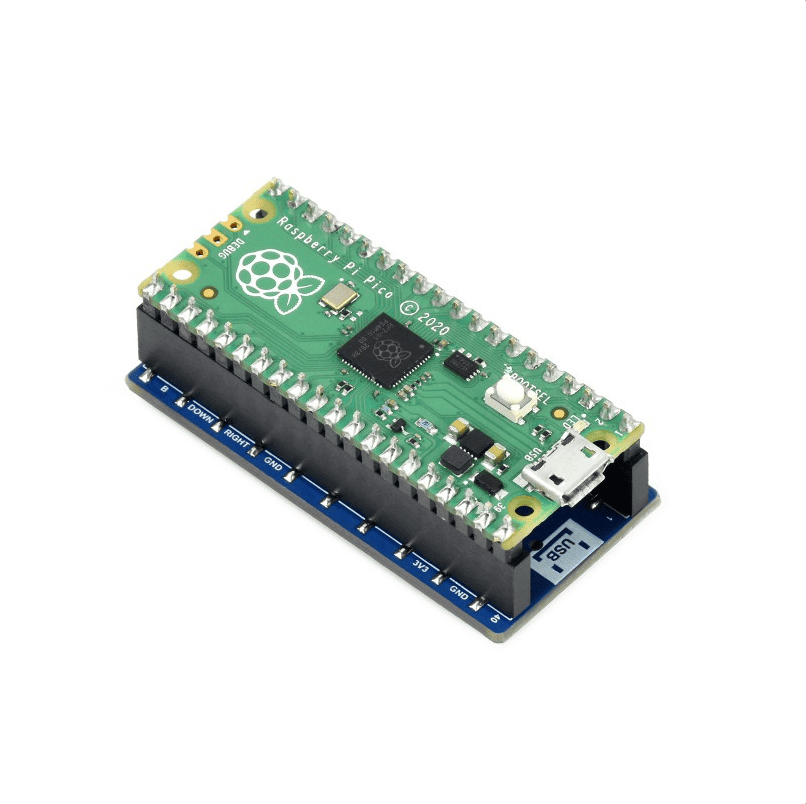

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
1x Joystick And 2x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included. Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.01 kg
- Pico-LCD-0.96 x1
