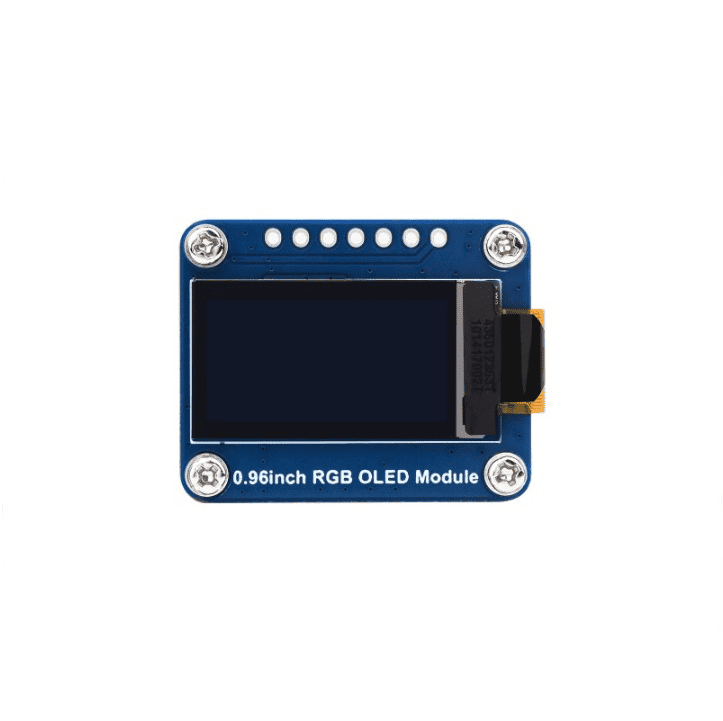

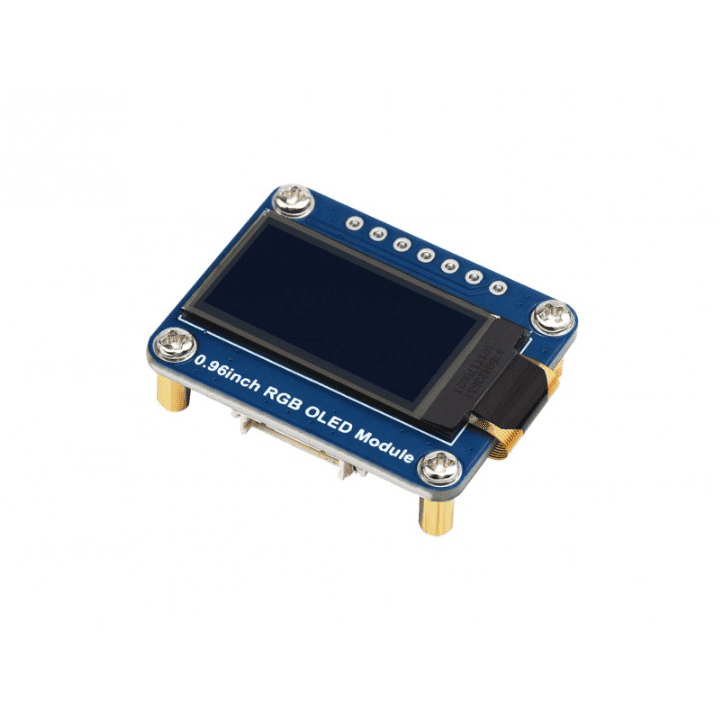

Part Number: 0.96inch RGB OLED Module
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/0.96inch_RGB_OLED_Module 0.96inch RGB OLED Module
0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface, Embedded SSD1357 Driver Chip, SPI Communication
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Colour |
Driver |
 |
 |
 |
 |
 |
0.96″ |
64×128 |
SPI |
65K RGB |
SSD1357 |
Display Panel |
|
|
|
|
 |
|
|
|
|
OLED |
|
|
|
|
█ Overview

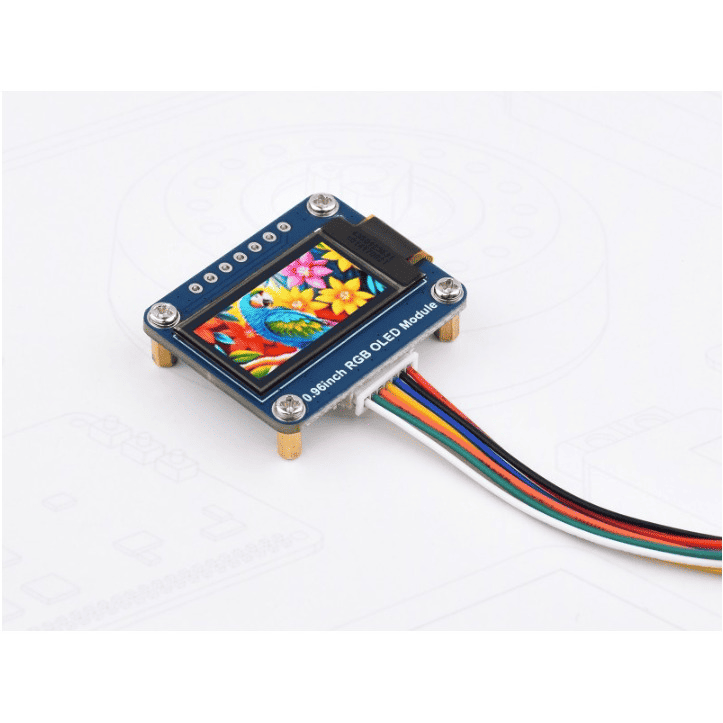

- 64×128 resolution OLED display, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
64 × 128 pixels |
COMMUNICATION INTERFACE |
3/4-wire SPI |
DISPLAY SIZE |
10.862 × 21.736mm |
DISPLAY PANEL |
OLED |
PIXEL SIZE |
0.0327 × 0.146mm |
DRIVER |
SSD1357 |
MODULE SIZE |
32.5 × 26.0mm |

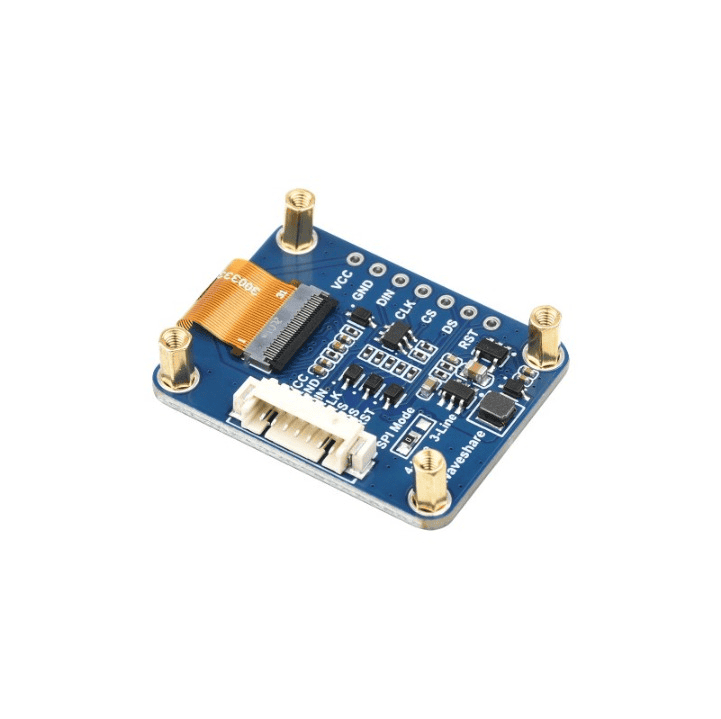

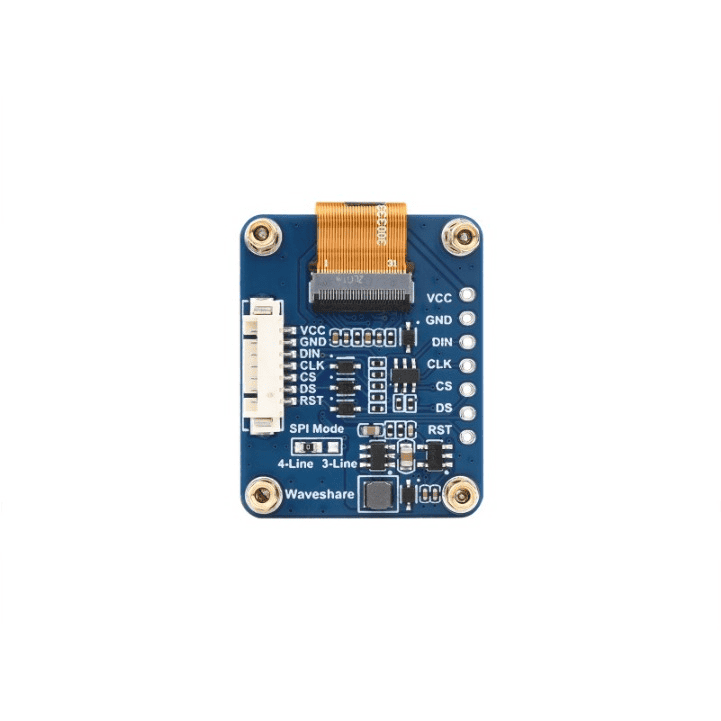

█ Control Interface
VCC |
Power (3.3V / 5V input) |
GND |
Ground |
DIN |
SPI data input |
CLK |
SPI clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
█ Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board

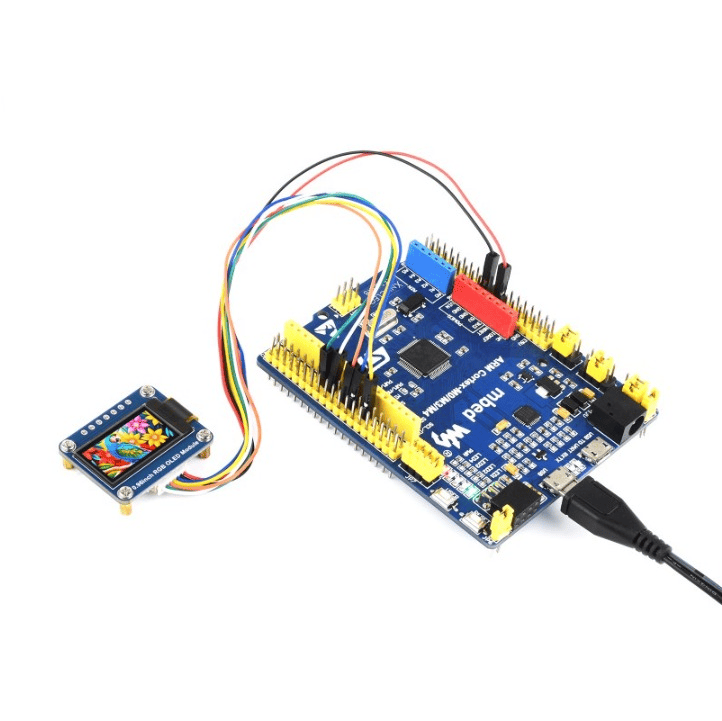

█ Usage Example
for reference only, the STM32 board is NOT included.
█ Product Show
█ Dimensions (mm)
-
█ Package Content
-
1. |
 |
2. |
 |
|
|
|
|
-
- 0.96inch RGB OLED Module x1
- GH1.25 7PIN cable x1
Weight: 0.009 kg
