SKU: 29380
Part No.: 0.71inch LCD Module
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/0.71inch_LCD_Module 0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors

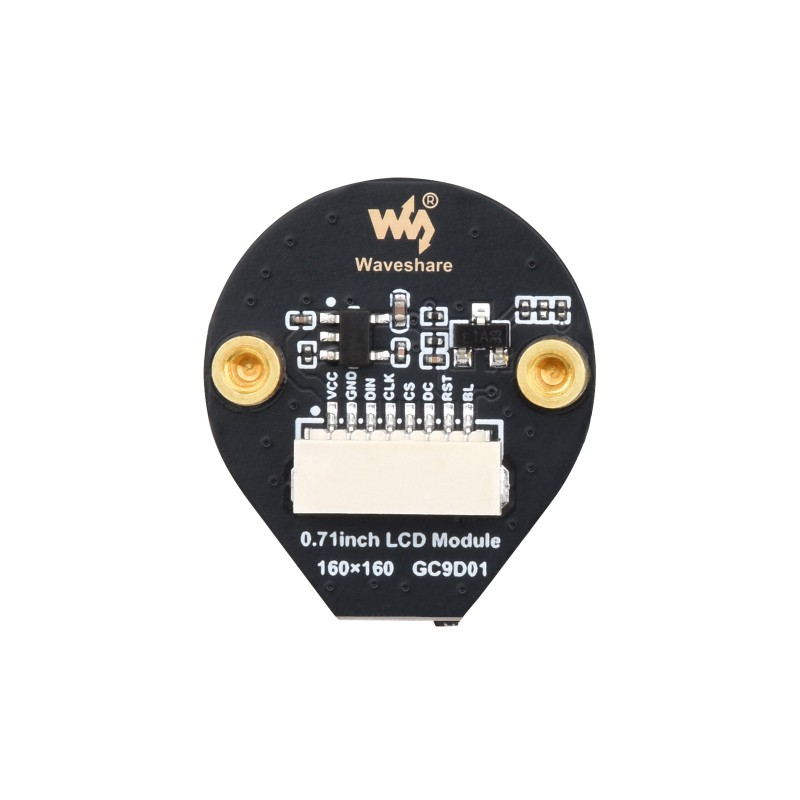

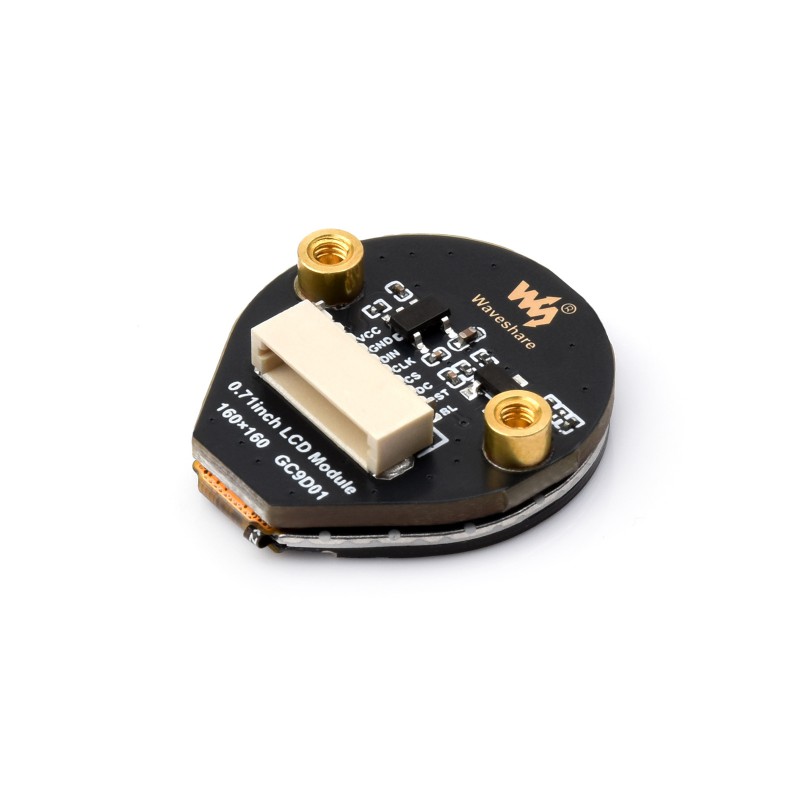

0.71inch LCD Display Module IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus
Features at a glance

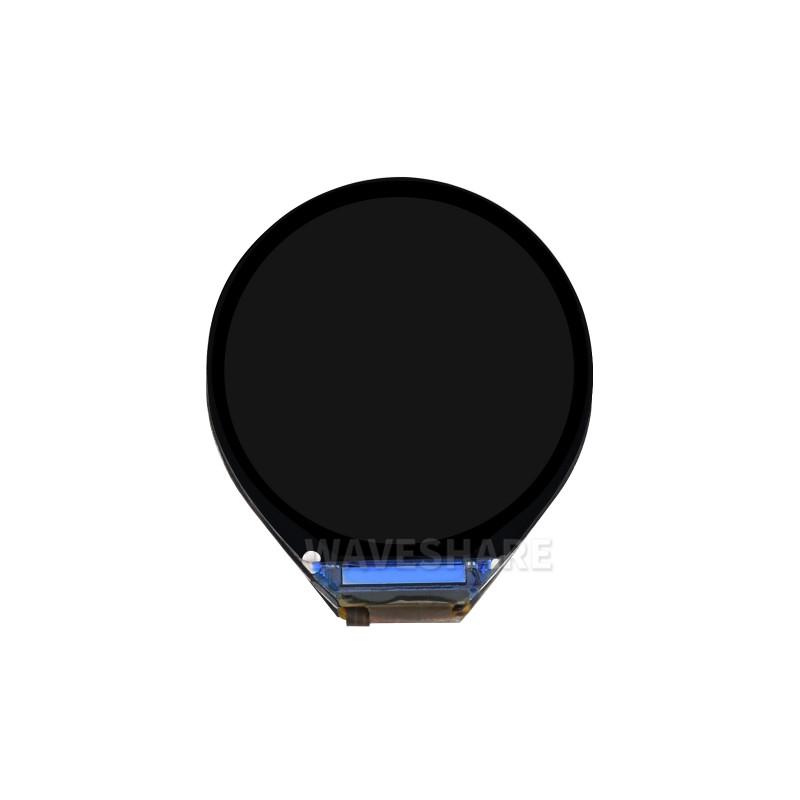

- Adopts 0.71inch round LCD display, IPS panel, wide viewing angle
- 160×160 resolution, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino
Specifications
Operating voltage |
3.3V / 5V |
Resolution |
160 × 160 pixels |
Communication Interface |
4-wire SPI |
Display size |
18 × 18 (mm) |
Display Panel |
IPS |
Pixel pitch |
37.5 × 112.5 (μm) |
Driver |
GC9D01 |
Dimensions |
20.12 × 22.3 (mm) |
Controlled via SPI Bus supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

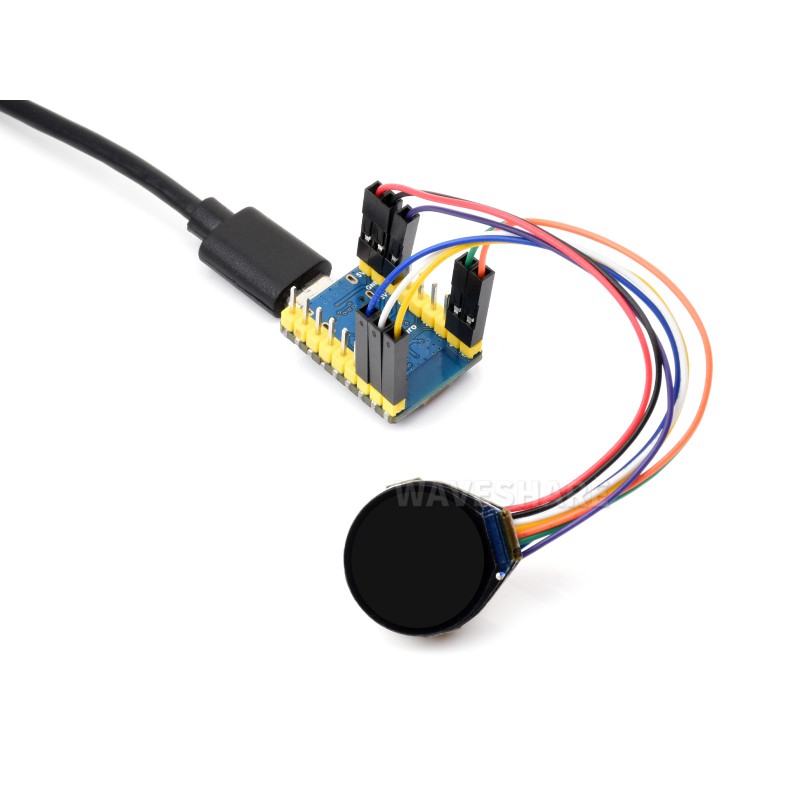

Hardware connection * for reference only, please refer to the Package Content for detailed part list
Outline dimensions
Package content: Weight: 0.007 kg
- 0.71inch LCD Module x1
- SH1.0 8PIN cable x1
- Convex lens x1
